cx::ToolImpl Class Reference
Core » Tool

Common functionality for Tool subclasses. More...

#include <cxToolImpl.h>

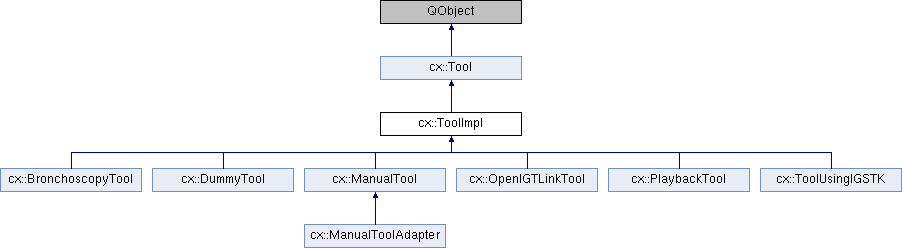

Inheritance diagram for cx::ToolImpl:
cx::Tool cx::BronchoscopyTool cx::DummyTool cx::ManualTool cx::OpenIGTLinkTool cx::PlaybackTool cx::ToolUsingIGSTK cx::ManualToolAdapter

Public Member Functions

 ToolImpl (const QString &uid="", const QString &name="")

virtual ~ToolImpl ()

virtual TimedTransformMapPtr getPositionHistory ()
 get historical positions More...

virtual TimedTransformMap getSessionHistory (double startTime, double stopTime)

virtual Transform3D get_prMt () const

virtual ToolPtr getBaseTool ()

virtual ToolPositionMetadata getMetadata () const

virtual const std::map< double, ToolPositionMetadata > & getMetadataHistory ()

virtual double getTooltipOffset () const

virtual void setTooltipOffset (double val)

virtual void resetTrackingPositionFilter (TrackingPositionFilterPtr filter)

virtual bool isNull ()

virtual void addXml (QDomNode &dataNode)

virtual void parseXml (QDomNode &dataNode)

virtual vtkPolyDataPtr getGraphicsPolyData () const
 get geometric 3D description More...

virtual bool hasReferencePointWithId (QString id)

- Public Member Functions inherited from cx::Tool
 Tool (const QString &uid="", const QString &name="")

virtual ~Tool ()

virtual bool hasType (Type type) const

virtual bool getVisible () const =0

virtual bool isInitialized () const

virtual QString getUid () const =0

virtual QString getName () const =0

virtual bool isCalibrated () const =0
 a tool may not be calibrated, then no tracking is allowed More...

virtual Transform3D getCalibration_sMt () const =0
 get the calibration transform from tool space to sensor space (where the spheres or similar live) More...

virtual double getTimestamp () const =0
 latest valid timestamp for the position matrix. 0 means indeterminate (for f.ex. manual tools) More...

virtual void setVisible (bool vis)=0
 if available for this type, set visibility More...


Protected Member Functions

virtual void set_prMt (const Transform3D &prMt, double timestamp)
 if available for this type, set pos, ts<0 means use current time More...

void createToolGraphic ()

virtual std::set< Type > getTypes () const

virtual std::map< QString, Vector3D > getReferencePoints () const

virtual ToolFileParser::ToolInternalStructurePtr getToolFileToolStructure () const


Protected Attributes

TimedTransformMapPtr mPositionHistory

Transform3D m_prMt
 the transform from the tool to the patient reference More...

TrackingPositionFilterPtr mTrackingPositionFilter

std::map< double, ToolPositionMetadata > mMetadata

vtkPolyDataPtr mPolyData
 the polydata used to represent the tool graphically More...

- Protected Attributes inherited from cx::Tool
QString mUid

QString mName


Additional Inherited Members

- Public Types inherited from cx::Tool
enum  State { tsNONE =0, tsCONFIGURED, tsINITIALIZED, tsTRACKING }

enum  Type {
  TOOL_NONE, TOOL_REFERENCE, TOOL_MANUAL, TOOL_POINTER,
  TOOL_US_PROBE, TOOL_MICROSCOPE
}

- Signals inherited from cx::Tool
void toolTransformAndTimestamp (Transform3D matrix, double timestamp)

void toolVisible (bool visible)

void tooltipOffset (double offset)

void toolProbeSector ()

void tps (int)

- Static Public Member Functions inherited from cx::Tool
static vtkPolyDataPtr createDefaultPolyDataCone ()

static ToolPtr getNullObject ()


Detailed Description

Common functionality for Tool subclasses.

Date
2014-02-21
Author
christiana

Definition at line 30 of file cxToolImpl.h.

Constructor & Destructor Documentation

◆ ToolImpl()

cx::ToolImpl::ToolImpl ( const QString &  uid = "",
const QString &  name = ""
)
explicit

Definition at line 24 of file cxToolImpl.cpp.

◆ ~ToolImpl()

cx::ToolImpl::~ToolImpl ( )
virtual

Definition at line 33 of file cxToolImpl.cpp.

Member Function Documentation

◆ addXml()

virtual void cx::ToolImpl::addXml ( QDomNode &  dataNode)
inlinevirtual

Reimplemented in cx::ToolUsingIGSTK.

Definition at line 51 of file cxToolImpl.h.

◆ createToolGraphic()

void cx::ToolImpl::createToolGraphic ( )
protected

Definition at line 122 of file cxToolImpl.cpp.

◆ get_prMt()

Transform3D cx::ToolImpl::get_prMt ( ) const
virtual

Implements cx::Tool.

Reimplemented in cx::BronchoscopyTool, and cx::PlaybackTool.

Definition at line 92 of file cxToolImpl.cpp.

◆ getBaseTool()

ToolPtr cx::ToolImpl::getBaseTool ( )
virtual

Implements cx::Tool.

Reimplemented in cx::BronchoscopyTool.

Definition at line 97 of file cxToolImpl.cpp.

◆ getGraphicsPolyData()

vtkPolyDataPtr cx::ToolImpl::getGraphicsPolyData ( ) const
virtual

get geometric 3D description

Implements cx::Tool.

Reimplemented in cx::BronchoscopyTool, cx::ManualTool, cx::ManualToolAdapter, and cx::PlaybackTool.

Definition at line 140 of file cxToolImpl.cpp.

◆ getMetadata()

ToolPositionMetadata cx::ToolImpl::getMetadata ( ) const
virtual

Implements cx::Tool.

Definition at line 53 of file cxToolImpl.cpp.

◆ getMetadataHistory()

const std::map< double, ToolPositionMetadata > & cx::ToolImpl::getMetadataHistory ( )
virtual

Implements cx::Tool.

Definition at line 60 of file cxToolImpl.cpp.

◆ getPositionHistory()

TimedTransformMapPtr cx::ToolImpl::getPositionHistory ( )
virtual

get historical positions

Implements cx::Tool.

Reimplemented in cx::BronchoscopyTool, and cx::PlaybackTool.

Definition at line 78 of file cxToolImpl.cpp.

◆ getReferencePoints()

std::map< QString, Vector3D > cx::ToolImpl::getReferencePoints ( ) const
protectedvirtual

Reimplemented in cx::DummyTool, cx::BronchoscopyTool, cx::ManualTool, cx::PlaybackTool, and cx::ManualToolAdapter.

Definition at line 150 of file cxToolImpl.cpp.

◆ getSessionHistory()

TimedTransformMap cx::ToolImpl::getSessionHistory ( double  startTime,
double  stopTime
)
virtual

Implements cx::Tool.

Reimplemented in cx::BronchoscopyTool, and cx::PlaybackTool.

Definition at line 83 of file cxToolImpl.cpp.

◆ getToolFileToolStructure()

virtual ToolFileParser::ToolInternalStructurePtr cx::ToolImpl::getToolFileToolStructure ( ) const
inlineprotectedvirtual

Reimplemented in cx::ToolUsingIGSTK, and cx::OpenIGTLinkTool.

Definition at line 68 of file cxToolImpl.h.

◆ getTooltipOffset()

double cx::ToolImpl::getTooltipOffset ( ) const
virtual

Reimplemented in cx::ToolUsingIGSTK, cx::BronchoscopyTool, cx::OpenIGTLinkTool, cx::ManualToolAdapter, and cx::PlaybackTool.

Definition at line 65 of file cxToolImpl.cpp.

◆ getTypes()

std::set< Tool::Type > cx::ToolImpl::getTypes ( ) const
protectedvirtual

Implements cx::Tool.

Reimplemented in cx::DummyTool, cx::BronchoscopyTool, cx::ManualTool, cx::ManualToolAdapter, and cx::PlaybackTool.

Definition at line 38 of file cxToolImpl.cpp.

◆ hasReferencePointWithId()

bool cx::ToolImpl::hasReferencePointWithId ( QString  id)
virtual

Reimplemented from cx::Tool.

Reimplemented in cx::BronchoscopyTool, and cx::PlaybackTool.

Definition at line 145 of file cxToolImpl.cpp.

◆ isNull()

virtual bool cx::ToolImpl::isNull ( )
inlinevirtual

Implements cx::Tool.

Definition at line 49 of file cxToolImpl.h.

◆ parseXml()

virtual void cx::ToolImpl::parseXml ( QDomNode &  dataNode)
inlinevirtual

Reimplemented in cx::ToolUsingIGSTK.

Definition at line 52 of file cxToolImpl.h.

◆ resetTrackingPositionFilter()

void cx::ToolImpl::resetTrackingPositionFilter ( TrackingPositionFilterPtr  filter)
virtual

Implements cx::Tool.

Definition at line 117 of file cxToolImpl.cpp.

◆ set_prMt()

void cx::ToolImpl::set_prMt ( const Transform3D &  prMt,
double  timestamp
)
protectedvirtual

if available for this type, set pos, ts<0 means use current time

Implements cx::Tool.

Reimplemented in cx::ManualTool, cx::ToolUsingIGSTK, cx::BronchoscopyTool, and cx::PlaybackTool.

Definition at line 102 of file cxToolImpl.cpp.

◆ setTooltipOffset()

void cx::ToolImpl::setTooltipOffset ( double  val)
virtual

Reimplemented in cx::ToolUsingIGSTK, cx::BronchoscopyTool, cx::OpenIGTLinkTool, cx::ManualToolAdapter, and cx::PlaybackTool.

Definition at line 70 of file cxToolImpl.cpp.

Member Data Documentation

◆ m_prMt

Transform3D cx::ToolImpl::m_prMt
protected

the transform from the tool to the patient reference

Definition at line 61 of file cxToolImpl.h.

◆ mMetadata

std::map<double, ToolPositionMetadata> cx::ToolImpl::mMetadata
protected

Definition at line 63 of file cxToolImpl.h.

◆ mPolyData

vtkPolyDataPtr cx::ToolImpl::mPolyData
protected

the polydata used to represent the tool graphically

Definition at line 64 of file cxToolImpl.h.

◆ mPositionHistory

TimedTransformMapPtr cx::ToolImpl::mPositionHistory
protected

Definition at line 60 of file cxToolImpl.h.

◆ mTrackingPositionFilter

TrackingPositionFilterPtr cx::ToolImpl::mTrackingPositionFilter
protected

Definition at line 62 of file cxToolImpl.h.
