Interface to a tool, i.e. a pointer, US probe or similar. More...

#include <cxTool.h>

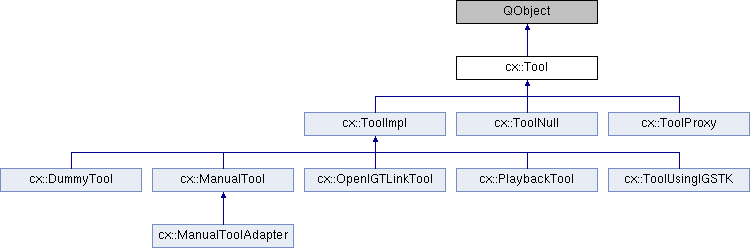

Inheritance diagram for cx::Tool:

Public Types
enum	State { tsNONE =0, tsCONFIGURED, tsINITIALIZED, tsTRACKING }

enum	Type { TOOL_NONE, TOOL_REFERENCE, TOOL_MANUAL, TOOL_POINTER, TOOL_US_PROBE, TOOL_MICROSCOPE }

Signals
void	toolTransformAndTimestamp (Transform3D matrix, double timestamp)

void	toolVisible (bool visible)

void	tooltipOffset (double offset)

void	toolProbeSector ()

void	tps (int)

Public Member Functions
	Tool (const QString &uid="", const QString &name="")

virtual	~Tool ()

virtual ToolPositionMetadata	getMetadata () const =0

virtual const std::map< double, ToolPositionMetadata > &	getMetadataHistory ()=0

virtual std::set< Type >	getTypes () const =0

virtual bool	hasType (Type type) const

virtual vtkPolyDataPtr	getGraphicsPolyData () const =0
	get geometric 3D description More...

virtual TimedTransformMapPtr	getPositionHistory ()=0
	get historical positions More...

virtual bool	getVisible () const =0

virtual bool	isInitialized () const

virtual QString	getUid () const =0

virtual QString	getName () const =0

virtual bool	isCalibrated () const =0
	a tool may not be calibrated, then no tracking i allowed More...

virtual Transform3D	getCalibration_sMt () const =0
	get the calibration transform from tool space to sensor space (where the spheres or similar live) More...

virtual void	setCalibration_sMt (Transform3D calibration)
	requests to use the calibration and replaces the tools calibration file More...

virtual ProbePtr	getProbe () const
	additional information if the tool represents an US Probe. Extends getProbeSector() More...

virtual double	getTimestamp () const =0
	latest valid timestamp for the position matrix. 0 means indeterminate (for f.ex. manual tools) More...

virtual void	printSelf (std::ostream &os, Indent indent)
	dump internal debug data More...

virtual double	getTooltipOffset () const
	get a virtual offset extending from the tool tip. More...

virtual void	setTooltipOffset (double val)
	set a virtual offset extending from the tool tip. More...

virtual std::map< int, Vector3D >	getReferencePoints () const
	Get the optional reference points from this tool. More...

virtual bool	hasReferencePointWithId (int id)

virtual TimedTransformMap	getSessionHistory (double startTime, double stopTime)=0

virtual Transform3D	get_prMt () const =0

virtual void	resetTrackingPositionFilter (TrackingPositionFilterPtr filter)=0

virtual void	set_prMt (const Transform3D &prMt, double timestamp=-1)=0
	if available for this type, set pos, ts<0 means use current time More...

virtual void	setVisible (bool vis)=0
	if available for this type, set visibility More...

virtual bool	isNull ()=0

Static Public Member Functions
static vtkPolyDataPtr	createDefaultPolyDataCone ()

static ToolPtr	getNullObject ()

Protected Attributes
QString	mUid

QString	mName

Detailed Description

Interface to a tool, i.e. a pointer, US probe or similar.

The tool position is defined in its own space (as given by the tool's transform) as follows:

the origin is the tool tip
- the z axis points in the acting direction (us probe ray dir or pointing dir).
the y axis points to the left side of the tool.
This means that in the case of an optical tracking frame, the tracking spheres points in the negative x axis

Definition at line 82 of file cxTool.h.

Member Enumeration Documentation

enum cx::Tool::State

Enumerates the state of the tool

Enumerator
tsNONE	not available
tsCONFIGURED	configured with basic info
tsINITIALIZED	connected to hardware, if any, ready to use
tsTRACKING	emitting tracking data

Definition at line 93 of file cxTool.h.

enum cx::Tool::Type

Enumerates the general type of tool.

Enumerator
TOOL_NONE
TOOL_REFERENCE	Reference tool.
TOOL_MANUAL	Representation of a mouse/keyboard-controlled virtual tool.
TOOL_POINTER	Navigation pointer. Pointing functionality such as tool offset.
TOOL_US_PROBE	Ultrasond probe. The tool has a Probe subinterface with a sector and a video stream.
TOOL_MICROSCOPE	A tool following the focus point of a microscope.

Definition at line 102 of file cxTool.h.

Constructor & Destructor Documentation

cx::Tool::Tool	(	const QString &	uid = `""`,
		const QString &	name = `""`
	)

Definition at line 58 of file cxTool.cpp.

virtual cx::Tool::~Tool ( )

inlinevirtual

Definition at line 89 of file cxTool.h.

Member Function Documentation

vtkPolyDataPtr cx::Tool::createDefaultPolyDataCone ( )

static

Definition at line 41 of file cxTool.cpp.

virtual Transform3D cx::Tool::get_prMt ( ) const

pure virtual

Implemented in cx::ToolProxy, cx::ToolNull, cx::PlaybackTool, and cx::ToolImpl.

virtual Transform3D cx::Tool::getCalibration_sMt ( ) const

pure virtual

get the calibration transform from tool space to sensor space (where the spheres or similar live)

Implemented in cx::DummyTool, cx::ToolUsingIGSTK, cx::OpenIGTLinkTool, cx::ManualTool, cx::PlaybackTool, cx::ToolProxy, cx::ManualToolAdapter, and cx::ToolNull.

virtual vtkPolyDataPtr cx::Tool::getGraphicsPolyData ( ) const

pure virtual

get geometric 3D description

Implemented in cx::DummyTool, cx::ToolUsingIGSTK, cx::OpenIGTLinkTool, cx::ManualTool, cx::ManualToolAdapter, cx::PlaybackTool, cx::ToolProxy, and cx::ToolNull.

virtual ToolPositionMetadata cx::Tool::getMetadata ( ) const

pure virtual

Implemented in cx::ToolImpl, cx::ToolProxy, and cx::ToolNull.

virtual const std::map<double, ToolPositionMetadata>& cx::Tool::getMetadataHistory ( )

pure virtual

Implemented in cx::ToolImpl, cx::ToolProxy, and cx::ToolNull.

virtual QString cx::Tool::getName ( ) const

pure virtual

Returns: a descriptive name for this instance

Implemented in cx::DummyTool, cx::ToolUsingIGSTK, cx::OpenIGTLinkTool, cx::ManualTool, cx::PlaybackTool, cx::ToolProxy, and cx::ToolNull.

ToolPtr cx::Tool::getNullObject ( )

static

Definition at line 65 of file cxTool.cpp.

virtual TimedTransformMapPtr cx::Tool::getPositionHistory ( )

pure virtual

get historical positions

Implemented in cx::PlaybackTool, cx::ToolProxy, cx::ToolImpl, and cx::ToolNull.

virtual ProbePtr cx::Tool::getProbe ( ) const

inlinevirtual

additional information if the tool represents an US Probe. Extends getProbeSector()

Reimplemented in cx::DummyTool, cx::ToolUsingIGSTK, cx::OpenIGTLinkTool, cx::PlaybackTool, cx::ToolProxy, cx::ManualToolAdapter, and cx::ToolNull.

Definition at line 136 of file cxTool.h.

virtual std::map<int, Vector3D> cx::Tool::getReferencePoints ( ) const

inlinevirtual

Get the optional reference points from this tool.

Reimplemented in cx::DummyTool, cx::ToolUsingIGSTK, cx::ToolProxy, cx::ManualTool, cx::PlaybackTool, cx::ToolNull, and cx::ManualToolAdapter.

Definition at line 142 of file cxTool.h.

virtual TimedTransformMap cx::Tool::getSessionHistory	(	double	startTime,
		double	stopTime
	)

pure virtual

Implemented in cx::PlaybackTool, cx::ToolProxy, cx::ToolNull, and cx::ToolImpl.

virtual double cx::Tool::getTimestamp ( ) const

pure virtual

latest valid timestamp for the position matrix. 0 means indeterminate (for f.ex. manual tools)

Implemented in cx::DummyTool, cx::ToolUsingIGSTK, cx::OpenIGTLinkTool, cx::ToolProxy, cx::ManualTool, cx::PlaybackTool, and cx::ToolNull.

virtual double cx::Tool::getTooltipOffset ( ) const

inlinevirtual

get a virtual offset extending from the tool tip.

Reimplemented in cx::ToolUsingIGSTK, cx::OpenIGTLinkTool, cx::ToolProxy, cx::ManualToolAdapter, cx::PlaybackTool, cx::ToolNull, and cx::ToolImpl.

Definition at line 140 of file cxTool.h.

virtual std::set<Type> cx::Tool::getTypes ( ) const

pure virtual

Implemented in cx::DummyTool, cx::ToolUsingIGSTK, cx::OpenIGTLinkTool, cx::ManualTool, cx::ManualToolAdapter, cx::PlaybackTool, cx::ToolProxy, and cx::ToolNull.

virtual QString cx::Tool::getUid ( ) const

pure virtual

Returns: an unique id for this instance

Implemented in cx::DummyTool, cx::ToolUsingIGSTK, cx::OpenIGTLinkTool, cx::ManualTool, cx::PlaybackTool, cx::ToolProxy, and cx::ToolNull.

virtual bool cx::Tool::getVisible ( ) const

pure virtual

Returns: the visibility status of the tool

Implemented in cx::DummyTool, cx::ToolUsingIGSTK, cx::OpenIGTLinkTool, cx::ManualTool, cx::PlaybackTool, cx::ToolProxy, and cx::ToolNull.

virtual bool cx::Tool::hasReferencePointWithId ( int id )

inlinevirtual

Reimplemented in cx::ToolUsingIGSTK, cx::PlaybackTool, cx::ToolProxy, and cx::ToolNull.

Definition at line 143 of file cxTool.h.

virtual bool cx::Tool::hasType ( Type type ) const

inlinevirtual

Returns: true is the tool has properties of the input type.

Definition at line 119 of file cxTool.h.

virtual bool cx::Tool::isCalibrated ( ) const

pure virtual

a tool may not be calibrated, then no tracking i allowed

Implemented in cx::DummyTool, cx::ToolUsingIGSTK, cx::OpenIGTLinkTool, cx::ManualTool, cx::ToolProxy, cx::PlaybackTool, cx::ManualToolAdapter, and cx::ToolNull.

virtual bool cx::Tool::isInitialized ( ) const

inlinevirtual

Reimplemented in cx::ToolUsingIGSTK, cx::OpenIGTLinkTool, cx::PlaybackTool, cx::ToolProxy, and cx::ToolNull.

Definition at line 127 of file cxTool.h.

virtual bool cx::Tool::isNull ( )

pure virtual

Implemented in cx::ToolProxy, cx::ToolNull, and cx::ToolImpl.

virtual void cx::Tool::printSelf	(	std::ostream &	os,
		Indent	indent
	)

inlinevirtual

dump internal debug data

Reimplemented in cx::ToolProxy, and cx::ToolNull.

Definition at line 138 of file cxTool.h.

virtual void cx::Tool::resetTrackingPositionFilter ( TrackingPositionFilterPtr filter )

pure virtual

Implemented in cx::ToolProxy, cx::ToolNull, and cx::ToolImpl.

virtual void cx::Tool::set_prMt	(	const Transform3D &	prMt,
		double	timestamp = `-1`
	)

pure virtual

if available for this type, set pos, ts<0 means use current time

Implemented in cx::ToolUsingIGSTK, cx::ToolProxy, cx::PlaybackTool, cx::ToolNull, cx::ToolImpl, and cx::ManualTool.

virtual void cx::Tool::setCalibration_sMt ( Transform3D calibration )

inlinevirtual

requests to use the calibration and replaces the tools calibration file

Reimplemented in cx::ToolUsingIGSTK, cx::OpenIGTLinkTool, cx::ToolProxy, and cx::ToolNull.

Definition at line 134 of file cxTool.h.

virtual void cx::Tool::setTooltipOffset ( double val )

inlinevirtual

set a virtual offset extending from the tool tip.

Reimplemented in cx::ToolUsingIGSTK, cx::OpenIGTLinkTool, cx::ToolProxy, cx::ManualToolAdapter, cx::PlaybackTool, cx::ToolNull, and cx::ToolImpl.

Definition at line 141 of file cxTool.h.

virtual void cx::Tool::setVisible ( bool vis )

pure virtual

if available for this type, set visibility

Implemented in cx::DummyTool, cx::ToolUsingIGSTK, cx::OpenIGTLinkTool, cx::ToolProxy, cx::PlaybackTool, cx::ToolNull, and cx::ManualTool.

void cx::Tool::toolProbeSector ( )

signal

void cx::Tool::tooltipOffset ( double offset )

signal

void cx::Tool::toolTransformAndTimestamp	(	Transform3D	matrix,
		double	timestamp
	)

signal

void cx::Tool::toolVisible ( bool visible )

signal

void cx::Tool::tps ( int )

signal

Member Data Documentation

QString cx::Tool::mName

protected

Definition at line 169 of file cxTool.h.

QString cx::Tool::mUid

protected

Definition at line 168 of file cxTool.h.

The documentation for this class was generated from the following files:

/media/jenkins/bamboo/buildagent/xml-data/build-dir/NN-RE-JOB1/CX/CX/source/resource/core/Tool/cxTool.h
/media/jenkins/bamboo/buildagent/xml-data/build-dir/NN-RE-JOB1/CX/CX/source/resource/core/Tool/cxTool.cpp
