Abstract interface for interaction with internal string-valued data. More...

#include <cxStringPropertyBase.h>

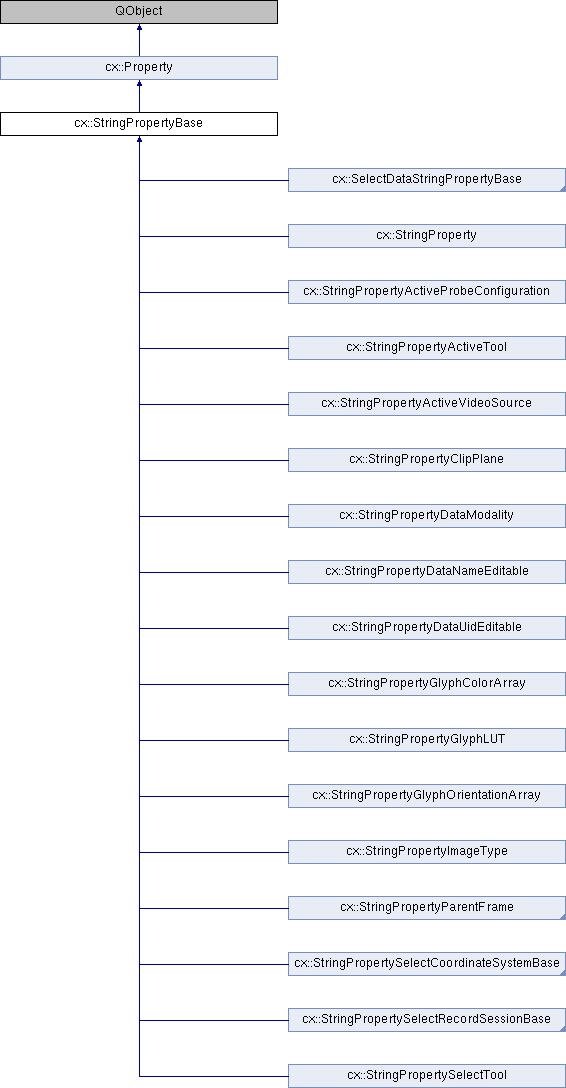

Inheritance diagram for cx::StringPropertyBase:

Public Types
enum	GuiRepresentation { grSTRING, grFILENAME }

Public Member Functions
	StringPropertyBase ()

virtual	~StringPropertyBase ()

virtual QString	getDisplayName () const =0
	name of data entity. Used for display to user. More...

virtual QVariant	getValueAsVariant () const

virtual void	setValueFromVariant (QVariant val)

virtual QString	getUid () const

virtual bool	setValue (const QString &value)=0
	set the data value. More...

virtual QString	getValue () const =0
	get the data value. More...

virtual bool	isReadOnly () const

virtual bool	getAllowOnlyValuesInRange () const

virtual QString	getHelp () const
	return a descriptive help string for the data, used for example as a tool tip. More...

virtual QStringList	getValueRange () const

virtual QString	convertInternal2Display (QString internal)
	range of value. Use if data is constrained to a set. More...

virtual void	setGuiRepresentation (GuiRepresentation type)

virtual GuiRepresentation	getGuiRepresentation ()

Public Member Functions inherited from cx::Property
	Property ()

virtual	~Property ()

virtual bool	getEnabled () const
	Get the enabled/disabled state of the Property. More...

virtual bool	getAdvanced () const
	Get the advanced flag of the adapter. More...

virtual QString	getGroup () const
	Flag the adapter as part of a group. More...

Protected Attributes
GuiRepresentation	mGuiRepresentation

Protected Attributes inherited from cx::Property
bool	mEnabled

bool	mAdvanced

QString	mGroup

Additional Inherited Members
Public Slots inherited from cx::Property
virtual bool	setEnabled (bool enabled)
	Set the enabled/disabled state of the Property. More...

virtual bool	setAdvanced (bool advanced)
	Set the advanced flag of the adapter. More...

virtual bool	setGroup (QString name)
	Flag the adapter as part of a group. More...

Signals inherited from cx::Property
void	changed ()
	emit when the underlying data value is changed: The user interface will be updated. More...

Static Public Member Functions inherited from cx::Property
static PropertyPtr	findProperty (std::vector< PropertyPtr > properties, QString id)

Detailed Description

Abstract interface for interaction with internal string-valued data.

The class provides a bridge between general user interface code and specific data structures. An implementation connects to a single data value.

Minimal implementation:

     virtual QString getDisplayName() const;
     virtual bool setValue(QString value);
     virtual QString getValue() const;
     void changed();

By implementing these methods you can set and get values, and the data has a name. The changed() signal is used to make sure the user interface is updated even when data is changed by some other source.

For more control use the methods:

     virtual QStringList getValueRange() const;

If there is a difference between the internal data representation and how you want to present them, use:

     virtual QString convertInternal2Display(QString internal);

When testing, or during development, you can use the StringPropertyNull as a dummy implementation.

Definition at line 86 of file cxStringPropertyBase.h.

Member Enumeration Documentation

enum cx::StringPropertyBase::GuiRepresentation

Enumerator
grSTRING
grFILENAME

Definition at line 94 of file cxStringPropertyBase.h.

Constructor & Destructor Documentation

cx::StringPropertyBase::StringPropertyBase ( )

inline

Definition at line 90 of file cxStringPropertyBase.h.

virtual cx::StringPropertyBase::~StringPropertyBase ( )

inlinevirtual

Definition at line 91 of file cxStringPropertyBase.h.

Member Function Documentation

virtual QString cx::StringPropertyBase::convertInternal2Display ( QString internal )

inlinevirtual

range of value. Use if data is constrained to a set.

conversion from internal value to display value

Reimplemented in cx::StringPropertyParentFrame, cx::StringPropertyActiveProbeConfiguration, cx::StringProperty, cx::StringPropertySelectTool, cx::StringPropertyFusedInputOutputSelectData, cx::StringPropertyActiveTool, cx::SelectDataStringPropertyBase, cx::StringPropertySelectRecordSessionBase, and cx::StringPropertySelectCoordinateSystemBase.

Definition at line 134 of file cxStringPropertyBase.h.

virtual bool cx::StringPropertyBase::getAllowOnlyValuesInRange ( ) const

inlinevirtual

Reimplemented in cx::StringPropertyDataUidEditable, cx::StringPropertyDataNameEditable, and cx::StringProperty.

Definition at line 124 of file cxStringPropertyBase.h.

virtual QString cx::StringPropertyBase::getDisplayName ( ) const

pure virtual

name of data entity. Used for display to user.

Implements cx::Property.

virtual GuiRepresentation cx::StringPropertyBase::getGuiRepresentation ( )

inlinevirtual

Definition at line 140 of file cxStringPropertyBase.h.

virtual QString cx::StringPropertyBase::getHelp ( ) const

inlinevirtual

return a descriptive help string for the data, used for example as a tool tip.

Definition at line 126 of file cxStringPropertyBase.h.

virtual QString cx::StringPropertyBase::getUid ( ) const

inlinevirtual

Implements cx::Property.

Reimplemented in cx::StringProperty.

Definition at line 112 of file cxStringPropertyBase.h.

virtual QString cx::StringPropertyBase::getValue ( ) const

pure virtual

get the data value.

virtual QVariant cx::StringPropertyBase::getValueAsVariant ( ) const

inlinevirtual

Implements cx::Property.

Definition at line 103 of file cxStringPropertyBase.h.

virtual QStringList cx::StringPropertyBase::getValueRange ( ) const

inlinevirtual

Definition at line 130 of file cxStringPropertyBase.h.

virtual bool cx::StringPropertyBase::isReadOnly ( ) const

inlinevirtual

Reimplemented in cx::StringPropertyDataUidEditable, cx::StringPropertyDataNameEditable, and cx::StringProperty.

Definition at line 120 of file cxStringPropertyBase.h.

virtual void cx::StringPropertyBase::setGuiRepresentation ( GuiRepresentation type )

inlinevirtual

Definition at line 139 of file cxStringPropertyBase.h.

virtual bool cx::StringPropertyBase::setValue ( const QString & value )

pure virtual

set the data value.

virtual void cx::StringPropertyBase::setValueFromVariant ( QVariant val )

inlinevirtual

Implements cx::Property.

Definition at line 107 of file cxStringPropertyBase.h.

Member Data Documentation

GuiRepresentation cx::StringPropertyBase::mGuiRepresentation

protected

Definition at line 140 of file cxStringPropertyBase.h.

The documentation for this class was generated from the following file:

/media/jenkins/bamboo/buildagent/xml-data/build-dir/NN-RE-JOB1/CX/CX/source/resource/core/properties/cxStringPropertyBase.h
