cx::Protocol Class Reference

#include <cxProtocol.h>

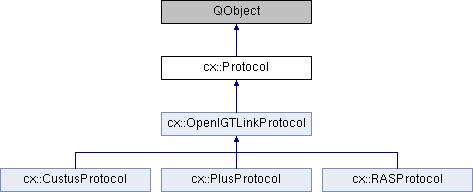

Inheritance diagram for cx::Protocol:

Signals
void	transform (QString devicename, Transform3D transform, double timestamp)
void	calibration (QString devicename, Transform3D calibration)
void	image (ImagePtr image)
void	mesh (MeshPtr mesh)
void	probedefinition (QString devicename, ProbeDefinitionPtr definition)

Public Member Functions
	Protocol (QObject *parent=0)
virtual QString	getName () const
virtual EncodedPackagePtr	getPack ()
virtual bool	readyToReceiveData ()=0
virtual EncodedPackagePtr	encode (ImagePtr image)=0
virtual EncodedPackagePtr	encode (MeshPtr data)=0
virtual void	setSynchronizeRemoteClock (bool on)

Protected Slots
virtual void	processPack ()=0

Protected Attributes
EncodedPackagePtr	mPack
StreamedTimestampSynchronizerPtr	mStreamSynchronizer

Detailed Description

An Application layer protocol for sending/receiving CustusX objects.

Single-threaded.

Definition at line 56 of file cxProtocol.h.

Constructor & Destructor Documentation

cx::Protocol::Protocol ( QObject *  parent = 0 )

explicit

Definition at line 11 of file cxProtocol.cpp.

Member Function Documentation

void cx::Protocol::calibration ( QString  devicename, Transform3D  calibration  )

signal

virtual EncodedPackagePtr cx::Protocol::encode ( ImagePtr  image )

pure virtual

Implemented in cx::OpenIGTLinkProtocol.

virtual EncodedPackagePtr cx::Protocol::encode ( MeshPtr  data )

pure virtual

Implemented in cx::OpenIGTLinkProtocol.

QString cx::Protocol::getName ( ) const

virtual

Reimplemented in cx::PlusProtocol, cx::CustusProtocol, and cx::RASProtocol.

Definition at line 19 of file cxProtocol.cpp.

EncodedPackagePtr cx::Protocol::getPack ( )

virtual

Definition at line 24 of file cxProtocol.cpp.

void cx::Protocol::image ( ImagePtr  image )

signal

void cx::Protocol::mesh ( MeshPtr  mesh )

signal

void cx::Protocol::probedefinition ( QString  devicename, ProbeDefinitionPtr  definition  )

signal

virtual void cx::Protocol::processPack ( )

protectedpure virtualslot

virtual bool cx::Protocol::readyToReceiveData ( )

pure virtual

Implemented in cx::OpenIGTLinkProtocol.

void cx::Protocol::setSynchronizeRemoteClock ( bool  on )

virtual

Assume the clock on the remote side is not synced, take steps to synchronize incoming timestamps if needed.

Definition at line 29 of file cxProtocol.cpp.

void cx::Protocol::transform ( QString  devicename, Transform3D  transform, double  timestamp  )

signal

Member Data Documentation

EncodedPackagePtr cx::Protocol::mPack

protected

Definition at line 84 of file cxProtocol.h.

StreamedTimestampSynchronizerPtr cx::Protocol::mStreamSynchronizer

protected

Definition at line 85 of file cxProtocol.h.

---

The documentation for this class was generated from the following files:

• /media/jenkins/bamboo/buildagent/xml-data/build-dir/NN-RE-JOB1/CX/CX/source/plugins/org.custusx.core.openigtlink/openigtlinkClient/protocols/cxProtocol.h
• /media/jenkins/bamboo/buildagent/xml-data/build-dir/NN-RE-JOB1/CX/CX/source/plugins/org.custusx.core.openigtlink/openigtlinkClient/protocols/cxProtocol.cpp
