The virtual patient. More...

#include <cxPatientModelService.h>

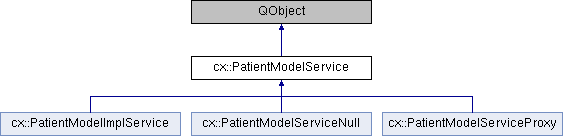

Inheritance diagram for cx::PatientModelService:

Public Types
enum	DataFilter { HideUnavailable, AllData }

Signals
void	operatingTableChanged ()

void	centerChanged ()
	emitted when center is changed. More...

void	dataAddedOrRemoved ()

void	landmarkPropertiesChanged ()
	emitted when global info about a landmark changed More...

void	clinicalApplicationChanged ()

void	rMprChanged ()

void	streamLoaded ()

void	patientChanged ()

void	videoAddedToTrackedStream ()

Public Member Functions
virtual	~PatientModelService ()

virtual void	insertData (DataPtr data, bool overWrite=false)=0

virtual std::map< QString, DataPtr >	getDatas (DataFilter filter=HideUnavailable) const =0

virtual std::map< QString, DataPtr >	getChildren (QString parent_uid, QString of_type="") const =0

virtual DataPtr	createData (QString type, QString uid, QString name="")=0

virtual void	removeData (QString uid)=0

template<class DATA >
std::map< QString, boost::shared_ptr< DATA > >	getDataOfType () const

DataPtr	getData (const QString &uid) const

template<class DATA >
boost::shared_ptr< DATA >	getData (const QString &uid) const

template<class DATA >
boost::shared_ptr< DATA >	createSpecificData (QString uid, QString name="")

virtual std::map< QString, VideoSourcePtr >	getStreams () const =0

VideoSourcePtr	getStream (const QString &uid) const
	Convenience function getting a specified stream. More...

virtual Transform3D	get_rMpr () const

virtual RegistrationHistoryPtr	get_rMpr_History () const =0

virtual ActiveDataPtr	getActiveData () const =0

virtual LandmarksPtr	getPatientLandmarks () const =0
	landmark defined in patient space More...

virtual std::map< QString, LandmarkProperty >	getLandmarkProperties () const =0

virtual void	setLandmarkName (QString uid, QString name)=0

virtual void	setLandmarkActive (QString uid, bool active)=0

virtual QString	addLandmark ()=0

virtual void	deleteLandmarks ()=0

virtual void	updateRegistration_rMpr (const QDateTime &oldTime, const RegistrationTransform &newTransform)

virtual QString	getActivePatientFolder () const =0

QString	generateFilePath (QString folderName, QString ending)

virtual bool	isPatientValid () const =0

virtual DataPtr	importData (QString fileName, QString &infoText)=0

virtual void	exportPatient (PATIENT_COORDINATE_SYSTEM externalSpace)=0

virtual PresetTransferFunctions3DPtr	getPresetTransferFunctions3D () const =0

virtual void	setCenter (const Vector3D &center)=0

virtual Vector3D	getCenter () const =0
	current common center point for user viewing. More...

virtual void	setOperatingTable (const OperatingTable &ot)=0

virtual OperatingTable	getOperatingTable () const =0

virtual CLINICAL_VIEW	getClinicalApplication () const =0

virtual void	setClinicalApplication (CLINICAL_VIEW application)=0

virtual void	autoSave ()=0

virtual bool	isNull ()=0

virtual void	makeAvailable (const QString &uid, bool available)=0
	Exclude this data from getDatas() More...

Static Public Member Functions
static PatientModelServicePtr	getNullObject ()

Detailed Description

The virtual patient.

PatientModelService provides access to the Patient Specific Model (PaSM).

data entities
- volumes
- surfaces
- metrics
- etc
relations between entities in space, time and structure
load/save

Date: 2014-05-15

Author: Christian Askeland, SINTEF; Ole Vegard Solberg, SINTEF

Definition at line 85 of file cxPatientModelService.h.

Member Enumeration Documentation

enum cx::PatientModelService::DataFilter

Enumerator
HideUnavailable
AllData

Definition at line 91 of file cxPatientModelService.h.

Constructor & Destructor Documentation

virtual cx::PatientModelService::~PatientModelService ( )

inlinevirtual

Definition at line 89 of file cxPatientModelService.h.

Member Function Documentation

virtual QString cx::PatientModelService::addLandmark ( )

pure virtual

Implemented in cx::PatientModelServiceProxy, cx::PatientModelImplService, and cx::PatientModelServiceNull.

virtual void cx::PatientModelService::autoSave ( )

pure virtual

Implemented in cx::PatientModelServiceProxy, cx::PatientModelImplService, and cx::PatientModelServiceNull.

void cx::PatientModelService::centerChanged ( )

signal

emitted when center is changed.

void cx::PatientModelService::clinicalApplicationChanged ( )

signal

virtual DataPtr cx::PatientModelService::createData	(	QString	type,
		QString	uid,
		QString	name = `""`
	)

pure virtual

Create Data object of given type.

uid must be unique, or contain the string %1 that will be replaced with a running index that makes the uid unique. The same applies to name. An empty name will set name = uid.

Implemented in cx::PatientModelServiceProxy, cx::PatientModelImplService, and cx::PatientModelServiceNull.

template<class DATA >

boost::shared_ptr< DATA > cx::PatientModelService::createSpecificData	(	QString	uid,
		QString	name = `""`
	)

Definition at line 202 of file cxPatientModelService.h.

void cx::PatientModelService::dataAddedOrRemoved ( )

signal

virtual void cx::PatientModelService::deleteLandmarks ( )

pure virtual

Implemented in cx::PatientModelServiceProxy, cx::PatientModelImplService, and cx::PatientModelServiceNull.

virtual void cx::PatientModelService::exportPatient ( PATIENT_COORDINATE_SYSTEM externalSpace )

pure virtual

Implemented in cx::PatientModelImplService, cx::PatientModelServiceProxy, and cx::PatientModelServiceNull.

QString cx::PatientModelService::generateFilePath	(	QString	folderName,
		QString	ending
	)

Definition at line 66 of file cxPatientModelService.cpp.

Transform3D cx::PatientModelService::get_rMpr ( ) const

virtual

Reimplemented in cx::PatientModelImplService.

Definition at line 45 of file cxPatientModelService.cpp.

virtual RegistrationHistoryPtr cx::PatientModelService::get_rMpr_History ( ) const

pure virtual

Implemented in cx::PatientModelImplService, cx::PatientModelServiceProxy, and cx::PatientModelServiceNull.

virtual ActiveDataPtr cx::PatientModelService::getActiveData ( ) const

pure virtual

Implemented in cx::PatientModelImplService, cx::PatientModelServiceProxy, and cx::PatientModelServiceNull.

virtual QString cx::PatientModelService::getActivePatientFolder ( ) const

pure virtual

Implemented in cx::PatientModelImplService, cx::PatientModelServiceProxy, and cx::PatientModelServiceNull.

virtual Vector3D cx::PatientModelService::getCenter ( ) const

pure virtual

current common center point for user viewing.

Implemented in cx::PatientModelServiceProxy, cx::PatientModelImplService, and cx::PatientModelServiceNull.

virtual std::map<QString, DataPtr> cx::PatientModelService::getChildren	(	QString	parent_uid,
		QString	of_type = `""`
	)		const

pure virtual

Implemented in cx::PatientModelImplService, cx::PatientModelServiceProxy, and cx::PatientModelServiceNull.

virtual CLINICAL_VIEW cx::PatientModelService::getClinicalApplication ( ) const

pure virtual

Implemented in cx::PatientModelImplService, cx::PatientModelServiceProxy, and cx::PatientModelServiceNull.

DataPtr cx::PatientModelService::getData ( const QString & uid ) const

Definition at line 33 of file cxPatientModelService.cpp.

template<class DATA >

boost::shared_ptr< DATA > cx::PatientModelService::getData ( const QString & uid ) const

Definition at line 196 of file cxPatientModelService.h.

template<class DATA >

std::map< QString, boost::shared_ptr< DATA > > cx::PatientModelService::getDataOfType ( ) const

Definition at line 182 of file cxPatientModelService.h.

virtual std::map<QString, DataPtr> cx::PatientModelService::getDatas ( DataFilter filter = HideUnavailable ) const

pure virtual

Implemented in cx::PatientModelServiceProxy, cx::PatientModelImplService, and cx::PatientModelServiceNull.

virtual std::map<QString, LandmarkProperty> cx::PatientModelService::getLandmarkProperties ( ) const

pure virtual

Get all defined landmarks. These landmarks are additionally defined in specific coordinate spaces, such as patient and for each Data.

Implemented in cx::PatientModelServiceProxy, cx::PatientModelImplService, and cx::PatientModelServiceNull.

PatientModelServicePtr cx::PatientModelService::getNullObject ( )

static

Definition at line 25 of file cxPatientModelService.cpp.

virtual OperatingTable cx::PatientModelService::getOperatingTable ( ) const

pure virtual

Implemented in cx::PatientModelServiceProxy, cx::PatientModelImplService, and cx::PatientModelServiceNull.

virtual LandmarksPtr cx::PatientModelService::getPatientLandmarks ( ) const

pure virtual

landmark defined in patient space

Implemented in cx::PatientModelServiceProxy, cx::PatientModelImplService, and cx::PatientModelServiceNull.

virtual PresetTransferFunctions3DPtr cx::PatientModelService::getPresetTransferFunctions3D ( ) const

pure virtual

Implemented in cx::PatientModelServiceProxy, cx::PatientModelImplService, and cx::PatientModelServiceNull.

VideoSourcePtr cx::PatientModelService::getStream ( const QString & uid ) const

Convenience function getting a specified stream.

Definition at line 58 of file cxPatientModelService.cpp.

virtual std::map<QString, VideoSourcePtr> cx::PatientModelService::getStreams ( ) const

pure virtual

Implemented in cx::PatientModelImplService, cx::PatientModelServiceProxy, and cx::PatientModelServiceNull.

virtual DataPtr cx::PatientModelService::importData	(	QString	fileName,
		QString &	infoText
	)

pure virtual

Implemented in cx::PatientModelImplService, cx::PatientModelServiceProxy, and cx::PatientModelServiceNull.

virtual void cx::PatientModelService::insertData	(	DataPtr	data,
		bool	overWrite = `false`
	)

pure virtual

Implemented in cx::PatientModelServiceProxy, cx::PatientModelImplService, and cx::PatientModelServiceNull.

virtual bool cx::PatientModelService::isNull ( )

pure virtual

Implemented in cx::PatientModelServiceProxy, cx::PatientModelImplService, and cx::PatientModelServiceNull.

virtual bool cx::PatientModelService::isPatientValid ( ) const

pure virtual

Implemented in cx::PatientModelImplService, cx::PatientModelServiceProxy, and cx::PatientModelServiceNull.

void cx::PatientModelService::landmarkPropertiesChanged ( )

signal

emitted when global info about a landmark changed

virtual void cx::PatientModelService::makeAvailable	(	const QString &	uid,
		bool	available
	)

pure virtual

Exclude this data from getDatas()

Implemented in cx::PatientModelServiceProxy, cx::PatientModelImplService, and cx::PatientModelServiceNull.

void cx::PatientModelService::operatingTableChanged ( )

signal

void cx::PatientModelService::patientChanged ( )

signal

virtual void cx::PatientModelService::removeData ( QString uid )

pure virtual

Implemented in cx::PatientModelImplService, cx::PatientModelServiceProxy, and cx::PatientModelServiceNull.

void cx::PatientModelService::rMprChanged ( )

signal

virtual void cx::PatientModelService::setCenter ( const Vector3D & center )

pure virtual

Implemented in cx::PatientModelServiceProxy, cx::PatientModelImplService, and cx::PatientModelServiceNull.

virtual void cx::PatientModelService::setClinicalApplication ( CLINICAL_VIEW application )

pure virtual

Implemented in cx::PatientModelImplService, cx::PatientModelServiceProxy, and cx::PatientModelServiceNull.

virtual void cx::PatientModelService::setLandmarkActive	(	QString	uid,
		bool	active
	)

pure virtual

Implemented in cx::PatientModelServiceProxy, cx::PatientModelImplService, and cx::PatientModelServiceNull.

virtual void cx::PatientModelService::setLandmarkName	(	QString	uid,
		QString	name
	)

pure virtual

Implemented in cx::PatientModelServiceProxy, cx::PatientModelImplService, and cx::PatientModelServiceNull.

virtual void cx::PatientModelService::setOperatingTable ( const OperatingTable & ot )

pure virtual

Implemented in cx::PatientModelServiceProxy, cx::PatientModelImplService, and cx::PatientModelServiceNull.

void cx::PatientModelService::streamLoaded ( )

signal

void cx::PatientModelService::updateRegistration_rMpr	(	const QDateTime &	oldTime,
		const RegistrationTransform &	newTransform
	)

virtual

Definition at line 50 of file cxPatientModelService.cpp.

void cx::PatientModelService::videoAddedToTrackedStream ( )

signal

The documentation for this class was generated from the following files:

/media/dev/bamboodrive/b/xml-data/build-dir/FX-OSTBR-JOB1/CX/CX/source/resource/core/patientModel/cxPatientModelService.h
/media/dev/bamboodrive/b/xml-data/build-dir/FX-OSTBR-JOB1/CX/CX/source/resource/core/patientModel/cxPatientModelService.cpp
