#include <cxSelectDataStringPropertyBase.h>

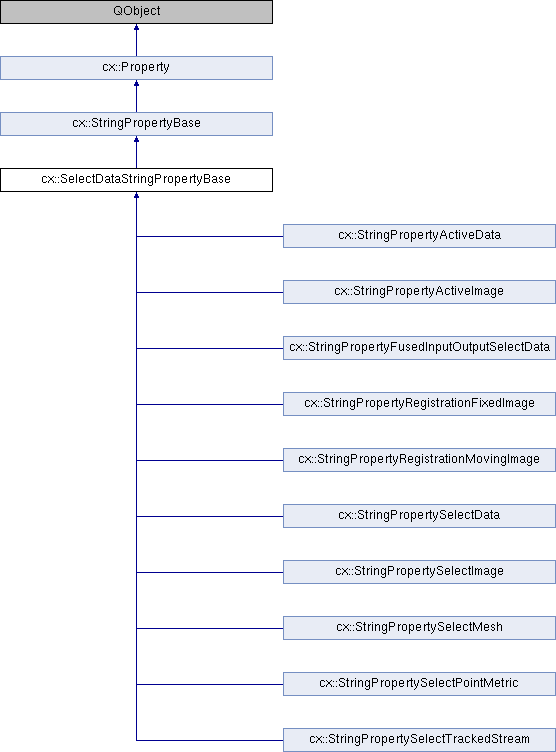

Inheritance diagram for cx::SelectDataStringPropertyBase:

Signals
void	dataChanged (QString)

Signals inherited from cx::Property
void	changed ()
	emit when the underlying data value is changed: The user interface will be updated. More...

Public Member Functions
virtual	~SelectDataStringPropertyBase ()

virtual QString	getDisplayName () const
	name of data entity. Used for display to user. More...

virtual QStringList	getValueRange () const

virtual QString	convertInternal2Display (QString internal)
	range of value. Use if data is constrained to a set. More...

virtual QString	getHelp () const
	return a descriptive help string for the data, used for example as a tool tip. More...

virtual DataPtr	getData () const

virtual DataPtr	getData (QString uid) const

virtual void	setValueName (const QString name)

virtual void	setHelp (QString text)

virtual void	setUidRegexp (QString regexp)

virtual void	setTypeRegexp (QString regexp)

void	setOnly2DImagesFilter (bool only2D)

Public Member Functions inherited from cx::StringPropertyBase
	StringPropertyBase ()

virtual	~StringPropertyBase ()

virtual QVariant	getValueAsVariant () const

virtual void	setValueFromVariant (QVariant val)

virtual QString	getUid () const

virtual bool	setValue (const QString &value)=0
	set the data value. More...

virtual QString	getValue () const =0
	get the data value. More...

virtual bool	isReadOnly () const

virtual bool	getAllowOnlyValuesInRange () const

virtual void	setGuiRepresentation (GuiRepresentation type)

virtual GuiRepresentation	getGuiRepresentation ()

Public Member Functions inherited from cx::Property
	Property ()

virtual	~Property ()

virtual bool	getEnabled () const
	Get the enabled/disabled state of the Property. More...

virtual bool	getAdvanced () const
	Get the advanced flag of the adapter. More...

virtual QString	getGroup () const
	Flag the adapter as part of a group. More...

Static Public Member Functions
static std::map< QString, DataPtr >	filterOnType (std::map< QString, DataPtr > input, QString regexp)

Static Public Member Functions inherited from cx::Property
static PropertyPtr	findProperty (std::vector< PropertyPtr > properties, QString id)

Protected Member Functions
	SelectDataStringPropertyBase (PatientModelServicePtr patientModelService, QString typeRegexp=".*")

std::map< QString, DataPtr >	filterOnUid (std::map< QString, DataPtr > input, QString regexp) const

std::map< QString, DataPtr >	filterImagesOn2D (std::map< QString, DataPtr > input, bool only2D) const

Protected Attributes
QString	mTypeRegexp

QString	mUidRegexp

bool	mOnly2D

QString	mValueName

QString	mHelp

PatientModelServicePtr	mPatientModelService

Protected Attributes inherited from cx::StringPropertyBase
GuiRepresentation	mGuiRepresentation

Protected Attributes inherited from cx::Property
bool	mEnabled

bool	mAdvanced

QString	mGroup

Additional Inherited Members
Public Types inherited from cx::StringPropertyBase
enum	GuiRepresentation { grSTRING, grFILENAME }

Public Slots inherited from cx::Property
virtual bool	setEnabled (bool enabled)
	Set the enabled/disabled state of the Property. More...

virtual bool	setAdvanced (bool advanced)
	Set the advanced flag of the adapter. More...

virtual bool	setGroup (QString name)
	Flag the adapter as part of a group. More...

Detailed Description

Base class for all Properties that selects a Data or descendants.

Date: 2014-09-11

Author: Christian Askeland, SINTEF; Ole Vegard Solberg, SINTEF

Definition at line 32 of file cxSelectDataStringPropertyBase.h.

Constructor & Destructor Documentation

virtual cx::SelectDataStringPropertyBase::~SelectDataStringPropertyBase ( )

inlinevirtual

Definition at line 36 of file cxSelectDataStringPropertyBase.h.

cx::SelectDataStringPropertyBase::SelectDataStringPropertyBase	(	PatientModelServicePtr	patientModelService,
		QString	typeRegexp = `".*"`
	)

explicitprotected

Construct base with a filter that determined allowed Data types based on their getType() return value. The default of ".*" means any type.

Definition at line 21 of file cxSelectDataStringPropertyBase.cpp.

Member Function Documentation

QString cx::SelectDataStringPropertyBase::convertInternal2Display ( QString internal )

virtual

range of value. Use if data is constrained to a set.

conversion from internal value to display value

Reimplemented from cx::StringPropertyBase.

Reimplemented in cx::StringPropertyFusedInputOutputSelectData.

Definition at line 119 of file cxSelectDataStringPropertyBase.cpp.

void cx::SelectDataStringPropertyBase::dataChanged ( QString )

signal

std::map< QString, DataPtr > cx::SelectDataStringPropertyBase::filterImagesOn2D	(	std::map< QString, DataPtr >	input,
		bool	only2D
	)		const

protected

Definition at line 76 of file cxSelectDataStringPropertyBase.cpp.

std::map< QString, DataPtr > cx::SelectDataStringPropertyBase::filterOnType	(	std::map< QString, DataPtr >	input,
		QString	regexp
	)

static

Erase all data with type not conforming to input regexp.

Definition at line 35 of file cxSelectDataStringPropertyBase.cpp.

std::map< QString, DataPtr > cx::SelectDataStringPropertyBase::filterOnUid	(	std::map< QString, DataPtr >	input,
		QString	regexp
	)		const

protected

Erase all data with uid not conforming to input regexp.

Definition at line 60 of file cxSelectDataStringPropertyBase.cpp.

DataPtr cx::SelectDataStringPropertyBase::getData ( ) const

virtual

Reimplemented in cx::StringPropertySelectData, and cx::StringPropertyFusedInputOutputSelectData.

Definition at line 148 of file cxSelectDataStringPropertyBase.cpp.

DataPtr cx::SelectDataStringPropertyBase::getData ( QString uid ) const

virtual

Definition at line 153 of file cxSelectDataStringPropertyBase.cpp.

QString cx::SelectDataStringPropertyBase::getDisplayName ( ) const

virtual

name of data entity. Used for display to user.

Implements cx::StringPropertyBase.

Reimplemented in cx::StringPropertyFusedInputOutputSelectData.

Definition at line 132 of file cxSelectDataStringPropertyBase.cpp.

QString cx::SelectDataStringPropertyBase::getHelp ( ) const

virtual

return a descriptive help string for the data, used for example as a tool tip.

Reimplemented from cx::StringPropertyBase.

Reimplemented in cx::StringPropertyFusedInputOutputSelectData.

Definition at line 127 of file cxSelectDataStringPropertyBase.cpp.

QStringList cx::SelectDataStringPropertyBase::getValueRange ( ) const

virtual

Reimplemented from cx::StringPropertyBase.

Reimplemented in cx::StringPropertyFusedInputOutputSelectData.

Definition at line 105 of file cxSelectDataStringPropertyBase.cpp.

void cx::SelectDataStringPropertyBase::setHelp ( QString text )

virtual

Reimplemented in cx::StringPropertyFusedInputOutputSelectData.

Definition at line 137 of file cxSelectDataStringPropertyBase.cpp.

void cx::SelectDataStringPropertyBase::setOnly2DImagesFilter ( bool only2D )

Definition at line 93 of file cxSelectDataStringPropertyBase.cpp.

void cx::SelectDataStringPropertyBase::setTypeRegexp ( QString regexp )

virtual

Definition at line 51 of file cxSelectDataStringPropertyBase.cpp.

void cx::SelectDataStringPropertyBase::setUidRegexp ( QString regexp )

virtual

Definition at line 99 of file cxSelectDataStringPropertyBase.cpp.

void cx::SelectDataStringPropertyBase::setValueName ( const QString name )

virtual

Reimplemented in cx::StringPropertyFusedInputOutputSelectData.

Definition at line 142 of file cxSelectDataStringPropertyBase.cpp.

Member Data Documentation

QString cx::SelectDataStringPropertyBase::mHelp

protected

Definition at line 69 of file cxSelectDataStringPropertyBase.h.

bool cx::SelectDataStringPropertyBase::mOnly2D

protected

Definition at line 67 of file cxSelectDataStringPropertyBase.h.

PatientModelServicePtr cx::SelectDataStringPropertyBase::mPatientModelService

protected

Definition at line 71 of file cxSelectDataStringPropertyBase.h.

QString cx::SelectDataStringPropertyBase::mTypeRegexp

protected

Definition at line 65 of file cxSelectDataStringPropertyBase.h.

QString cx::SelectDataStringPropertyBase::mUidRegexp

protected

Definition at line 66 of file cxSelectDataStringPropertyBase.h.

QString cx::SelectDataStringPropertyBase::mValueName

protected

Definition at line 68 of file cxSelectDataStringPropertyBase.h.

The documentation for this class was generated from the following files:

/media/dev/bamboodrive/b/xml-data/build-dir/FX-NOS-JOB1/CX/CX/source/resource/core/properties/cxSelectDataStringPropertyBase.h
/media/dev/bamboodrive/b/xml-data/build-dir/FX-NOS-JOB1/CX/CX/source/resource/core/properties/cxSelectDataStringPropertyBase.cpp
