cx::Property Class Reference

Superclass for all data adapters. More...

#include <cxProperty.h>

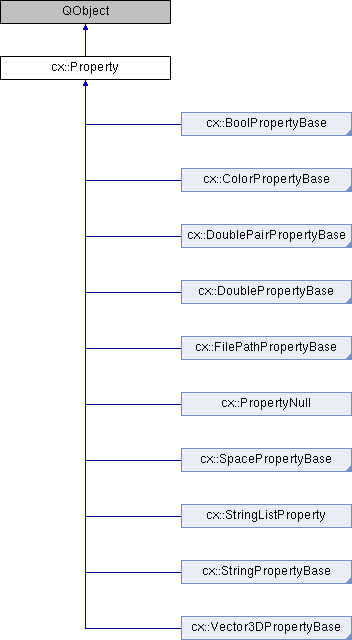

Inheritance diagram for cx::Property:

Public Slots
virtual bool	setEnabled (bool enabled)
	Set the enabled/disabled state of the Property. More...
virtual bool	setAdvanced (bool advanced)
	Set the advanced flag of the adapter. More...
virtual bool	setGroup (QString name)
	Flag the adapter as part of a group. More...

Signals
void	changed ()
	emit when the underlying data value is changed: The user interface will be updated. More...

Public Member Functions
	Property ()
virtual	~Property ()
virtual QString	getDisplayName () const =0
	name of data entity. Used for display to user. More...
virtual QString	getUid () const =0
virtual QVariant	getValueAsVariant () const =0
virtual void	setValueFromVariant (QVariant val)=0
virtual bool	getEnabled () const
	Get the enabled/disabled state of the Property. More...
virtual bool	getAdvanced () const
	Get the advanced flag of the adapter. More...
virtual QString	getGroup () const
	Flag the adapter as part of a group. More...

Static Public Member Functions
static PropertyPtr	findProperty (std::vector< PropertyPtr > properties, QString id)

Protected Attributes
bool	mEnabled
bool	mAdvanced
QString	mGroup

Detailed Description

Superclass for all data adapters.

The Property are an abstraction mechanism that separates data values from the user interface. Properties for strings, doubles, booleans and so on publish their value in a generic manner, thus enabling us to write generic widgets for displaying and changing them.

Author

Christian Askeland, SINTEF

Janne Beate Bakeng, SINTEF

Date

Jun 27, 2010

Definition at line 43 of file cxProperty.h.

Constructor & Destructor Documentation

cx::Property::Property

(

)

Definition at line 18 of file cxProperty.cpp.

virtual cx::Property::~Property ( )

inlinevirtual

Definition at line 49 of file cxProperty.h.

Member Function Documentation

void cx::Property::changed ( )

signal

emit when the underlying data value is changed: The user interface will be updated.

PropertyPtr cx::Property::findProperty ( std::vector< PropertyPtr >  properties, QString  id  )

static

Definition at line 23 of file cxProperty.cpp.

bool cx::Property::getAdvanced ( ) const

virtual

Get the advanced flag of the adapter.

Reimplemented in cx::PropertyNull.

Definition at line 41 of file cxProperty.cpp.

virtual QString cx::Property::getDisplayName ( ) const

pure virtual

name of data entity. Used for display to user.

Implemented in cx::StringPropertyGlyphLUT, cx::StringPropertyGlyphColorArray, cx::StringPropertyGlyphOrientationArray, cx::StringPropertyImageType, cx::StringPropertyDataModality, cx::StringPropertyDataUidEditable, cx::StringPropertyDataNameEditable, cx::StringPropertyParentFrame, cx::DoublePropertyNull, cx::DoubleProperty2DLevel, cx::DoubleProperty2DWindow, cx::DoublePropertyImageTFDataAlpha, cx::DoublePropertyZDim, cx::DoublePropertyImageTFDataLLR, cx::DoublePropertyShadingSpecularPower, cx::DoubleSpanSliderAdapterNull, cx::Vector3DPropertyNull, cx::DoublePropertyYDim, cx::DoublePropertyBase, cx::DoublePropertyImageTFDataLevel, cx::DoublePropertyShadingSpecular, cx::StringPropertyBase, cx::DoublePropertyXDim, cx::DoublePropertyToolOffset, cx::DoublePropertyImageTFDataWindow, cx::StringPropertyActiveProbeConfiguration, cx::DoublePropertyShadingDiffuse, cx::StringPropertySelectRecordSession, cx::FilePathPropertyBase, cx::StringPropertySelectCoordinateSystem, cx::DoublePropertySpacing, cx::DoubleProperty, cx::BoolProperty, cx::DoublePropertyShadingAmbient, cx::DoublePairProperty, cx::Vector3DProperty, cx::StringPropertySelectTool, cx::StringProperty, cx::ColorProperty, cx::DoublePropertyActiveToolOffset, cx::Vector3DPropertyBase, cx::StringPropertyFusedInputOutputSelectData, cx::SpaceProperty, cx::StringListProperty, cx::DoublePairPropertyBase, cx::StringPropertyActiveTool, cx::Vector3DComponentProperty, cx::StringPropertyClipPlane, cx::ColorPropertyBase, cx::SelectDataStringPropertyBase, cx::SpacePropertyBase, cx::BoolPropertyBase, cx::DoublePropertyTimeCalibration, cx::StringPropertyActiveVideoSource, and cx::PropertyNull.

bool cx::Property::getEnabled ( ) const

virtual

Get the enabled/disabled state of the Property.

Reimplemented in cx::PropertyNull.

Definition at line 36 of file cxProperty.cpp.

QString cx::Property::getGroup ( ) const

virtual

Flag the adapter as part of a group.

Reimplemented in cx::PropertyNull.

Definition at line 46 of file cxProperty.cpp.

virtual QString cx::Property::getUid ( ) const

pure virtual

Implemented in cx::DoublePropertyBase, cx::StringPropertyBase, cx::FilePathPropertyBase, cx::DoubleProperty, cx::BoolProperty, cx::DoublePairProperty, cx::Vector3DProperty, cx::StringProperty, cx::SpacePropertyBase, cx::ColorProperty, cx::SpaceProperty, cx::StringListProperty, cx::FilePathProperty, and cx::PropertyNull.

virtual QVariant cx::Property::getValueAsVariant ( ) const

pure virtual

Implemented in cx::DoublePropertyBase, cx::StringPropertyBase, cx::FilePathPropertyBase, cx::DoublePairPropertyBase, cx::Vector3DPropertyBase, cx::StringListProperty, cx::ColorPropertyBase, cx::FilePathProperty, cx::SpacePropertyBase, cx::BoolPropertyBase, and cx::PropertyNull.

bool cx::Property::setAdvanced ( bool  advanced )

virtualslot

Set the advanced flag of the adapter.

Reimplemented in cx::PropertyNull.

Definition at line 63 of file cxProperty.cpp.

bool cx::Property::setEnabled ( bool  enabled )

virtualslot

Set the enabled/disabled state of the Property.

Reimplemented in cx::PropertyNull.

Definition at line 51 of file cxProperty.cpp.

bool cx::Property::setGroup ( QString  name )

virtualslot

Flag the adapter as part of a group.

Reimplemented in cx::PropertyNull.

Definition at line 74 of file cxProperty.cpp.

virtual void cx::Property::setValueFromVariant ( QVariant  val )

pure virtual

Implemented in cx::DoublePropertyBase, cx::StringPropertyBase, cx::FilePathPropertyBase, cx::DoublePairPropertyBase, cx::Vector3DPropertyBase, cx::ColorPropertyBase, cx::StringListProperty, cx::SpacePropertyBase, cx::BoolPropertyBase, cx::FilePathProperty, and cx::PropertyNull.

Member Data Documentation

bool cx::Property::mAdvanced

protected

Definition at line 74 of file cxProperty.h.

bool cx::Property::mEnabled

protected

Definition at line 73 of file cxProperty.h.

QString cx::Property::mGroup

protected

Definition at line 75 of file cxProperty.h.

---

The documentation for this class was generated from the following files:

• /media/dev/bamboodrive/b/xml-data/build-dir/FX-NOS-JOB1/CX/CX/source/resource/core/properties/cxProperty.h
• /media/dev/bamboodrive/b/xml-data/build-dir/FX-NOS-JOB1/CX/CX/source/resource/core/properties/cxProperty.cpp
