cx::ViewCollectionWidget Class Reference

#include <cxViewCollectionWidget.h>

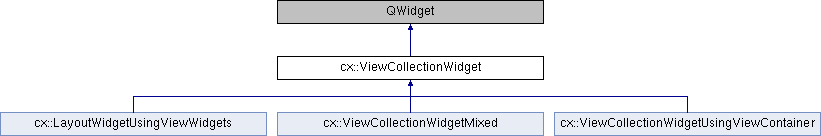

Inheritance diagram for cx::ViewCollectionWidget:

Signals
void	rendered ()

Public Member Functions
virtual	~ViewCollectionWidget ()
virtual ViewPtr	addView (View::Type type, LayoutRegion region)=0
virtual void	clearViews ()=0
virtual void	setModified ()=0
virtual void	render ()=0
virtual void	setGridSpacing (int val)=0
virtual void	setGridMargin (int val)=0
virtual int	getGridSpacing () const =0
virtual int	getGridMargin () const =0
virtual std::vector< ViewPtr >	getViews ()=0
virtual QPoint	getPosition (ViewPtr view)=0

Static Public Member Functions
static QPointer < ViewCollectionWidget >	createViewWidgetLayout (QWidget *parent=NULL)
static QPointer < ViewCollectionWidget >	createOptimizedLayout (QWidget *parent=NULL)

Protected Member Functions
	ViewCollectionWidget (QWidget *parent)

Detailed Description

Widget for displaying Views.

This is the main class for displaying visualizations. Add Views using addView(), then add Reps to the Views.

Date

2013-11-05

2014-09-26

Author

christiana

Definition at line 60 of file cxViewCollectionWidget.h.

Constructor & Destructor Documentation

virtual cx::ViewCollectionWidget::~ViewCollectionWidget ( )

inlinevirtual

Definition at line 67 of file cxViewCollectionWidget.h.

cx::ViewCollectionWidget::ViewCollectionWidget ( QWidget *  parent )

inlineprotected

Definition at line 88 of file cxViewCollectionWidget.h.

Member Function Documentation

virtual ViewPtr cx::ViewCollectionWidget::addView ( View::Type  type, LayoutRegion  region  )

pure virtual

Implemented in cx::ViewCollectionWidgetMixed, cx::ViewCollectionWidgetUsingViewContainer, and cx::LayoutWidgetUsingViewWidgets.

virtual void cx::ViewCollectionWidget::clearViews ( )

pure virtual

Implemented in cx::ViewCollectionWidgetMixed, cx::ViewCollectionWidgetUsingViewContainer, and cx::LayoutWidgetUsingViewWidgets.

QPointer< ViewCollectionWidget > cx::ViewCollectionWidget::createOptimizedLayout ( QWidget *  parent = NULL )

static

Definition at line 56 of file cxViewCollectionWidget.cpp.

QPointer< ViewCollectionWidget > cx::ViewCollectionWidget::createViewWidgetLayout ( QWidget *  parent = NULL )

static

Definition at line 49 of file cxViewCollectionWidget.cpp.

virtual int cx::ViewCollectionWidget::getGridMargin ( ) const

pure virtual

Implemented in cx::ViewCollectionWidgetMixed, cx::ViewCollectionWidgetUsingViewContainer, and cx::LayoutWidgetUsingViewWidgets.

virtual int cx::ViewCollectionWidget::getGridSpacing ( ) const

pure virtual

Implemented in cx::ViewCollectionWidgetMixed, cx::ViewCollectionWidgetUsingViewContainer, and cx::LayoutWidgetUsingViewWidgets.

virtual QPoint cx::ViewCollectionWidget::getPosition ( ViewPtr  view )

pure virtual

Get the position of the Upper Left corner of the view, given in qt-coordinates of this (the ViewCollectionWidget).

Implemented in cx::ViewCollectionWidgetMixed, cx::ViewCollectionWidgetUsingViewContainer, and cx::LayoutWidgetUsingViewWidgets.

virtual std::vector<ViewPtr> cx::ViewCollectionWidget::getViews ( )

pure virtual

Implemented in cx::ViewCollectionWidgetMixed, cx::ViewCollectionWidgetUsingViewContainer, and cx::LayoutWidgetUsingViewWidgets.

virtual void cx::ViewCollectionWidget::render ( )

pure virtual

Implemented in cx::ViewCollectionWidgetMixed, cx::ViewCollectionWidgetUsingViewContainer, and cx::LayoutWidgetUsingViewWidgets.

void cx::ViewCollectionWidget::rendered ( )

signal

virtual void cx::ViewCollectionWidget::setGridMargin ( int  val )

pure virtual

Implemented in cx::ViewCollectionWidgetMixed, cx::ViewCollectionWidgetUsingViewContainer, and cx::LayoutWidgetUsingViewWidgets.

virtual void cx::ViewCollectionWidget::setGridSpacing ( int  val )

pure virtual

Implemented in cx::ViewCollectionWidgetMixed, cx::ViewCollectionWidgetUsingViewContainer, and cx::LayoutWidgetUsingViewWidgets.

virtual void cx::ViewCollectionWidget::setModified ( )

pure virtual

Implemented in cx::ViewCollectionWidgetMixed, cx::ViewCollectionWidgetUsingViewContainer, and cx::LayoutWidgetUsingViewWidgets.

---

The documentation for this class was generated from the following files:

• /media/jenkins/bamboo/buildagent/xml-data/build-dir/FX-RE-JOB1/CX/CX/source/resource/view/View/cxViewCollectionWidget.h
• /media/jenkins/bamboo/buildagent/xml-data/build-dir/FX-RE-JOB1/CX/CX/source/resource/view/View/cxViewCollectionWidget.cpp
