cx::View Class Reference

#include <cxView.h>

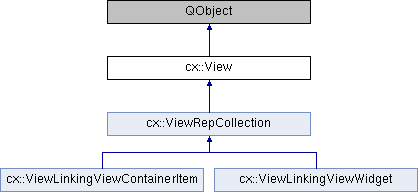

Inheritance diagram for cx::View:

Public Types
enum	Type { VIEW, VIEW_2D, VIEW_3D, VIEW_REAL_TIME }

Signals
void	resized (QSize size)
void	mouseMove (int x, int y, Qt::MouseButtons buttons)
void	mousePress (int x, int y, Qt::MouseButtons buttons)
void	mouseRelease (int x, int y, Qt::MouseButtons buttons)
void	mouseWheel (int x, int y, int delta, int orientation, Qt::MouseButtons buttons)
void	shown ()
void	focusChange (bool gotFocus, Qt::FocusReason reason)
void	customContextMenuRequested (const QPoint &)

Public Member Functions
virtual	~View ()
virtual Type	getType () const =0
virtual QString	getTypeString () const =0
virtual QString	getUid ()=0
	Get a views unique id. More...
virtual QString	getName ()=0
	Get a views name. More...
virtual void	addRep (const RepPtr &rep)=0
	Adds and connects a rep to the view. More...
virtual void	removeRep (const RepPtr &rep)=0
	Removes and disconnects the rep from the view. More...
virtual bool	hasRep (const RepPtr &rep) const =0
	Checks if the view already have the rep. More...
virtual std::vector< RepPtr >	getReps ()=0
	Returns all reps in the view. More...
virtual void	removeReps ()=0
	Removes all reps in the view. More...
virtual vtkRendererPtr	getRenderer () const =0
	Get the renderer used by this View. More...
virtual vtkRenderWindowPtr	getRenderWindow () const =0
virtual void	setModified ()=0
virtual void	setBackgroundColor (QColor color)=0
virtual QSize	size () const =0
virtual void	setZoomFactor (double factor)=0
virtual double	getZoomFactor () const =0
virtual Transform3D	get_vpMs () const =0
virtual DoubleBoundingBox3D	getViewport () const =0
virtual DoubleBoundingBox3D	getViewport_s () const =0

Detailed Description

Base widget for displaying representations (Rep).

Use a ViewCollectionWidget to create Views.

A View represents one visualization scene, wrapping a vtkRenderer, vtkCamera and a vtkRenderWindow. The vtkRenderWindow might be shared with other Views.

Add reps to the View in order to visualize them. Although any Rep can be added to a View, it makes most sense to dedicate each view for either 2D, 3D or Video display. Most Reps are specialized to one of these three modes.

Definition at line 69 of file cxView.h.

Member Enumeration Documentation

enum cx::View::Type

Enumerator
VIEW
VIEW_2D
VIEW_3D
VIEW_REAL_TIME

Definition at line 73 of file cxView.h.

Constructor & Destructor Documentation

virtual cx::View::~View ( )

inlinevirtual

Definition at line 78 of file cxView.h.

Member Function Documentation

virtual void cx::View::addRep ( const RepPtr &  rep )

pure virtual

Adds and connects a rep to the view.

Implemented in cx::ViewRepCollection.

void cx::View::customContextMenuRequested ( const QPoint &  )

signal

void cx::View::focusChange ( bool  gotFocus, Qt::FocusReason  reason  )

signal

virtual Transform3D cx::View::get_vpMs ( ) const

pure virtual

Implemented in cx::ViewLinkingViewWidget, and cx::ViewLinkingViewContainerItem.

virtual QString cx::View::getName ( )

pure virtual

Get a views name.

Implemented in cx::ViewRepCollection.

virtual vtkRendererPtr cx::View::getRenderer ( ) const

pure virtual

Get the renderer used by this View.

Implemented in cx::ViewRepCollection.

virtual vtkRenderWindowPtr cx::View::getRenderWindow ( ) const

pure virtual

Implemented in cx::ViewRepCollection.

virtual std::vector<RepPtr> cx::View::getReps ( )

pure virtual

Returns all reps in the view.

Implemented in cx::ViewRepCollection.

virtual Type cx::View::getType ( ) const

pure virtual

Implemented in cx::ViewRepCollection.

virtual QString cx::View::getTypeString ( ) const

pure virtual

Implemented in cx::ViewRepCollection.

virtual QString cx::View::getUid ( )

pure virtual

Get a views unique id.

Implemented in cx::ViewRepCollection.

virtual DoubleBoundingBox3D cx::View::getViewport ( ) const

pure virtual

Implemented in cx::ViewLinkingViewWidget, and cx::ViewLinkingViewContainerItem.

virtual DoubleBoundingBox3D cx::View::getViewport_s ( ) const

pure virtual

Implemented in cx::ViewLinkingViewWidget, and cx::ViewLinkingViewContainerItem.

virtual double cx::View::getZoomFactor ( ) const

pure virtual

Implemented in cx::ViewLinkingViewWidget, and cx::ViewLinkingViewContainerItem.

virtual bool cx::View::hasRep ( const RepPtr &  rep ) const

pure virtual

Checks if the view already have the rep.

Implemented in cx::ViewRepCollection.

void cx::View::mouseMove ( int  x, int  y, Qt::MouseButtons  buttons  )

signal

void cx::View::mousePress ( int  x, int  y, Qt::MouseButtons  buttons  )

signal

void cx::View::mouseRelease ( int  x, int  y, Qt::MouseButtons  buttons  )

signal

void cx::View::mouseWheel ( int  x, int  y, int  delta, int  orientation, Qt::MouseButtons  buttons  )

signal

virtual void cx::View::removeRep ( const RepPtr &  rep )

pure virtual

Removes and disconnects the rep from the view.

Implemented in cx::ViewRepCollection.

virtual void cx::View::removeReps ( )

pure virtual

Removes all reps in the view.

Implemented in cx::ViewRepCollection.

void cx::View::resized ( QSize  size )

signal

virtual void cx::View::setBackgroundColor ( QColor  color )

pure virtual

Implemented in cx::ViewRepCollection.

virtual void cx::View::setModified ( )

pure virtual

Implemented in cx::ViewRepCollection.

virtual void cx::View::setZoomFactor ( double  factor )

pure virtual

Implemented in cx::ViewLinkingViewWidget, and cx::ViewLinkingViewContainerItem.

void cx::View::shown ( )

signal

virtual QSize cx::View::size ( ) const

pure virtual

Implemented in cx::ViewLinkingViewWidget, and cx::ViewLinkingViewContainerItem.

---

The documentation for this class was generated from the following file:

• /media/jenkins/bamboo/buildagent/xml-data/build-dir/FX-RE-JOB1/CX/CX/source/resource/view/View/cxView.h
