cx::ToolImpl Class Reference

Common functionality for Tool subclasses. More...

#include <cxToolImpl.h>

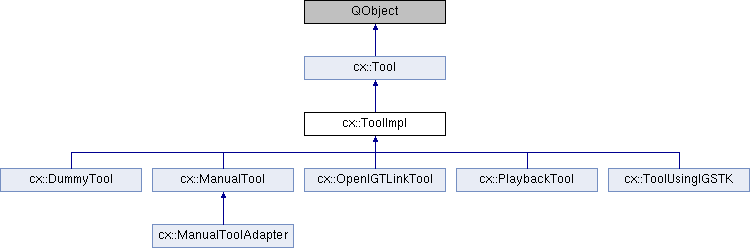

Inheritance diagram for cx::ToolImpl:
cx::Tool cx::DummyTool cx::ManualTool cx::OpenIGTLinkTool cx::PlaybackTool cx::ToolUsingIGSTK cx::ManualToolAdapter

Public Member Functions

 ToolImpl (const QString &uid="", const QString &name="")

virtual ~ToolImpl ()

virtual TimedTransformMapPtr getPositionHistory ()
 get historical positions More...

virtual TimedTransformMap getSessionHistory (double startTime, double stopTime)

virtual Transform3D get_prMt () const

virtual ToolPositionMetadata getMetadata () const

virtual const std::map< double,
ToolPositionMetadata > &
getMetadataHistory ()

virtual double getTooltipOffset () const
 get a virtual offset extending from the tool tip. More...

virtual void setTooltipOffset (double val)
 set a virtual offset extending from the tool tip. More...

virtual void resetTrackingPositionFilter (TrackingPositionFilterPtr filter)

virtual bool isNull ()

virtual void addXml (QDomNode &dataNode)

virtual void parseXml (QDomNode &dataNode)

- Public Member Functions inherited from cx::Tool
 Tool (const QString &uid="", const QString &name="")

virtual ~Tool ()

virtual std::set< TypegetTypes () const =0

virtual bool hasType (Type type) const

virtual vtkPolyDataPtr getGraphicsPolyData () const =0
 get geometric 3D description More...

virtual bool getVisible () const =0

virtual bool isInitialized () const

virtual QString getUid () const =0

virtual QString getName () const =0

virtual bool isCalibrated () const =0
 a tool may not be calibrated, then no tracking i allowed More...

virtual Transform3D getCalibration_sMt () const =0
 get the calibration transform from tool space to sensor space (where the spheres or similar live) More...

virtual void setCalibration_sMt (Transform3D calibration)
 requests to use the calibration and replaces the tools calibration file More...

virtual ProbePtr getProbe () const
 additional information if the tool represents an US Probe. Extends getProbeSector() More...

virtual double getTimestamp () const =0
 latest valid timestamp for the position matrix. 0 means indeterminate (for f.ex. manual tools) More...

virtual void printSelf (std::ostream &os, Indent indent)
 dump internal debug data More...

virtual std::map< int, Vector3DgetReferencePoints () const
 Get the optional reference points from this tool. More...

virtual bool hasReferencePointWithId (int id)

virtual void setVisible (bool vis)=0
 if available for this type, set visibility More...


Protected Member Functions

virtual void set_prMt (const Transform3D &prMt, double timestamp)
 if available for this type, set pos, ts<0 means use current time More...


Protected Attributes

TimedTransformMapPtr mPositionHistory

Transform3D m_prMt
 the transform from the tool to the patient reference More...

TrackingPositionFilterPtr mTrackingPositionFilter

std::map< double,
ToolPositionMetadata
mMetadata

- Protected Attributes inherited from cx::Tool
QString mUid

QString mName


Additional Inherited Members

- Public Types inherited from cx::Tool
enum  State { tsNONE =0, tsCONFIGURED, tsINITIALIZED, tsTRACKING }

enum  Type {
  TOOL_NONE, TOOL_REFERENCE, TOOL_MANUAL, TOOL_POINTER,
  TOOL_US_PROBE, TOOL_MICROSCOPE
}

- Signals inherited from cx::Tool
void toolTransformAndTimestamp (Transform3D matrix, double timestamp)

void toolVisible (bool visible)

void tooltipOffset (double offset)

void toolProbeSector ()

void tps (int)

- Static Public Member Functions inherited from cx::Tool
static vtkPolyDataPtr createDefaultPolyDataCone ()

static ToolPtr getNullObject ()


Detailed Description

Common functionality for Tool subclasses.

Date
2014-02-21
Author
christiana

Definition at line 50 of file cxToolImpl.h.

Constructor & Destructor Documentation

cx::ToolImpl::ToolImpl ( const QString &  uid = "",
const QString &  name = ""
)
explicit

Definition at line 40 of file cxToolImpl.cpp.

cx::ToolImpl::~ToolImpl ( )
virtual

Definition at line 48 of file cxToolImpl.cpp.

Member Function Documentation

virtual void cx::ToolImpl::addXml ( QDomNode &  dataNode)
inlinevirtual

Reimplemented in cx::ToolUsingIGSTK.

Definition at line 70 of file cxToolImpl.h.

Transform3D cx::ToolImpl::get_prMt ( ) const
virtual

Implements cx::Tool.

Reimplemented in cx::PlaybackTool.

Definition at line 92 of file cxToolImpl.cpp.

ToolPositionMetadata cx::ToolImpl::getMetadata ( ) const
virtual

Implements cx::Tool.

Definition at line 53 of file cxToolImpl.cpp.

const std::map< double, ToolPositionMetadata > & cx::ToolImpl::getMetadataHistory ( )
virtual

Implements cx::Tool.

Definition at line 60 of file cxToolImpl.cpp.

TimedTransformMapPtr cx::ToolImpl::getPositionHistory ( )
virtual

get historical positions

Implements cx::Tool.

Reimplemented in cx::PlaybackTool.

Definition at line 78 of file cxToolImpl.cpp.

TimedTransformMap cx::ToolImpl::getSessionHistory ( double  startTime,
double  stopTime
)
virtual

Implements cx::Tool.

Reimplemented in cx::PlaybackTool.

Definition at line 83 of file cxToolImpl.cpp.

double cx::ToolImpl::getTooltipOffset ( ) const
virtual

get a virtual offset extending from the tool tip.

Reimplemented from cx::Tool.

Reimplemented in cx::ToolUsingIGSTK, cx::OpenIGTLinkTool, cx::ManualToolAdapter, and cx::PlaybackTool.

Definition at line 65 of file cxToolImpl.cpp.

virtual bool cx::ToolImpl::isNull ( )
inlinevirtual

Implements cx::Tool.

Definition at line 68 of file cxToolImpl.h.

virtual void cx::ToolImpl::parseXml ( QDomNode &  dataNode)
inlinevirtual

Reimplemented in cx::ToolUsingIGSTK.

Definition at line 71 of file cxToolImpl.h.

void cx::ToolImpl::resetTrackingPositionFilter ( TrackingPositionFilterPtr  filter)
virtual

Implements cx::Tool.

Definition at line 110 of file cxToolImpl.cpp.

void cx::ToolImpl::set_prMt ( const Transform3D prMt,
double  timestamp
)
protectedvirtual

if available for this type, set pos, ts<0 means use current time

Implements cx::Tool.

Reimplemented in cx::ToolUsingIGSTK, cx::PlaybackTool, and cx::ManualTool.

Definition at line 97 of file cxToolImpl.cpp.

void cx::ToolImpl::setTooltipOffset ( double  val)
virtual

set a virtual offset extending from the tool tip.

Reimplemented from cx::Tool.

Reimplemented in cx::ToolUsingIGSTK, cx::OpenIGTLinkTool, cx::ManualToolAdapter, and cx::PlaybackTool.

Definition at line 70 of file cxToolImpl.cpp.

Member Data Documentation

Transform3D cx::ToolImpl::m_prMt
protected

the transform from the tool to the patient reference

Definition at line 76 of file cxToolImpl.h.

std::map<double, ToolPositionMetadata> cx::ToolImpl::mMetadata
protected

Definition at line 78 of file cxToolImpl.h.

TimedTransformMapPtr cx::ToolImpl::mPositionHistory
protected

Definition at line 75 of file cxToolImpl.h.

TrackingPositionFilterPtr cx::ToolImpl::mTrackingPositionFilter
protected

Definition at line 77 of file cxToolImpl.h.


The documentation for this class was generated from the following files:
