Composite widget for scalar data manipulation. More...

#include <cxDoubleWidgets.h>

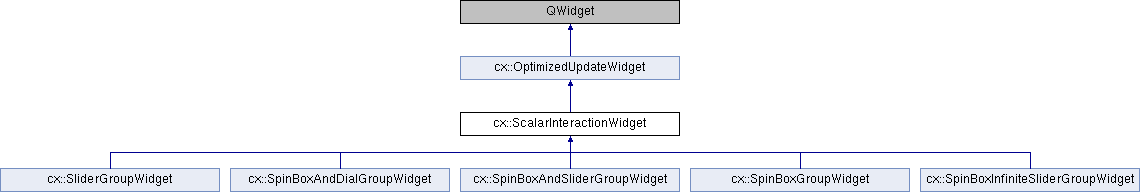

Inheritance diagram for cx::ScalarInteractionWidget:

Public Member Functions
	ScalarInteractionWidget (QWidget *parent, DoublePropertyBasePtr)

void	enableLabel ()

void	enableSlider ()

void	enableDial ()

void	enableEdit ()

void	enableSpinBox ()

void	enableInfiniteSlider ()

void	addToOwnLayout ()

void	addToGridLayout (QGridLayout *gridLayout=0, int row=0)

void	build (QGridLayout *gridLayout=0, int row=0)

void	showLabel (bool on)

Public Member Functions inherited from cx::OptimizedUpdateWidget
	OptimizedUpdateWidget (QWidget *parent=NULL)

virtual	~OptimizedUpdateWidget ()

void	forcePrePaint ()

Protected Member Functions
virtual void	prePaintEvent ()

Protected Member Functions inherited from cx::OptimizedUpdateWidget
virtual void	paintEvent (QPaintEvent *event)

Protected Attributes
DoublePropertyBasePtr	mData

Additional Inherited Members
Public Slots inherited from cx::OptimizedUpdateWidget
virtual void	setModified ()

Detailed Description

Composite widget for scalar data manipulation.

Consists of <namelabel, valueedit, slider>. Insert a subclass of DoublePropertyBasePtr in order to connect to data.

Before use: enable the widgets you need, then add either to Own layout, in case you wish to use the widget normally, or add to grid, in case you wish to integrate the elements into a larger grid.

Definition at line 126 of file cxDoubleWidgets.h.

Constructor & Destructor Documentation

◆ ScalarInteractionWidget()

cx::ScalarInteractionWidget::ScalarInteractionWidget	(	QWidget *	parent,
		DoublePropertyBasePtr	dataInterface
	)

Definition at line 24 of file cxDoubleWidgets.cpp.

Member Function Documentation

◆ addToGridLayout()

void cx::ScalarInteractionWidget::addToGridLayout	(	QGridLayout *	gridLayout = `0`,
		int	row = `0`
	)

Layout all widgets into the input grid, including this.

Definition at line 117 of file cxDoubleWidgets.cpp.

◆ addToOwnLayout()

void cx::ScalarInteractionWidget::addToOwnLayout ( )

Layout all widgets in this, horizontal style.

Definition at line 93 of file cxDoubleWidgets.cpp.

◆ build()

void cx::ScalarInteractionWidget::build	(	QGridLayout *	gridLayout = `0`,
		int	row = `0`
	)

Definition at line 141 of file cxDoubleWidgets.cpp.

◆ enableDial()

void cx::ScalarInteractionWidget::enableDial ( )

Definition at line 52 of file cxDoubleWidgets.cpp.

◆ enableEdit()

void cx::ScalarInteractionWidget::enableEdit ( )

Definition at line 78 of file cxDoubleWidgets.cpp.

◆ enableInfiniteSlider()

void cx::ScalarInteractionWidget::enableInfiniteSlider ( )

Definition at line 61 of file cxDoubleWidgets.cpp.

◆ enableLabel()

void cx::ScalarInteractionWidget::enableLabel ( )

Definition at line 32 of file cxDoubleWidgets.cpp.

◆ enableSlider()

void cx::ScalarInteractionWidget::enableSlider ( )

Definition at line 44 of file cxDoubleWidgets.cpp.

◆ enableSpinBox()

void cx::ScalarInteractionWidget::enableSpinBox ( )

Definition at line 84 of file cxDoubleWidgets.cpp.

◆ prePaintEvent()

void cx::ScalarInteractionWidget::prePaintEvent ( )

protectedvirtual

Implement to perform expensive operations that need only be called once per paint. Use setModified() to trigger this method.

Reimplemented from cx::OptimizedUpdateWidget.

Definition at line 195 of file cxDoubleWidgets.cpp.

◆ showLabel()

void cx::ScalarInteractionWidget::showLabel ( bool on )

Definition at line 38 of file cxDoubleWidgets.cpp.

Member Data Documentation

◆ mData

DoublePropertyBasePtr cx::ScalarInteractionWidget::mData

protected

Definition at line 153 of file cxDoubleWidgets.h.

The documentation for this class was generated from the following files:

/mnt/bamboo/bamboo/buildagent/xml-data/build-dir/NN-NI-BU2/CX/CX/source/resource/widgets/cxDoubleWidgets.h
/mnt/bamboo/bamboo/buildagent/xml-data/build-dir/NN-NI-BU2/CX/CX/source/resource/widgets/cxDoubleWidgets.cpp
