cx::LogMessageDisplayWidget Class Reference

#include <cxConsoleWidget.h>

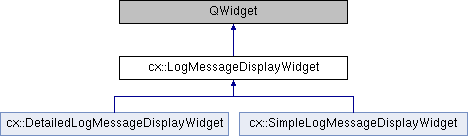

Inheritance diagram for cx::LogMessageDisplayWidget:

Public Member Functions
	LogMessageDisplayWidget (QWidget *parent)
virtual	~LogMessageDisplayWidget ()
virtual void	clear ()=0
virtual void	add (const Message &message)=0
virtual void	normalize ()=0
virtual QString	getType () const =0
virtual void	setScrollToBottom (bool on)=0
virtual void	showHeader (bool on)=0

Protected Member Functions
void	createTextCharFormats ()
	sets up the formating rules for the message levels More...

Protected Attributes
std::map< MESSAGE_LEVEL, QTextCharFormat >	mFormat

Detailed Description

Definition at line 36 of file cxConsoleWidget.h.

Constructor & Destructor Documentation

LogMessageDisplayWidget()

cx::LogMessageDisplayWidget::LogMessageDisplayWidget

(

QWidget *

parent

)

< sets up the formating rules for the message levels

Definition at line 44 of file cxConsoleWidget.cpp.

~LogMessageDisplayWidget()

virtual cx::LogMessageDisplayWidget::~LogMessageDisplayWidget ( )

inlinevirtual

Definition at line 40 of file cxConsoleWidget.h.

Member Function Documentation

add()

virtual void cx::LogMessageDisplayWidget::add ( const Message &  message )

pure virtual

Implemented in cx::SimpleLogMessageDisplayWidget, and cx::DetailedLogMessageDisplayWidget.

clear()

virtual void cx::LogMessageDisplayWidget::clear ( )

pure virtual

Implemented in cx::SimpleLogMessageDisplayWidget, and cx::DetailedLogMessageDisplayWidget.

createTextCharFormats()

void cx::LogMessageDisplayWidget::createTextCharFormats ( )

protected

sets up the formating rules for the message levels

Definition at line 49 of file cxConsoleWidget.cpp.

getType()

virtual QString cx::LogMessageDisplayWidget::getType ( ) const

pure virtual

Implemented in cx::SimpleLogMessageDisplayWidget, and cx::DetailedLogMessageDisplayWidget.

normalize()

virtual void cx::LogMessageDisplayWidget::normalize ( )

pure virtual

Implemented in cx::SimpleLogMessageDisplayWidget, and cx::DetailedLogMessageDisplayWidget.

setScrollToBottom()

virtual void cx::LogMessageDisplayWidget::setScrollToBottom ( bool  on )

pure virtual

Implemented in cx::SimpleLogMessageDisplayWidget, and cx::DetailedLogMessageDisplayWidget.

showHeader()

virtual void cx::LogMessageDisplayWidget::showHeader ( bool  on )

pure virtual

Implemented in cx::SimpleLogMessageDisplayWidget, and cx::DetailedLogMessageDisplayWidget.

Member Data Documentation

mFormat

std::map<MESSAGE_LEVEL, QTextCharFormat> cx::LogMessageDisplayWidget::mFormat

protected

Definition at line 49 of file cxConsoleWidget.h.

---

The documentation for this class was generated from the following files:

• /mnt/bamboo/bamboo/buildagent/xml-data/build-dir/NN-NI-BU2/CX/CX/source/resource/widgets/cxConsoleWidget.h
• /mnt/bamboo/bamboo/buildagent/xml-data/build-dir/NN-NI-BU2/CX/CX/source/resource/widgets/cxConsoleWidget.cpp
