cx::DoublePropertyBase Class Referenceabstract
Core » Property

#include <cxDoublePropertyBase.h>

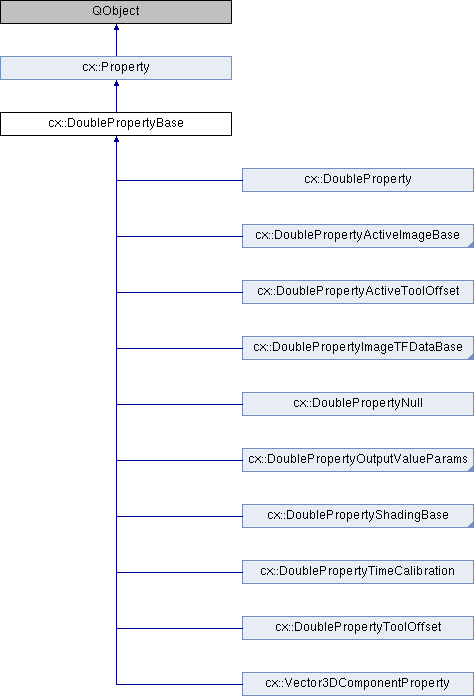

Inheritance diagram for cx::DoublePropertyBase:
cx::Property cx::DoubleProperty cx::DoublePropertyActiveImageBase cx::DoublePropertyActiveToolOffset cx::DoublePropertyImageTFDataBase cx::DoublePropertyNull cx::DoublePropertyOutputValueParams cx::DoublePropertyShadingBase cx::DoublePropertyTimeCalibration cx::DoublePropertyToolOffset cx::Vector3DComponentProperty

Public Types

enum  GuiRepresentation { grSPINBOX, grSLIDER, grDIAL }


Public Member Functions

 DoublePropertyBase ()

virtual ~DoublePropertyBase ()

virtual QString getDisplayName () const =0
 name of data entity. Used for display to user. More...

virtual QVariant getValueAsVariant () const

virtual void setValueFromVariant (QVariant val)

virtual QString getUid () const

virtual bool setValue (double value)=0
 set the data value. More...

virtual double getValue () const =0
 get the data value. More...

virtual void setGuiRepresentation (GuiRepresentation type)

virtual GuiRepresentation getGuiRepresentation ()

virtual DoubleRange getValueRange () const

- Public Member Functions inherited from cx::Property
 Property ()

virtual ~Property ()

virtual bool getEnabled () const
 Get the enabled/disabled state of the Property. More...

virtual bool getAdvanced () const
 Get the advanced flag of the adapter. More...

virtual QString getGroup () const
 Flag the adapter as part of a group. More...


Protected Attributes

GuiRepresentation mGuiRepresentation

- Protected Attributes inherited from cx::Property
bool mEnabled

bool mAdvanced

QString mGroup


Additional Inherited Members

- Public Slots inherited from cx::Property
virtual bool setEnabled (bool enabled)
 Set the enabled/disabled state of the Property. More...

virtual bool setAdvanced (bool advanced)
 Set the advanced flag of the adapter. More...

virtual bool setGroup (QString name)
 Flag the adapter as part of a group. More...

- Signals inherited from cx::Property
void changed ()
 emit when the underlying data value is changed: The user interface will be updated. More...

- Static Public Member Functions inherited from cx::Property
static PropertyPtr findProperty (std::vector< PropertyPtr > properties, QString id)


Detailed Description

Abstract interface for interaction with internal double-valued data

The class provides a bridge between general user interface code and specific data structures. An implementation connects to a single data value.

Minimal implementation:

    virtual QString getDisplayName() const;
    virtual bool setValue(double value);
    virtual double getValue() const;
    void changed();

By implementing these methods you can set and get values, and the data has a name. The changed() signal is used to make sure the user interface is updated even when data is changed by some other source.

For more control use the methods:

    virtual DoubleRange getValueRange() const;
    virtual int getValueDecimals() const;

If there is a difference between the internal data representation and how you want to present them, use:

    virtual double convertInternal2Display(double internal);
    virtual double convertDisplay2Internal(double display);

When testing, or during development, you can use the DoublePropertyNull as a dummy implementation.

Definition at line 70 of file cxDoublePropertyBase.h.

Member Enumeration Documentation

◆ GuiRepresentation

enum cx::DoublePropertyBase::GuiRepresentation
Enumerator
grSPINBOX
grSLIDER
grDIAL

Definition at line 78 of file cxDoublePropertyBase.h.

Constructor & Destructor Documentation

◆ DoublePropertyBase()

cx::DoublePropertyBase::DoublePropertyBase ( )
inline

Definition at line 74 of file cxDoublePropertyBase.h.

◆ ~DoublePropertyBase()

virtual cx::DoublePropertyBase::~DoublePropertyBase ( )
inlinevirtual

Definition at line 75 of file cxDoublePropertyBase.h.

Member Function Documentation

◆ getDisplayName()

virtual QString cx::DoublePropertyBase::getDisplayName ( ) const
pure virtual

name of data entity. Used for display to user.

Implements cx::Property.

Implemented in cx::DoublePropertyNull, cx::DoubleProperty2DLevel, cx::DoubleProperty2DWindow, cx::DoublePropertyImageTFDataAlpha, cx::DoublePropertyZDim, cx::DoublePropertyImageTFDataLLR, cx::DoublePropertyShadingSpecularPower, cx::DoublePropertyYDim, cx::DoublePropertyImageTFDataLevel, cx::DoublePropertyShadingSpecular, cx::DoublePropertyXDim, cx::DoublePropertyToolOffset, cx::DoublePropertyImageTFDataWindow, cx::DoublePropertyShadingDiffuse, cx::DoublePropertySpacing, cx::DoubleProperty, cx::DoublePropertyShadingAmbient, cx::DoublePropertyActiveToolOffset, cx::Vector3DComponentProperty, and cx::DoublePropertyTimeCalibration.

◆ getGuiRepresentation()

virtual GuiRepresentation cx::DoublePropertyBase::getGuiRepresentation ( )
inlinevirtual

Definition at line 103 of file cxDoublePropertyBase.h.

◆ getUid()

virtual QString cx::DoublePropertyBase::getUid ( ) const
inlinevirtual

Implements cx::Property.

Reimplemented in cx::DoubleProperty.

Definition at line 98 of file cxDoublePropertyBase.h.

◆ getValue()

virtual double cx::DoublePropertyBase::getValue ( ) const
pure virtual

get the data value.

Implemented in cx::DoublePropertyNull, cx::DoublePropertyActiveImageBase, cx::DoublePropertyShadingSpecularPower, cx::DoublePropertyShadingSpecular, cx::DoublePropertyToolOffset, cx::DoublePropertyShadingDiffuse, cx::DoubleProperty, cx::DoublePropertyShadingAmbient, cx::DoublePropertyActiveToolOffset, cx::DoublePropertyImageTFDataBase, cx::Vector3DComponentProperty, cx::DoublePropertyOutputValueParams, and cx::DoublePropertyTimeCalibration.

◆ getValueAsVariant()

virtual QVariant cx::DoublePropertyBase::getValueAsVariant ( ) const
inlinevirtual

Implements cx::Property.

Definition at line 88 of file cxDoublePropertyBase.h.

◆ getValueRange()

virtual DoubleRange cx::DoublePropertyBase::getValueRange ( ) const
inlinevirtual

Reimplemented in cx::DoubleProperty2DLevel, cx::DoubleProperty2DWindow, cx::DoublePropertyImageTFDataAlpha, cx::DoublePropertyZDim, cx::DoublePropertyImageTFDataLLR, cx::DoublePropertyShadingSpecularPower, cx::DoublePropertyYDim, cx::DoublePropertyImageTFDataLevel, cx::DoublePropertyShadingSpecular, cx::DoublePropertyToolOffset, cx::DoublePropertyXDim, cx::DoublePropertyImageTFDataWindow, cx::DoublePropertyShadingDiffuse, cx::DoubleProperty, cx::DoublePropertySpacing, cx::DoublePropertyShadingAmbient, cx::DoublePropertyActiveToolOffset, cx::Vector3DComponentProperty, and cx::DoublePropertyTimeCalibration.

Definition at line 111 of file cxDoublePropertyBase.h.

◆ setGuiRepresentation()

virtual void cx::DoublePropertyBase::setGuiRepresentation ( GuiRepresentation  type)
inlinevirtual

Definition at line 102 of file cxDoublePropertyBase.h.

◆ setValue()

virtual bool cx::DoublePropertyBase::setValue ( double  value)
pure virtual

set the data value.

Implemented in cx::DoublePropertyNull, cx::DoubleProperty, cx::Vector3DComponentProperty, cx::DoublePropertyActiveImageBase, cx::DoublePropertyShadingSpecularPower, cx::DoublePropertyShadingSpecular, cx::DoublePropertyToolOffset, cx::DoublePropertyShadingDiffuse, cx::DoublePropertyShadingAmbient, cx::DoublePropertyActiveToolOffset, cx::DoublePropertyImageTFDataBase, cx::DoublePropertyOutputValueParams, and cx::DoublePropertyTimeCalibration.

◆ setValueFromVariant()

virtual void cx::DoublePropertyBase::setValueFromVariant ( QVariant  val)
inlinevirtual

Implements cx::Property.

Definition at line 92 of file cxDoublePropertyBase.h.

Member Data Documentation

◆ mGuiRepresentation

GuiRepresentation cx::DoublePropertyBase::mGuiRepresentation
protected

Definition at line 129 of file cxDoublePropertyBase.h.

The documentation for this class was generated from the following file:
