Superclass for all data objects. More...

#include <cxData.h>

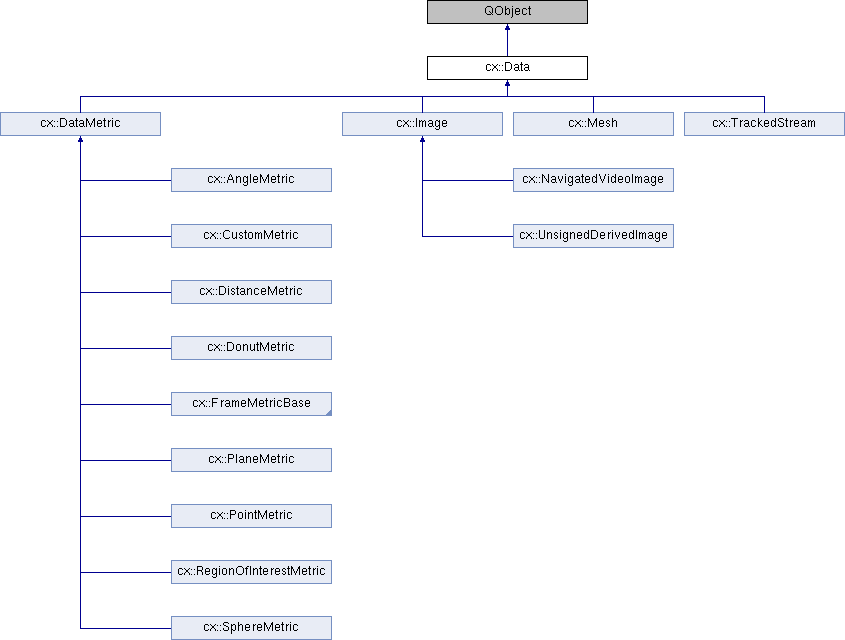

Inheritance diagram for cx::Data:

Signals
void	transformChanged ()
	emitted when transform is changed More...

void	propertiesChanged ()
	emitted when one of the metadata properties (uid, name etc) changes More...

void	clipPlanesChanged ()

Public Member Functions
	Data (const QString &uid, const QString &name="")

virtual	~Data ()

void	setUid (const QString &uid)

void	setName (const QString &name)

void	setAcquisitionTime (QDateTime time)

void	setSoftwareAcquisitionTime (QDateTime time)

void	setOriginalAcquisitionTime (QDateTime time)

virtual RegistrationHistoryPtr	get_rMd_History ()

LandmarksPtr	getLandmarks ()

virtual QString	getUid () const

virtual QString	getName () const

virtual Transform3D	get_rMd () const

virtual QDateTime	getAcquisitionTime () const

virtual TimeInfo	getAdvancedTimeInfo () const

virtual QString	getType () const

virtual QIcon	getIcon ()

virtual bool	isEqual (DataPtr metric)

virtual QString	getFilename () const

virtual void	setFilename (QString val)

virtual QString	getSpace ()

virtual QString	getParentSpace ()

virtual DoubleBoundingBox3D	boundingBox () const =0

virtual std::vector< Vector3D >	getPointCloud () const

virtual void	addXml (QDomNode &dataNode)
	adds xml information about the data and its variabels More...

virtual void	parseXml (QDomNode &dataNode)
	Use a XML node to load data. More...

virtual bool	load (QString path, FileManagerServicePtr port)=0

virtual void	save (const QString &basePath, FileManagerServicePtr port)=0

virtual CoordinateSystem	getCoordinateSystem ()

virtual void	addPersistentClipPlane (vtkPlanePtr plane)

virtual std::vector< vtkPlanePtr >	getAllClipPlanes ()

virtual void	clearPersistentClipPlanes ()

virtual void	setInteractiveClipPlane (vtkPlanePtr plane)
	set a plane that is not saved More...

void	addInteractiveClipPlane (vtkPlanePtr plane)

void	removeInteractiveClipPlane (vtkPlanePtr plane)

Protected Slots
virtual void	transformChangedSlot ()

Protected Attributes
QString	mUid

QString	mName

QString	mFilename

TimeInfo	mTimeInfo

LandmarksPtr	mLandmarks

REGISTRATION_STATUS	mRegistrationStatus

RegistrationHistoryPtr	m_rMd_History

std::vector< vtkPlanePtr >	mPersistentClipPlanes

std::vector< vtkPlanePtr >	mInteractiveClipPlanes

vtkPlanePtr	mInteractiveClipPlane

Detailed Description

Superclass for all data objects.

Example suclasses: Image and Mesh.

Definition at line 89 of file cxData.h.

Constructor & Destructor Documentation

◆ Data()

cx::Data::Data	(	const QString &	uid,
		const QString &	name = `""`
	)

Definition at line 31 of file cxData.cpp.

◆ ~Data()

cx::Data::~Data ( )

virtual

Definition at line 49 of file cxData.cpp.

Member Function Documentation

◆ addInteractiveClipPlane()

void cx::Data::addInteractiveClipPlane ( vtkPlanePtr plane )

Definition at line 259 of file cxData.cpp.

◆ addPersistentClipPlane()

void cx::Data::addPersistentClipPlane ( vtkPlanePtr plane )

virtual

Definition at line 222 of file cxData.cpp.

◆ addXml()

void cx::Data::addXml ( QDomNode & dataNode )

virtual

adds xml information about the data and its variabels

Reimplemented in cx::Image, cx::RegionOfInterestMetric, cx::PlaneMetric, cx::CustomMetric, cx::PointMetric, cx::DonutMetric, cx::DistanceMetric, cx::DataMetric, cx::Mesh, cx::AngleMetric, cx::ToolMetric, cx::SphereMetric, cx::FrameMetric, and cx::TrackedStream.

Definition at line 123 of file cxData.cpp.

◆ boundingBox()

virtual DoubleBoundingBox3D cx::Data::boundingBox ( ) const

pure virtual

Implemented in cx::Image, cx::RegionOfInterestMetric, cx::Mesh, cx::PlaneMetric, cx::CustomMetric, cx::PointMetric, cx::DonutMetric, cx::DistanceMetric, cx::AngleMetric, cx::UnsignedDerivedImage, cx::SphereMetric, cx::TrackedStream, and cx::FrameMetricBase.

◆ clearPersistentClipPlanes()

void cx::Data::clearPersistentClipPlanes ( )

virtual

Definition at line 247 of file cxData.cpp.

◆ clipPlanesChanged

void cx::Data::clipPlanesChanged ( )

signal

◆ get_rMd()

Transform3D cx::Data::get_rMd ( ) const

virtual

Returns: a descriptive name for this instance; the transform M_rd from the data object's space (d) to the reference space (r).; Transform from local data space to (data-)ref space

Reimplemented in cx::UnsignedDerivedImage, and cx::NavigatedVideoImage.

Definition at line 86 of file cxData.cpp.

◆ get_rMd_History()

RegistrationHistoryPtr cx::Data::get_rMd_History ( )

virtual

Reimplemented in cx::UnsignedDerivedImage.

Definition at line 91 of file cxData.cpp.

◆ getAcquisitionTime()

QDateTime cx::Data::getAcquisitionTime ( ) const

virtual

Get the time the data was created from a data source.

Reimplemented in cx::UnsignedDerivedImage.

Definition at line 168 of file cxData.cpp.

◆ getAdvancedTimeInfo()

TimeInfo cx::Data::getAdvancedTimeInfo ( ) const

virtual

Definition at line 184 of file cxData.cpp.

◆ getAllClipPlanes()

std::vector< vtkPlanePtr > cx::Data::getAllClipPlanes ( )

virtual

Definition at line 234 of file cxData.cpp.

◆ getCoordinateSystem()

CoordinateSystem cx::Data::getCoordinateSystem ( )

virtual

Reimplemented in cx::UnsignedDerivedImage.

Definition at line 215 of file cxData.cpp.

◆ getFilename()

QString cx::Data::getFilename ( ) const

virtual

Reimplemented in cx::UnsignedDerivedImage.

Definition at line 74 of file cxData.cpp.

◆ getIcon()

virtual QIcon cx::Data::getIcon ( )

inlinevirtual

Reimplemented in cx::Image, cx::Mesh, cx::PlaneMetric, cx::PointMetric, cx::SphereMetric, cx::ToolMetric, cx::AngleMetric, cx::DataMetric, cx::CustomMetric, cx::DonutMetric, cx::FrameMetric, and cx::DistanceMetric.

Definition at line 113 of file cxData.h.

◆ getLandmarks()

LandmarksPtr cx::Data::getLandmarks ( )

Definition at line 209 of file cxData.cpp.

◆ getName()

QString cx::Data::getName ( ) const

virtual

Reimplemented in cx::UnsignedDerivedImage.

Definition at line 69 of file cxData.cpp.

◆ getParentSpace()

QString cx::Data::getParentSpace ( )

virtual

Reimplemented in cx::UnsignedDerivedImage, cx::FrameMetricBase, and cx::PointMetric.

Definition at line 101 of file cxData.cpp.

◆ getPointCloud()

std::vector< Vector3D > cx::Data::getPointCloud ( ) const

virtual

Reimplemented in cx::CustomMetric.

Definition at line 106 of file cxData.cpp.

◆ getSpace()

QString cx::Data::getSpace ( )

virtual

Reimplemented in cx::UnsignedDerivedImage, and cx::DataMetric.

Definition at line 96 of file cxData.cpp.

◆ getType()

virtual QString cx::Data::getType ( ) const

inlinevirtual

Reimplemented in cx::FrameMetricBase, cx::Image, cx::RegionOfInterestMetric, cx::CustomMetric, cx::DonutMetric, cx::DistanceMetric, cx::AngleMetric, cx::Mesh, cx::PlaneMetric, cx::UnsignedDerivedImage, cx::PointMetric, cx::SphereMetric, cx::TrackedStream, cx::ToolMetric, and cx::FrameMetric.

Definition at line 109 of file cxData.h.

◆ getUid()

QString cx::Data::getUid ( ) const

virtual

Returns: unique id for this instance

Definition at line 64 of file cxData.cpp.

◆ isEqual()

bool cx::Data::isEqual ( DataPtr metric )

virtual

Definition at line 189 of file cxData.cpp.

◆ load()

virtual bool cx::Data::load	(	QString	path,
		FileManagerServicePtr	port
	)

pure virtual

Implemented in cx::Image, cx::DataMetric, and cx::Mesh.

◆ parseXml()

void cx::Data::parseXml ( QDomNode & dataNode )

virtual

Use a XML node to load data.

Parameters

dataNode A XML data representation of this object.

Reimplemented in cx::Image, cx::RegionOfInterestMetric, cx::PlaneMetric, cx::CustomMetric, cx::PointMetric, cx::DonutMetric, cx::DistanceMetric, cx::DataMetric, cx::Mesh, cx::AngleMetric, cx::ToolMetric, cx::SphereMetric, cx::FrameMetric, and cx::TrackedStream.

Definition at line 149 of file cxData.cpp.

◆ propertiesChanged

void cx::Data::propertiesChanged ( )

signal

emitted when one of the metadata properties (uid, name etc) changes

◆ removeInteractiveClipPlane()

void cx::Data::removeInteractiveClipPlane ( vtkPlanePtr plane )

Definition at line 264 of file cxData.cpp.

◆ save()

virtual void cx::Data::save	(	const QString &	basePath,
		FileManagerServicePtr	port
	)

pure virtual

Implemented in cx::Image, and cx::Mesh.

◆ setAcquisitionTime()

void cx::Data::setAcquisitionTime ( QDateTime time )

Definition at line 194 of file cxData.cpp.

◆ setFilename()

void cx::Data::setFilename ( QString val )

virtual

Definition at line 78 of file cxData.cpp.

◆ setInteractiveClipPlane()

void cx::Data::setInteractiveClipPlane ( vtkPlanePtr plane )

virtual

set a plane that is not saved

Definition at line 253 of file cxData.cpp.

◆ setName()

void cx::Data::setName ( const QString & name )

Definition at line 58 of file cxData.cpp.

◆ setOriginalAcquisitionTime()

void cx::Data::setOriginalAcquisitionTime ( QDateTime time )

Definition at line 204 of file cxData.cpp.

◆ setSoftwareAcquisitionTime()

void cx::Data::setSoftwareAcquisitionTime ( QDateTime time )

Definition at line 199 of file cxData.cpp.

◆ setUid()

void cx::Data::setUid ( const QString & uid )

Definition at line 52 of file cxData.cpp.

◆ transformChanged

void cx::Data::transformChanged ( )

signal

emitted when transform is changed

◆ transformChangedSlot

virtual void cx::Data::transformChangedSlot ( )

inlineprotectedvirtualslot

Definition at line 148 of file cxData.h.

Member Data Documentation

◆ m_rMd_History

RegistrationHistoryPtr cx::Data::m_rMd_History

protected

Definition at line 160 of file cxData.h.

◆ mFilename

QString cx::Data::mFilename

protected

Definition at line 155 of file cxData.h.

◆ mInteractiveClipPlane

vtkPlanePtr cx::Data::mInteractiveClipPlane

protected

Definition at line 163 of file cxData.h.

◆ mInteractiveClipPlanes

std::vector<vtkPlanePtr> cx::Data::mInteractiveClipPlanes

protected

Definition at line 162 of file cxData.h.

◆ mLandmarks

LandmarksPtr cx::Data::mLandmarks

protected

Definition at line 157 of file cxData.h.

◆ mName

QString cx::Data::mName

protected

Definition at line 154 of file cxData.h.

◆ mPersistentClipPlanes

std::vector<vtkPlanePtr> cx::Data::mPersistentClipPlanes

protected

Definition at line 161 of file cxData.h.

◆ mRegistrationStatus

REGISTRATION_STATUS cx::Data::mRegistrationStatus

protected

Definition at line 159 of file cxData.h.

◆ mTimeInfo

TimeInfo cx::Data::mTimeInfo

protected

Definition at line 156 of file cxData.h.

◆ mUid

QString cx::Data::mUid

protected

Definition at line 153 of file cxData.h.

The documentation for this class was generated from the following files:

/mnt/bamboo/bamboo/buildagent/xml-data/build-dir/NN-NI-BU2/CX/CX/source/resource/core/Data/cxData.h
/mnt/bamboo/bamboo/buildagent/xml-data/build-dir/NN-NI-BU2/CX/CX/source/resource/core/Data/cxData.cpp
