cx::AcquisitionService Class Reference

Acqusition services abstract interface. More...

#include <cxAcquisitionService.h>

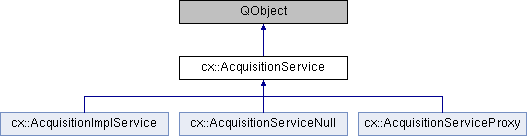

Inheritance diagram for cx::AcquisitionService:

Public Types
enum	TYPE { tTRACKING, tUS, tCOUNT }
enum	STATE { sRUNNING = 0, sPOST_PROCESSING = 1, sNOT_RUNNING = 2 }
typedef QFlags< TYPE >	TYPES

Signals
void	started ()
void	cancelled ()
void	stateChanged ()
void	usReadinessChanged ()
void	acquisitionStopped ()
void	recordedSessionsChanged ()
void	acquisitionDataReady ()
	emitted when data is acquired and sent to the reconstruction module More...
void	saveDataCompleted (QString mhdFilename)
	emitted when data has been saved to file More...

Public Member Functions
virtual	~AcquisitionService ()
virtual bool	isNull ()=0
virtual RecordSessionPtr	getLatestSession ()=0
virtual std::vector< RecordSessionPtr >	getSessions ()=0
virtual bool	isReady (TYPES context) const =0
virtual QString	getInfoText (TYPES context) const =0
virtual STATE	getState () const =0
virtual void	startRecord (TYPES context, QString category, RecordSessionPtr session=RecordSessionPtr())=0
virtual void	stopRecord ()=0
virtual void	cancelRecord ()=0
virtual void	startPostProcessing ()=0
virtual void	stopPostProcessing ()=0
virtual int	getNumberOfSavingThreads () const =0
RecordSessionPtr	getSession (QString uid)

Static Public Member Functions
static AcquisitionServicePtr	getNullObject ()

Detailed Description

Acqusition services abstract interface.

Date

2014-11-26

Author

Ole Vegard Solberg, SINTEF

Definition at line 36 of file cxAcquisitionService.h.

Member Typedef Documentation

TYPES

typedef QFlags<TYPE> cx::AcquisitionService::TYPES

Definition at line 48 of file cxAcquisitionService.h.

Member Enumeration Documentation

STATE

enum cx::AcquisitionService::STATE

Enumerator
sRUNNING
sPOST_PROCESSING
sNOT_RUNNING

Definition at line 51 of file cxAcquisitionService.h.

TYPE

enum cx::AcquisitionService::TYPE

Enumerator
tTRACKING
tUS
tCOUNT

Definition at line 42 of file cxAcquisitionService.h.

Constructor & Destructor Documentation

~AcquisitionService()

virtual cx::AcquisitionService::~AcquisitionService ( )

inlinevirtual

Definition at line 40 of file cxAcquisitionService.h.

Member Function Documentation

acquisitionDataReady

void cx::AcquisitionService::acquisitionDataReady ( )

signal

emitted when data is acquired and sent to the reconstruction module

acquisitionStopped

void cx::AcquisitionService::acquisitionStopped ( )

signal

cancelled

void cx::AcquisitionService::cancelled ( )

signal

cancelRecord()

virtual void cx::AcquisitionService::cancelRecord ( )

pure virtual

Implemented in cx::AcquisitionImplService, cx::AcquisitionServiceProxy, and cx::AcquisitionServiceNull.

getInfoText()

virtual QString cx::AcquisitionService::getInfoText ( TYPES  context ) const

pure virtual

Implemented in cx::AcquisitionImplService, cx::AcquisitionServiceProxy, and cx::AcquisitionServiceNull.

getLatestSession()

virtual RecordSessionPtr cx::AcquisitionService::getLatestSession ( )

pure virtual

Implemented in cx::AcquisitionImplService, cx::AcquisitionServiceProxy, and cx::AcquisitionServiceNull.

getNullObject()

AcquisitionServicePtr cx::AcquisitionService::getNullObject ( )

static

Definition at line 21 of file cxAcquisitionService.cpp.

getNumberOfSavingThreads()

virtual int cx::AcquisitionService::getNumberOfSavingThreads ( ) const

pure virtual

Implemented in cx::AcquisitionImplService, cx::AcquisitionServiceProxy, and cx::AcquisitionServiceNull.

getSession()

RecordSessionPtr cx::AcquisitionService::getSession

(

QString

uid

)

Definition at line 29 of file cxAcquisitionService.cpp.

getSessions()

virtual std::vector<RecordSessionPtr> cx::AcquisitionService::getSessions ( )

pure virtual

Implemented in cx::AcquisitionImplService, cx::AcquisitionServiceProxy, and cx::AcquisitionServiceNull.

getState()

virtual STATE cx::AcquisitionService::getState ( ) const

pure virtual

Implemented in cx::AcquisitionImplService, cx::AcquisitionServiceProxy, and cx::AcquisitionServiceNull.

isNull()

virtual bool cx::AcquisitionService::isNull ( )

pure virtual

Implemented in cx::AcquisitionImplService, cx::AcquisitionServiceProxy, and cx::AcquisitionServiceNull.

isReady()

virtual bool cx::AcquisitionService::isReady ( TYPES  context ) const

pure virtual

Implemented in cx::AcquisitionImplService, cx::AcquisitionServiceProxy, and cx::AcquisitionServiceNull.

recordedSessionsChanged

void cx::AcquisitionService::recordedSessionsChanged ( )

signal

saveDataCompleted

void cx::AcquisitionService::saveDataCompleted ( QString  mhdFilename )

signal

emitted when data has been saved to file

started

void cx::AcquisitionService::started ( )

signal

startPostProcessing()

virtual void cx::AcquisitionService::startPostProcessing ( )

pure virtual

Implemented in cx::AcquisitionImplService, cx::AcquisitionServiceProxy, and cx::AcquisitionServiceNull.

startRecord()

virtual void cx::AcquisitionService::startRecord ( TYPES  context, QString  category, RecordSessionPtr  session = RecordSessionPtr()  )

pure virtual

Implemented in cx::AcquisitionImplService, cx::AcquisitionServiceProxy, and cx::AcquisitionServiceNull.

stateChanged

void cx::AcquisitionService::stateChanged ( )

signal

stopPostProcessing()

virtual void cx::AcquisitionService::stopPostProcessing ( )

pure virtual

Implemented in cx::AcquisitionImplService, cx::AcquisitionServiceProxy, and cx::AcquisitionServiceNull.

stopRecord()

virtual void cx::AcquisitionService::stopRecord ( )

pure virtual

Implemented in cx::AcquisitionImplService, cx::AcquisitionServiceProxy, and cx::AcquisitionServiceNull.

usReadinessChanged

void cx::AcquisitionService::usReadinessChanged ( )

signal

---

The documentation for this class was generated from the following files:

• /mnt/bamboo/bamboo/buildagent/xml-data/build-dir/NN-NI-BU2/CX/CX/source/plugins/org.custusx.acquisition/cxAcquisitionService.h
• /mnt/bamboo/bamboo/buildagent/xml-data/build-dir/NN-NI-BU2/CX/CX/source/plugins/org.custusx.acquisition/cxAcquisitionService.cpp
