cx::DoublePairPropertyBase Class Reference

Abstract interface for interaction with internal data structure: A pair of doubles. More...

#include <cxDoublePairPropertyBase.h>

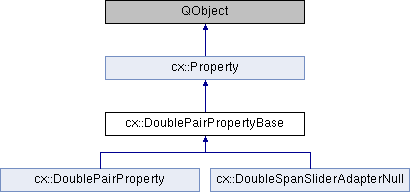

Inheritance diagram for cx::DoublePairPropertyBase:

Public Member Functions
virtual	~DoublePairPropertyBase ()
virtual QString	getDisplayName () const =0
	name of data entity. Used for display to user. More...
virtual bool	setValue (const Eigen::Vector2d &value)=0
	set the data value. More...
virtual Eigen::Vector2d	getValue () const =0
	get the data value. More...
virtual void	setValueRange (DoubleRange range)=0
virtual QVariant	getValueAsVariant () const
virtual void	setValueFromVariant (QVariant value)
virtual DoubleRange	getValueRange () const
Public Member Functions inherited from cx::Property
	Property ()
virtual	~Property ()
virtual QString	getUid () const =0
virtual bool	getEnabled () const
	Get the enabled/disabled state of the Property. More...
virtual bool	getAdvanced () const
	Get the advanced flag of the adapter. More...
virtual QString	getGroup () const
	Flag the adapter as part of a group. More...

Additional Inherited Members
Public Slots inherited from cx::Property
virtual bool	setEnabled (bool enabled)
	Set the enabled/disabled state of the Property. More...
virtual bool	setAdvanced (bool advanced)
	Set the advanced flag of the adapter. More...
virtual bool	setGroup (QString name)
	Flag the adapter as part of a group. More...
Signals inherited from cx::Property
void	changed ()
	emit when the underlying data value is changed: The user interface will be updated. More...
Static Public Member Functions inherited from cx::Property
static PropertyPtr	findProperty (std::vector< PropertyPtr > properties, QString id)
Protected Attributes inherited from cx::Property
bool	mEnabled
bool	mAdvanced
QString	mGroup

Detailed Description

Abstract interface for interaction with internal data structure: A pair of doubles.

Date

Juli 31, 2014

Author

Ole Vegard Solberg, SINTEF

Definition at line 33 of file cxDoublePairPropertyBase.h.

Constructor & Destructor Documentation

~DoublePairPropertyBase()

virtual cx::DoublePairPropertyBase::~DoublePairPropertyBase ( )

inlinevirtual

Definition at line 37 of file cxDoublePairPropertyBase.h.

Member Function Documentation

getDisplayName()

virtual QString cx::DoublePairPropertyBase::getDisplayName ( ) const

pure virtual

name of data entity. Used for display to user.

Implements cx::Property.

Implemented in cx::DoubleSpanSliderAdapterNull, and cx::DoublePairProperty.

getValue()

virtual Eigen::Vector2d cx::DoublePairPropertyBase::getValue ( ) const

pure virtual

get the data value.

Implemented in cx::DoubleSpanSliderAdapterNull, and cx::DoublePairProperty.

getValueAsVariant()

virtual QVariant cx::DoublePairPropertyBase::getValueAsVariant ( ) const

inlinevirtual

Implements cx::Property.

Definition at line 50 of file cxDoublePairPropertyBase.h.

getValueRange()

virtual DoubleRange cx::DoublePairPropertyBase::getValueRange ( ) const

inlinevirtual

Reimplemented in cx::DoublePairProperty.

Definition at line 68 of file cxDoublePairPropertyBase.h.

setValue()

virtual bool cx::DoublePairPropertyBase::setValue ( const Eigen::Vector2d &  value )

pure virtual

set the data value.

Implemented in cx::DoubleSpanSliderAdapterNull, and cx::DoublePairProperty.

setValueFromVariant()

virtual void cx::DoublePairPropertyBase::setValueFromVariant ( QVariant  value )

inlinevirtual

Implements cx::Property.

Definition at line 56 of file cxDoublePairPropertyBase.h.

setValueRange()

virtual void cx::DoublePairPropertyBase::setValueRange ( DoubleRange  range )

pure virtual

Implemented in cx::DoublePairProperty.

---

The documentation for this class was generated from the following file:

• /mnt/bamboo/bamboo/buildagent/xml-data/build-dir/NN-RE-BU2/CX/CX/source/resource/core/properties/cxDoublePairPropertyBase.h
