Display a Tool in 3D. More...

#include <cxToolRep3D.h>

Inheritance diagram for cx::ToolRep3D:

Public Member Functions
virtual	~ToolRep3D ()

virtual QString	getType () const

virtual void	setTool (ToolPtr tool)

virtual bool	hasTool (ToolPtr tool) const

virtual ToolPtr	getTool ()

ToolTracerPtr	getTracer ()

void	setSphereRadius (double radius)

void	setStayHiddenAfterVisible (bool val)

void	setStayVisibleAfterHide (bool val)
	if true, tool is still rendered as visible after visibility status is hidden. More...

void	setOffsetPointVisibleAtZeroOffset (bool val)
	if true the sphere is visible even when the offset is zero More...

void	setSphereRadiusInNormalizedViewport (bool on)

void	setTooltipPointColor (const QColor &color)
	ToolRep3D::setTooltipPointColor. More...

void	setToolOffsetPointColor (const QColor &color)

void	setToolOffsetLineColor (const QColor &color)

Public Member Functions inherited from cx::RepImpl
	RepImpl (const QString &uid="", const QString &name="")

virtual	~RepImpl ()

virtual void	connectToView (ViewPtr theView)

virtual void	disconnectFromView (ViewPtr theView)

virtual bool	isConnectedToView (ViewPtr theView) const

void	setName (QString name)

QString	getName () const

QString	getUid () const

virtual void	printSelf (std::ostream &os, Indent indent)

Public Member Functions inherited from cx::Rep
virtual	~Rep ()

Static Public Member Functions
static ToolRep3DPtr	New (SpaceProviderPtr spaceProvider, const QString &uid="")

Static Public Member Functions inherited from cx::RepImpl
template<class REP >
static boost::shared_ptr< REP >	wrap_new (REP *object, QString uid)

Protected Member Functions
	ToolRep3D (SpaceProviderPtr spaceProvider)

virtual void	addRepActorsToViewRenderer (ViewPtr view)

virtual void	removeRepActorsFromViewRenderer (ViewPtr view)

bool	showProbe ()

virtual void	onModifiedStartRender ()

Protected Member Functions inherited from cx::RepImpl
ViewPtr	getView () const

vtkRendererPtr	getRenderer ()

RepPtr	getSelf ()

virtual void	onEveryRender ()

Additional Inherited Members
Protected Slots inherited from cx::RepImpl
void	setModified ()

Detailed Description

Display a Tool in 3D.

ToolRep3D displays a Tool using the supplied graphical representation from the Tool interface, with points showing the tooltip and offset point. If the Tool is a Probe, the probe sector and the prope video can be shown as well.

Several optional visualizations are available.

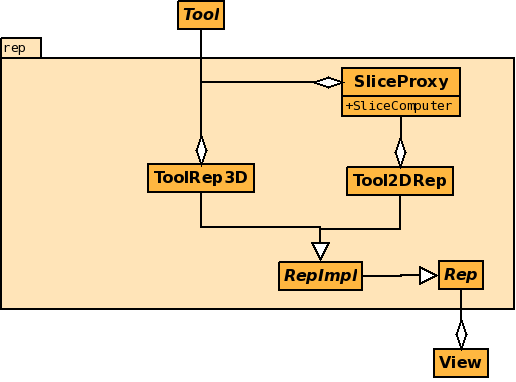

ToolRep2D, ToolRep3D and surrounding classes.

Used by CustusX and Sonowand.

Definition at line 51 of file cxToolRep3D.h.

Constructor & Destructor Documentation

cx::ToolRep3D::~ToolRep3D ( )

virtual

Definition at line 66 of file cxToolRep3D.cpp.

cx::ToolRep3D::ToolRep3D ( SpaceProviderPtr spaceProvider )

protected

Definition at line 37 of file cxToolRep3D.cpp.

Member Function Documentation

void cx::ToolRep3D::addRepActorsToViewRenderer ( ViewPtr view )

protectedvirtual

Implements cx::RepImpl.

Definition at line 208 of file cxToolRep3D.cpp.

ToolPtr cx::ToolRep3D::getTool ( )

virtual

Definition at line 84 of file cxToolRep3D.cpp.

ToolTracerPtr cx::ToolRep3D::getTracer ( )

Definition at line 69 of file cxToolRep3D.cpp.

QString cx::ToolRep3D::getType ( ) const

virtual

Returns: a string identifying the Rep type. Each suclass implement this with its own class name. Subclasses from other namespaces (such as cx and snw) should add that namespace as a prefix.

Implements cx::RepImpl.

Definition at line 79 of file cxToolRep3D.cpp.

bool cx::ToolRep3D::hasTool ( ToolPtr tool ) const

virtual

Definition at line 151 of file cxToolRep3D.cpp.

ToolRep3DPtr cx::ToolRep3D::New	(	SpaceProviderPtr	spaceProvider,
		const QString &	uid = `""`
	)

static

Definition at line 74 of file cxToolRep3D.cpp.

void cx::ToolRep3D::onModifiedStartRender ( )

protectedvirtual

Reimplemented from cx::RepImpl.

Definition at line 272 of file cxToolRep3D.cpp.

void cx::ToolRep3D::removeRepActorsFromViewRenderer ( ViewPtr view )

protectedvirtual

Implements cx::RepImpl.

Definition at line 235 of file cxToolRep3D.cpp.

void cx::ToolRep3D::setOffsetPointVisibleAtZeroOffset ( bool val )

if true the sphere is visible even when the offset is zero

Definition at line 393 of file cxToolRep3D.cpp.

void cx::ToolRep3D::setSphereRadius ( double radius )

Definition at line 156 of file cxToolRep3D.cpp.

void cx::ToolRep3D::setSphereRadiusInNormalizedViewport ( bool on )

Definition at line 165 of file cxToolRep3D.cpp.

void cx::ToolRep3D::setStayHiddenAfterVisible ( bool val )

Definition at line 377 of file cxToolRep3D.cpp.

void cx::ToolRep3D::setStayVisibleAfterHide ( bool val )

if true, tool is still rendered as visible after visibility status is hidden.

If true, tool is still rendered as visible after visibility status is hidden. Nice for viewing the last known position of a tool.

Definition at line 388 of file cxToolRep3D.cpp.

void cx::ToolRep3D::setTool ( ToolPtr tool )

virtual

Definition at line 119 of file cxToolRep3D.cpp.

void cx::ToolRep3D::setToolOffsetLineColor ( const QColor & color )

Definition at line 202 of file cxToolRep3D.cpp.

void cx::ToolRep3D::setToolOffsetPointColor ( const QColor & color )

Definition at line 196 of file cxToolRep3D.cpp.

void cx::ToolRep3D::setTooltipPointColor ( const QColor & color )

ToolRep3D::setTooltipPointColor.

Parameters

color Sets the color of the crosshair and the sphere.

Definition at line 188 of file cxToolRep3D.cpp.

bool cx::ToolRep3D::showProbe ( )

protected

Definition at line 403 of file cxToolRep3D.cpp.

The documentation for this class was generated from the following files:

/media/dev/bamboodrive/b/xml-data/build-dir/FX-NOS-JOB1/CX/CX/source/resource/view/Rep3D/cxToolRep3D.h
/media/dev/bamboodrive/b/xml-data/build-dir/FX-NOS-JOB1/CX/CX/source/resource/view/Rep3D/cxToolRep3D.cpp
