cx::StreamerService Class Reference

Abstract class. Interface to Streamers. More...

#include <cxStreamerService.h>

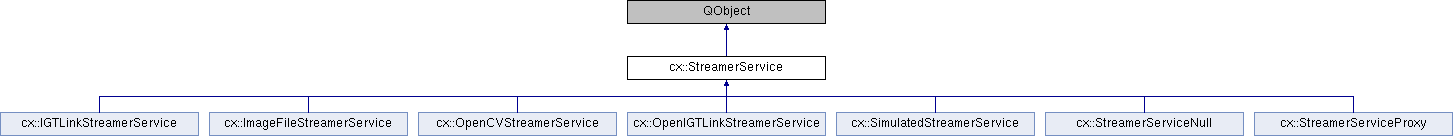

Inheritance diagram for cx::StreamerService:

Public Member Functions
	StreamerService ()
virtual QString	getName ()=0
virtual QString	getType () const =0
virtual std::vector< PropertyPtr >	getSettings (QDomElement root)=0
virtual StreamerPtr	createStreamer (QDomElement root)=0
virtual void	stop ()=0

Static Public Member Functions
static StreamerServicePtr	getNullObject ()

Detailed Description

Abstract class. Interface to Streamers.

Date

May 20, 2014

Author

Ole Vegard Solberg, SINTEF

Definition at line 42 of file cxStreamerService.h.

Constructor & Destructor Documentation

cx::StreamerService::StreamerService ( )

inline

Definition at line 48 of file cxStreamerService.h.

Member Function Documentation

virtual StreamerPtr cx::StreamerService::createStreamer ( QDomElement  root )

pure virtual

Return a streamer that can emit image data.

Implemented in cx::OpenCVStreamerService, cx::OpenIGTLinkStreamerService, cx::ImageFileStreamerService, cx::IGTLinkStreamerService, cx::StreamerServiceProxy, and cx::StreamerServiceNull.

virtual QString cx::StreamerService::getName ( )

pure virtual

Implemented in cx::OpenCVStreamerService, cx::OpenIGTLinkStreamerService, cx::ImageFileStreamerService, cx::IGTLinkStreamerService, cx::StreamerServiceProxy, and cx::StreamerServiceNull.

StreamerServicePtr cx::StreamerService::getNullObject ( )

static

Definition at line 19 of file cxStreamerService.cpp.

virtual std::vector<PropertyPtr> cx::StreamerService::getSettings ( QDomElement  root )

pure virtual

Fill settings for this algorithm. Input is the root node for this algo, filled with stored settings (if any). On completion, the root is filled with default values for settings.

Implemented in cx::OpenCVStreamerService, cx::OpenIGTLinkStreamerService, cx::ImageFileStreamerService, cx::IGTLinkStreamerService, cx::StreamerServiceProxy, and cx::StreamerServiceNull.

virtual QString cx::StreamerService::getType ( ) const

pure virtual

Implemented in cx::OpenCVStreamerService, cx::OpenIGTLinkStreamerService, cx::ImageFileStreamerService, cx::IGTLinkStreamerService, cx::StreamerServiceProxy, and cx::StreamerServiceNull.

virtual void cx::StreamerService::stop ( )

pure virtual

Implemented in cx::OpenIGTLinkStreamerService, cx::OpenCVStreamerService, cx::ImageFileStreamerService, cx::IGTLinkStreamerService, cx::StreamerServiceProxy, and cx::StreamerServiceNull.

---

The documentation for this class was generated from the following files:

• /media/dev/bamboodrive/b/xml-data/build-dir/FX-NOS-JOB1/CX/CX/source/resource/core/Video/cxStreamerService.h
• /media/dev/bamboodrive/b/xml-data/build-dir/FX-NOS-JOB1/CX/CX/source/resource/core/Video/cxStreamerService.cpp
