cx::StateService Class Reference

Workflow states for CustusX. More...

#include <cxStateService.h>

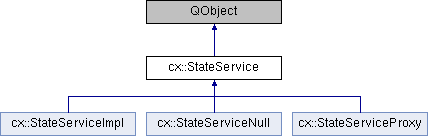

Inheritance diagram for cx::StateService:

Signals
void	workflowStateChanged ()
void	workflowStateAboutToChange ()
void	applicationStateChanged ()

Public Member Functions
virtual	~StateService ()
virtual QString	getVersionName ()=0
virtual QString	getApplicationStateName () const =0
virtual QStringList	getAllApplicationStateNames () const =0
virtual QActionGroup *	getWorkflowActions ()=0
virtual void	setWorkFlowState (QString uid)=0
virtual Desktop	getActiveDesktop ()=0
virtual void	saveDesktop (Desktop desktop)=0
virtual void	resetDesktop ()=0
virtual WorkflowStateMachinePtr	getWorkflow ()=0
virtual bool	isNull ()=0

Static Public Member Functions
static StateServicePtr	getNullObject ()

Protected Member Functions
void	fillDefaultSettings ()
template<class T >
void	fillDefault (QString name, T value)

Detailed Description

Workflow states for CustusX.

Maintains global state. The responsibility of this service has been reduced, it now controls the workflow steps.

• Settings also contains some global state.
• cx::Profile contains more state.

Workflow

The use of CustusX during a surgical procedure can be broken down into a series of steps:

• Preoperative data acquisition
• Planning
• Registration
• Navigation + Intraoperative data acquisition.
• Postoperative analysis

This is the main workflow. Each step is named a Workflow State, and are states in StateManager. They can be customized in the State Manager, and they have a unique GUI setup.

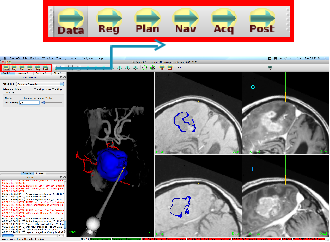

Workflow steps. The buttons are enlarged.

See also

WorkflowStateMachine

During each step, There are operations that usually are performed in sequence. Examples:

• Acquire data -> reconstruct.
• Import/acquire data -> show in view.

These automations can be set in Preferences->Automation.

Date

4. aug. 2010

Author

Janne Beate Bakeng, SINTEF

Definition at line 102 of file cxStateService.h.

Constructor & Destructor Documentation

virtual cx::StateService::~StateService ( )

inlinevirtual

Definition at line 107 of file cxStateService.h.

Member Function Documentation

void cx::StateService::applicationStateChanged ( )

signal

template<class T >

void cx::StateService::fillDefault ( QString  name, T  value  )

inlineprotected

Definition at line 127 of file cxStateService.h.

void cx::StateService::fillDefaultSettings ( )

protected

Enter all default Settings here.

Definition at line 54 of file cxStateService.cpp.

virtual Desktop cx::StateService::getActiveDesktop ( )

pure virtual

Implemented in cx::StateServiceImpl, cx::StateServiceProxy, and cx::StateServiceNull.

virtual QStringList cx::StateService::getAllApplicationStateNames ( ) const

pure virtual

Implemented in cx::StateServiceImpl, cx::StateServiceProxy, and cx::StateServiceNull.

virtual QString cx::StateService::getApplicationStateName ( ) const

pure virtual

Implemented in cx::StateServiceImpl, cx::StateServiceProxy, and cx::StateServiceNull.

StateServicePtr cx::StateService::getNullObject ( )

static

Definition at line 43 of file cxStateService.cpp.

virtual QString cx::StateService::getVersionName ( )

pure virtual

Implemented in cx::StateServiceImpl, cx::StateServiceProxy, and cx::StateServiceNull.

virtual WorkflowStateMachinePtr cx::StateService::getWorkflow ( )

pure virtual

Implemented in cx::StateServiceImpl, cx::StateServiceProxy, and cx::StateServiceNull.

virtual QActionGroup* cx::StateService::getWorkflowActions ( )

pure virtual

Implemented in cx::StateServiceImpl, cx::StateServiceProxy, and cx::StateServiceNull.

virtual bool cx::StateService::isNull ( )

pure virtual

Implemented in cx::StateServiceImpl, cx::StateServiceProxy, and cx::StateServiceNull.

virtual void cx::StateService::resetDesktop ( )

pure virtual

Implemented in cx::StateServiceImpl, cx::StateServiceProxy, and cx::StateServiceNull.

virtual void cx::StateService::saveDesktop ( Desktop  desktop )

pure virtual

Implemented in cx::StateServiceImpl, cx::StateServiceProxy, and cx::StateServiceNull.

virtual void cx::StateService::setWorkFlowState ( QString  uid )

pure virtual

Implemented in cx::StateServiceImpl, cx::StateServiceProxy, and cx::StateServiceNull.

void cx::StateService::workflowStateAboutToChange ( )

signal

void cx::StateService::workflowStateChanged ( )

signal

---

The documentation for this class was generated from the following files:

• /media/jenkins/bamboo/buildagent/xml-data/build-dir/FX-OSTBR-JOB1/CX/CX/source/resource/core/settings/cxStateService.h
• /media/jenkins/bamboo/buildagent/xml-data/build-dir/FX-OSTBR-JOB1/CX/CX/source/resource/core/settings/cxStateService.cpp
