cx::ManualImageRegistrationWidget Class Reference

#include <cxManualRegistrationWidget.h>

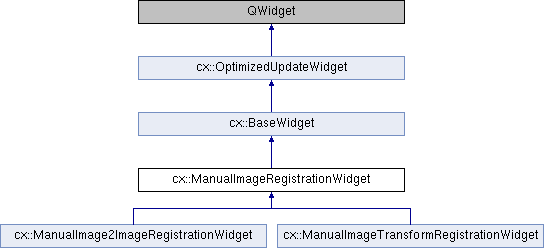

Inheritance diagram for cx::ManualImageRegistrationWidget:

Public Member Functions
	ManualImageRegistrationWidget (RegServicesPtr services, QWidget *parent, QString objectName, QString windowTitle)
virtual	~ManualImageRegistrationWidget ()
Public Member Functions inherited from cx::BaseWidget
	BaseWidget (QWidget *parent, QString objectName, QString windowTitle)
virtual	~BaseWidget ()
QWidget *	createMethodWidget (QWidget *inputWidget, QWidget *outputWidget, QString methodname, bool inputChecked=false, bool outputVisible=true)
	Create a specialized widget for filters, with input/ouput, enable and options. More...
QGroupBox *	createGroupbox (QWidget *widget, QString boxname)
	Create a group box with a given name. More...
QGroupBox *	wrapInGroupBox (QWidget *base, QString name)
CXFrame *	wrapInFrame (QWidget *base)
QAction *	createAction2 (QObject *parent, QIcon iconName, QString text, QString tip, QLayout *layout=NULL, QToolButton *button=new QToolButton())
template<class T >
QAction *	createAction (QObject *parent, QIcon iconName, QString text, QString tip, T slot, QLayout *layout=NULL, QToolButton *button=new QToolButton())
Public Member Functions inherited from cx::OptimizedUpdateWidget
	OptimizedUpdateWidget (QWidget *parent=NULL)
virtual	~OptimizedUpdateWidget ()
void	forcePrePaint ()

Protected Member Functions
virtual void	showEvent (QShowEvent *event)
Protected Member Functions inherited from cx::OptimizedUpdateWidget
virtual void	prePaintEvent ()
virtual void	paintEvent (QPaintEvent *event)

Protected Attributes
DataPtr	mConnectedMovingImage
QVBoxLayout *	mVerticalLayout
RegServicesPtr	mServices

Additional Inherited Members
Public Slots inherited from cx::BaseWidget
void	adjustSizeSlot ()
Public Slots inherited from cx::OptimizedUpdateWidget
virtual void	setModified ()
Static Public Member Functions inherited from cx::BaseWidget
static QFrame *	createHorizontalLine ()
	Creates a horizontal line which can be inserted into widgets. More...

Detailed Description

Direct setting of image registration

Manipulate the image matrix rMd via a matrix or xyz+angles. The writing of the matrix is handled exactly like an image registration.

Date

Feb 16, 2012

Author

Christian Askeland, SINTEF

Ole Vegard Solberg, SINTEF

Definition at line 43 of file cxManualRegistrationWidget.h.

Constructor & Destructor Documentation

cx::ManualImageRegistrationWidget::ManualImageRegistrationWidget	(	RegServicesPtr	services,
		QWidget *	parent,
		QString	objectName,
		QString	windowTitle
	)

Definition at line 24 of file cxManualRegistrationWidget.cpp.

virtual cx::ManualImageRegistrationWidget::~ManualImageRegistrationWidget ( )

inlinevirtual

Definition at line 48 of file cxManualRegistrationWidget.h.

Member Function Documentation

void cx::ManualImageRegistrationWidget::showEvent ( QShowEvent *  event )

protectedvirtual

Reimplemented from cx::BaseWidget.

Definition at line 43 of file cxManualRegistrationWidget.cpp.

Member Data Documentation

DataPtr cx::ManualImageRegistrationWidget::mConnectedMovingImage

protected

Definition at line 52 of file cxManualRegistrationWidget.h.

RegServicesPtr cx::ManualImageRegistrationWidget::mServices

protected

Definition at line 54 of file cxManualRegistrationWidget.h.

QVBoxLayout* cx::ManualImageRegistrationWidget::mVerticalLayout

protected

Definition at line 53 of file cxManualRegistrationWidget.h.

---

The documentation for this class was generated from the following files:

• /media/dev/bamboodrive/b/xml-data/build-dir/FX-TB-JOB1/CX/CX/source/plugins/org.custusx.registration.method.manual/cxManualRegistrationWidget.h
• /media/dev/bamboodrive/b/xml-data/build-dir/FX-TB-JOB1/CX/CX/source/plugins/org.custusx.registration.method.manual/cxManualRegistrationWidget.cpp
