Visualization services. More...

#include <cxViewService.h>

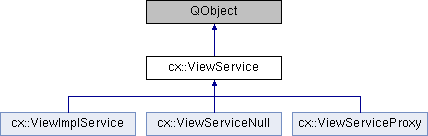

Inheritance diagram for cx::ViewService:

Public Slots
virtual void	aboutToStop ()=0

Signals
void	fps (int number)
	Emits number of frames per second. More...

void	activeLayoutChanged ()
	emitted when the active layout changes More...

void	activeViewChanged ()
	emitted when the active view changes More...

void	renderingEnabledChanged ()
	emitted then rendering is enabled/disabled More...

void	pointSampled (Vector3D p_r)

void	renderFinished ()

Public Member Functions
virtual ViewPtr	get3DView (int group=0, int index=0)=0

RepContainerPtr	get3DReps (int group=0, int index=0)

virtual int	getActiveGroupId () const =0

virtual ViewGroupDataPtr	getGroup (int groupIdx) const =0

unsigned	groupCount () const

virtual void	setRegistrationMode (REGISTRATION_STATUS mode)=0

virtual void	autoShowData (DataPtr data)=0

virtual void	enableRender (bool val)=0

virtual bool	renderingIsEnabled () const =0

virtual QWidget *	createLayoutWidget (QWidget *parent, int index=0)=0
	Get the specified layout widget, create if necessary. More...

virtual QWidget *	getLayoutWidget (int index)=0
	Get the specified layout widget, NULL if not created. More...

virtual QString	getActiveLayout (int widgetIndex=0) const =0

virtual void	setActiveLayout (const QString &uid, int widgetIndex=0)=0

virtual void	deactivateLayout ()

virtual ClippersPtr	getClippers ()=0

virtual InteractiveCropperPtr	getCropper ()=0

virtual CyclicActionLoggerPtr	getRenderTimer ()=0

virtual NavigationPtr	getNavigation (int group=0)=0

virtual LayoutRepositoryPtr	getLayoutRepository ()=0

virtual CameraControlPtr	getCameraControl ()=0

virtual QActionGroup *	getInteractorStyleActionGroup ()=0

virtual void	centerToImageCenterInActiveViewGroup ()=0

virtual void	setCameraStyle (CAMERA_STYLE_TYPE style, int groupIdx)=0

virtual void	zoomCamera3D (int viewGroup3DNumber, int zoomFactor)=0

virtual void	addDefaultLayout (LayoutData layoutData)=0

virtual void	enableContextMenuForViews (bool enable=true)=0

virtual bool	isNull ()=0

ViewGroupDataPtr	getActiveViewGroup ()

Static Public Member Functions
static ViewServicePtr	getNullObject ()

Detailed Description

Visualization services.

Date: 2014-09-19

Author: Ole Vegard Solberg, SINTEF

Definition at line 71 of file cxViewService.h.

Member Function Documentation

virtual void cx::ViewService::aboutToStop ( )

pure virtualslot

void cx::ViewService::activeLayoutChanged ( )

signal

emitted when the active layout changes

void cx::ViewService::activeViewChanged ( )

signal

emitted when the active view changes

virtual void cx::ViewService::addDefaultLayout ( LayoutData layoutData )

pure virtual

Implemented in cx::ViewImplService, cx::ViewServiceProxy, and cx::ViewServiceNull.

virtual void cx::ViewService::autoShowData ( DataPtr data )

pure virtual

Implemented in cx::ViewImplService, cx::ViewServiceProxy, and cx::ViewServiceNull.

virtual void cx::ViewService::centerToImageCenterInActiveViewGroup ( )

pure virtual

Implemented in cx::ViewImplService, cx::ViewServiceProxy, and cx::ViewServiceNull.

virtual QWidget* cx::ViewService::createLayoutWidget	(	QWidget *	parent,
		int	index = `0`
	)

pure virtual

Get the specified layout widget, create if necessary.

Implemented in cx::ViewImplService, cx::ViewServiceProxy, and cx::ViewServiceNull.

void cx::ViewService::deactivateLayout ( )

virtual

Definition at line 69 of file cxViewService.cpp.

virtual void cx::ViewService::enableContextMenuForViews ( bool enable = true )

pure virtual

Implemented in cx::ViewImplService, cx::ViewServiceProxy, and cx::ViewServiceNull.

virtual void cx::ViewService::enableRender ( bool val )

pure virtual

Implemented in cx::ViewImplService, cx::ViewServiceProxy, and cx::ViewServiceNull.

void cx::ViewService::fps ( int number )

signal

Emits number of frames per second.

RepContainerPtr cx::ViewService::get3DReps	(	int	group = `0`,
		int	index = `0`
	)

Definition at line 75 of file cxViewService.cpp.

virtual ViewPtr cx::ViewService::get3DView	(	int	group = `0`,
		int	index = `0`
	)

pure virtual

Implemented in cx::ViewImplService, cx::ViewServiceProxy, and cx::ViewServiceNull.

virtual int cx::ViewService::getActiveGroupId ( ) const

pure virtual

Implemented in cx::ViewImplService, cx::ViewServiceProxy, and cx::ViewServiceNull.

virtual QString cx::ViewService::getActiveLayout ( int widgetIndex = 0 ) const

pure virtual

Implemented in cx::ViewImplService, cx::ViewServiceProxy, and cx::ViewServiceNull.

ViewGroupDataPtr cx::ViewService::getActiveViewGroup ( )

Definition at line 85 of file cxViewService.cpp.

virtual CameraControlPtr cx::ViewService::getCameraControl ( )

pure virtual

Implemented in cx::ViewImplService, cx::ViewServiceProxy, and cx::ViewServiceNull.

virtual ClippersPtr cx::ViewService::getClippers ( )

pure virtual

Implemented in cx::ViewImplService, cx::ViewServiceProxy, and cx::ViewServiceNull.

virtual InteractiveCropperPtr cx::ViewService::getCropper ( )

pure virtual

Implemented in cx::ViewImplService, cx::ViewServiceProxy, and cx::ViewServiceNull.

virtual ViewGroupDataPtr cx::ViewService::getGroup ( int groupIdx ) const

pure virtual

Implemented in cx::ViewImplService, cx::ViewServiceProxy, and cx::ViewServiceNull.

virtual QActionGroup* cx::ViewService::getInteractorStyleActionGroup ( )

pure virtual

Implemented in cx::ViewImplService, cx::ViewServiceProxy, and cx::ViewServiceNull.

virtual LayoutRepositoryPtr cx::ViewService::getLayoutRepository ( )

pure virtual

Implemented in cx::ViewImplService, cx::ViewServiceProxy, and cx::ViewServiceNull.

virtual QWidget* cx::ViewService::getLayoutWidget ( int index )

pure virtual

Get the specified layout widget, NULL if not created.

Implemented in cx::ViewImplService, cx::ViewServiceProxy, and cx::ViewServiceNull.

virtual NavigationPtr cx::ViewService::getNavigation ( int group = 0 )

pure virtual

Implemented in cx::ViewImplService, cx::ViewServiceProxy, and cx::ViewServiceNull.

ViewServicePtr cx::ViewService::getNullObject ( )

static

Definition at line 52 of file cxViewService.cpp.

virtual CyclicActionLoggerPtr cx::ViewService::getRenderTimer ( )

pure virtual

Implemented in cx::ViewImplService, cx::ViewServiceProxy, and cx::ViewServiceNull.

unsigned cx::ViewService::groupCount ( ) const

Definition at line 61 of file cxViewService.cpp.

virtual bool cx::ViewService::isNull ( )

pure virtual

Implemented in cx::ViewImplService, cx::ViewServiceProxy, and cx::ViewServiceNull.

void cx::ViewService::pointSampled ( Vector3D p_r )

signal

void cx::ViewService::renderFinished ( )

signal

void cx::ViewService::renderingEnabledChanged ( )

signal

emitted then rendering is enabled/disabled

virtual bool cx::ViewService::renderingIsEnabled ( ) const

pure virtual

Implemented in cx::ViewImplService, cx::ViewServiceProxy, and cx::ViewServiceNull.

virtual void cx::ViewService::setActiveLayout	(	const QString &	uid,
		int	widgetIndex = `0`
	)

pure virtual

Implemented in cx::ViewImplService, cx::ViewServiceProxy, and cx::ViewServiceNull.

virtual void cx::ViewService::setCameraStyle	(	CAMERA_STYLE_TYPE	style,
		int	groupIdx
	)

pure virtual

Implemented in cx::ViewImplService, cx::ViewServiceProxy, and cx::ViewServiceNull.

virtual void cx::ViewService::setRegistrationMode ( REGISTRATION_STATUS mode )

pure virtual

Implemented in cx::ViewImplService, cx::ViewServiceProxy, and cx::ViewServiceNull.

virtual void cx::ViewService::zoomCamera3D	(	int	viewGroup3DNumber,
		int	zoomFactor
	)

pure virtual

Implemented in cx::ViewImplService, cx::ViewServiceProxy, and cx::ViewServiceNull.

The documentation for this class was generated from the following files:

/media/dev/bamboodrive/b/xml-data/build-dir/FX-TB-JOB1/CX/CX/source/resource/view/cxViewService.h
/media/dev/bamboodrive/b/xml-data/build-dir/FX-TB-JOB1/CX/CX/source/resource/view/cxViewService.cpp
