cx::AcquisitionService Class Referenceabstract

Acqusition services abstract interface. More...

#include <cxAcquisitionService.h>

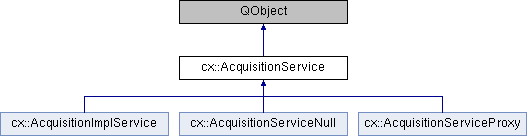

Inheritance diagram for cx::AcquisitionService:
cx::AcquisitionImplService cx::AcquisitionServiceNull cx::AcquisitionServiceProxy

Public Types

enum  TYPE { tTRACKING, tUS, tCOUNT }

enum  STATE { sRUNNING = 0, sPOST_PROCESSING = 1, sNOT_RUNNING = 2 }

typedef QFlags< TYPETYPES


Signals

void started ()

void cancelled ()

void stateChanged ()

void usReadinessChanged ()

void acquisitionStopped ()

void recordedSessionsChanged ()

void acquisitionDataReady ()
 emitted when data is acquired and sent to the reconstruction module More...

void saveDataCompleted (QString mhdFilename)
 emitted when data has been saved to file More...


Public Member Functions

virtual ~AcquisitionService ()

virtual bool isNull ()=0

virtual RecordSessionPtr getLatestSession ()=0

virtual std::vector< RecordSessionPtrgetSessions ()=0

virtual bool isReady (TYPES context) const =0

virtual QString getInfoText (TYPES context) const =0

virtual STATE getState () const =0

virtual void startRecord (TYPES context, QString category, RecordSessionPtr session=RecordSessionPtr())=0

virtual void stopRecord ()=0

virtual void cancelRecord ()=0

virtual void startPostProcessing ()=0

virtual void stopPostProcessing ()=0

virtual int getNumberOfSavingThreads () const =0

RecordSessionPtr getSession (QString uid)


Static Public Member Functions

static AcquisitionServicePtr getNullObject ()


Detailed Description

Acqusition services abstract interface.

Date
2014-11-26
Author
Ole Vegard Solberg, SINTEF

Definition at line 57 of file cxAcquisitionService.h.

Member Typedef Documentation

Definition at line 69 of file cxAcquisitionService.h.

Member Enumeration Documentation

Enumerator
sRUNNING
sPOST_PROCESSING
sNOT_RUNNING

Definition at line 72 of file cxAcquisitionService.h.

Enumerator
tTRACKING
tUS
tCOUNT

Definition at line 63 of file cxAcquisitionService.h.

Constructor & Destructor Documentation

virtual cx::AcquisitionService::~AcquisitionService ( )
inlinevirtual

Definition at line 61 of file cxAcquisitionService.h.

Member Function Documentation

void cx::AcquisitionService::acquisitionDataReady ( )
signal

emitted when data is acquired and sent to the reconstruction module

void cx::AcquisitionService::acquisitionStopped ( )
signal
void cx::AcquisitionService::cancelled ( )
signal
virtual void cx::AcquisitionService::cancelRecord ( )
pure virtual
virtual QString cx::AcquisitionService::getInfoText ( TYPES  context) const
pure virtual
virtual RecordSessionPtr cx::AcquisitionService::getLatestSession ( )
pure virtual
AcquisitionServicePtr cx::AcquisitionService::getNullObject ( )
static

Definition at line 42 of file cxAcquisitionService.cpp.

virtual int cx::AcquisitionService::getNumberOfSavingThreads ( ) const
pure virtual
RecordSessionPtr cx::AcquisitionService::getSession ( QString  uid)

Definition at line 50 of file cxAcquisitionService.cpp.

virtual std::vector<RecordSessionPtr> cx::AcquisitionService::getSessions ( )
pure virtual
virtual STATE cx::AcquisitionService::getState ( ) const
pure virtual
virtual bool cx::AcquisitionService::isNull ( )
pure virtual
virtual bool cx::AcquisitionService::isReady ( TYPES  context) const
pure virtual
void cx::AcquisitionService::recordedSessionsChanged ( )
signal
void cx::AcquisitionService::saveDataCompleted ( QString  mhdFilename)
signal

emitted when data has been saved to file

void cx::AcquisitionService::started ( )
signal
virtual void cx::AcquisitionService::startPostProcessing ( )
pure virtual
virtual void cx::AcquisitionService::startRecord ( TYPES  context,
QString  category,
RecordSessionPtr  session = RecordSessionPtr()
)
pure virtual
void cx::AcquisitionService::stateChanged ( )
signal
virtual void cx::AcquisitionService::stopPostProcessing ( )
pure virtual
virtual void cx::AcquisitionService::stopRecord ( )
pure virtual
void cx::AcquisitionService::usReadinessChanged ( )
signal

The documentation for this class was generated from the following files:
