cx::TabbedWidget Class Reference

Interface for making widgets with a hierarchy of tabs. More...

#include <cxTabbedWidget.h>

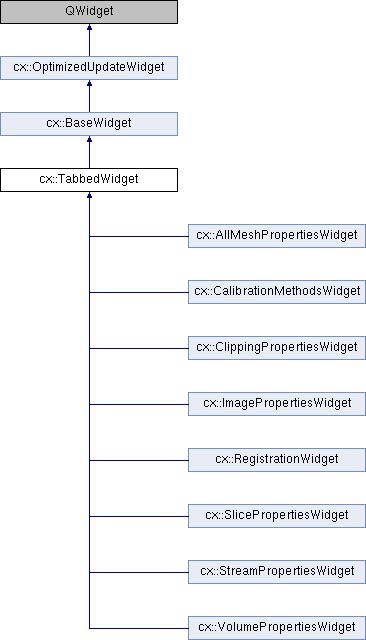

Inheritance diagram for cx::TabbedWidget:
cx::BaseWidget cx::OptimizedUpdateWidget cx::AllMeshPropertiesWidget cx::CalibrationMethodsWidget cx::ClippingPropertiesWidget cx::ImagePropertiesWidget cx::RegistrationWidget cx::SlicePropertiesWidget cx::StreamPropertiesWidget cx::VolumePropertiesWidget

Public Member Functions

 TabbedWidget (QWidget *parent, QString objectName, QString windowTitle)

virtual ~TabbedWidget ()

void addTab (BaseWidget *newTab, QString newTabName)

void insertWidgetAtTop (QWidget *newWidget)

void setDefaultWidget (QWidget *widget)

- Public Member Functions inherited from cx::BaseWidget
 BaseWidget (QWidget *parent, QString objectName, QString windowTitle)

virtual ~BaseWidget ()

QWidget * createMethodWidget (QWidget *inputWidget, QWidget *outputWidget, QString methodname, bool inputChecked=false, bool outputVisible=true)
 Create a specialized widget for filters, with input/ouput, enable and options. More...

QGroupBox * createGroupbox (QWidget *widget, QString boxname)
 Create a group box with a given name. More...

QGroupBox * wrapInGroupBox (QWidget *base, QString name)

CXFramewrapInFrame (QWidget *base)

QAction * createAction2 (QObject *parent, QIcon iconName, QString text, QString tip, QLayout *layout=NULL, QToolButton *button=new QToolButton())

template<class T >
QAction * createAction (QObject *parent, QIcon iconName, QString text, QString tip, T slot, QLayout *layout=NULL, QToolButton *button=new QToolButton())

- Public Member Functions inherited from cx::OptimizedUpdateWidget
 OptimizedUpdateWidget (QWidget *parent=NULL)

virtual ~OptimizedUpdateWidget ()

void forcePrePaint ()


Protected Attributes

QTabWidget * mTabWidget

QVBoxLayout * mLayout


Additional Inherited Members

- Public Slots inherited from cx::BaseWidget
void adjustSizeSlot ()

- Public Slots inherited from cx::OptimizedUpdateWidget
virtual void setModified ()

- Static Public Member Functions inherited from cx::BaseWidget
static QFrame * createHorizontalLine ()
 Creates a horizontal line which can be inserted into widgets. More...

- Protected Member Functions inherited from cx::BaseWidget
virtual void showEvent (QShowEvent *event)

- Protected Member Functions inherited from cx::OptimizedUpdateWidget
virtual void prePaintEvent ()

virtual void paintEvent (QPaintEvent *event)


Detailed Description

Interface for making widgets with a hierarchy of tabs.

Date
27. sep. 2010 \author Janne Beate Bakeng

Definition at line 55 of file cxTabbedWidget.h.

Constructor & Destructor Documentation

cx::TabbedWidget::TabbedWidget ( QWidget *  parent,
QString  objectName,
QString  windowTitle
)

Definition at line 42 of file cxTabbedWidget.cpp.

cx::TabbedWidget::~TabbedWidget ( )
virtual

Definition at line 55 of file cxTabbedWidget.cpp.

Member Function Documentation

void cx::TabbedWidget::addTab ( BaseWidget newTab,
QString  newTabName
)

Definition at line 58 of file cxTabbedWidget.cpp.

void cx::TabbedWidget::insertWidgetAtTop ( QWidget *  newWidget)

Definition at line 65 of file cxTabbedWidget.cpp.

void cx::TabbedWidget::setDefaultWidget ( QWidget *  widget)

Definition at line 78 of file cxTabbedWidget.cpp.

Member Data Documentation

QVBoxLayout* cx::TabbedWidget::mLayout
protected

Definition at line 71 of file cxTabbedWidget.h.

QTabWidget* cx::TabbedWidget::mTabWidget
protected

Definition at line 70 of file cxTabbedWidget.h.


The documentation for this class was generated from the following files:
