cx::GUIExtenderService Class Reference

#include <cxGUIExtenderService.h>

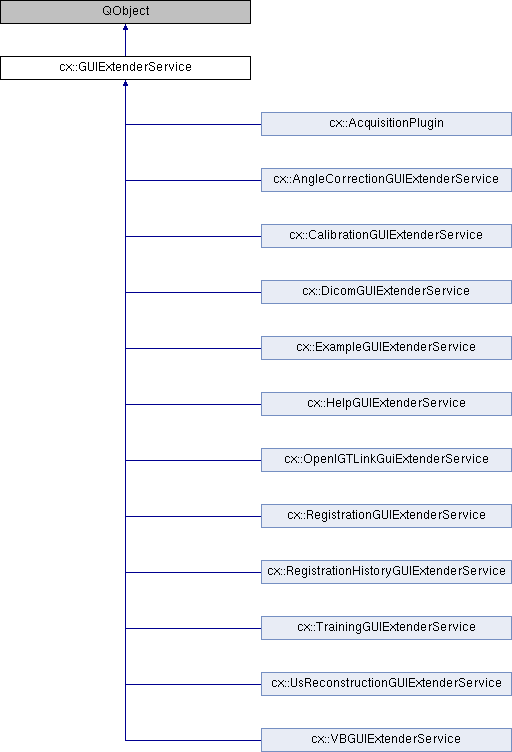

Inheritance diagram for cx::GUIExtenderService:

Classes
struct	CategorizedWidget

Public Member Functions
virtual	~GUIExtenderService ()
virtual std::vector< CategorizedWidget >	createWidgets () const =0
virtual std::vector< QToolBar * >	createToolBars () const

Detailed Description

Interface for service that extends the user interface with more widgets.

Provide a collection of widgets and toolbars that can be added to for example the MainWindow. This is the most generic extension point and can be used for anything that can be accessed from a GUI.

Definition at line 61 of file cxGUIExtenderService.h.

Constructor & Destructor Documentation

virtual cx::GUIExtenderService::~GUIExtenderService ( )

inlinevirtual

Definition at line 74 of file cxGUIExtenderService.h.

Member Function Documentation

virtual std::vector<QToolBar*> cx::GUIExtenderService::createToolBars ( ) const

inlinevirtual

Reimplemented in cx::RegistrationHistoryGUIExtenderService.

Definition at line 77 of file cxGUIExtenderService.h.

virtual std::vector<CategorizedWidget> cx::GUIExtenderService::createWidgets ( ) const

pure virtual

Implemented in cx::AcquisitionPlugin, cx::AngleCorrectionGUIExtenderService, cx::DicomGUIExtenderService, cx::HelpGUIExtenderService, cx::RegistrationHistoryGUIExtenderService, cx::TrainingGUIExtenderService, cx::CalibrationGUIExtenderService, cx::ExampleGUIExtenderService, cx::RegistrationGUIExtenderService, cx::UsReconstructionGUIExtenderService, cx::VBGUIExtenderService, and cx::OpenIGTLinkGuiExtenderService.

---

The documentation for this class was generated from the following file:

• /media/dev/bamboodrive/b/xml-data/build-dir/FX-TB-JOB1/CX/CX/source/resource/GUIExtender/cxGUIExtenderService.h
