cx::DoublePropertyOutputValueParams Class Referenceabstract
Org_custusx_usreconstruction

#include <cxReconstructOutputValueParamsInterfaces.h>

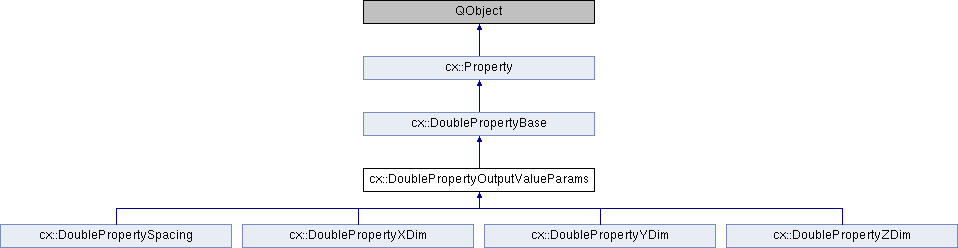

Inheritance diagram for cx::DoublePropertyOutputValueParams:
cx::DoublePropertyBase cx::Property cx::DoublePropertySpacing cx::DoublePropertyXDim cx::DoublePropertyYDim cx::DoublePropertyZDim

Public Member Functions

 DoublePropertyOutputValueParams (UsReconstructionServicePtr reconstructer)

virtual ~DoublePropertyOutputValueParams ()

virtual double getValue () const
 get the data value. More...

virtual bool setValue (double val)
 set the data value. More...

virtual void connectValueSignals (bool on)

- Public Member Functions inherited from cx::DoublePropertyBase
 DoublePropertyBase ()

virtual ~DoublePropertyBase ()

virtual QString getDisplayName () const =0
 name of data entity. Used for display to user. More...

virtual QVariant getValueAsVariant () const

virtual void setValueFromVariant (QVariant val)

virtual QString getUid () const

virtual void setGuiRepresentation (GuiRepresentation type)

virtual GuiRepresentation getGuiRepresentation ()

virtual QString getHelp () const
 return a descriptive help string for the data, used for example as a tool tip. More...

virtual DoubleRange getValueRange () const

virtual double convertInternal2Display (double internal)
 range of value More...

virtual double convertDisplay2Internal (double display)
 conversion from internal value to display value More...

virtual int getValueDecimals () const
 number of relevant decimals in value More...

- Public Member Functions inherited from cx::Property
 Property ()

virtual ~Property ()

virtual bool getEnabled () const
 Get the enabled/disabled state of the Property. More...

virtual bool getAdvanced () const
 Get the advanced flag of the adapter. More...

virtual QString getGroup () const
 Flag the adapter as part of a group. More...


Protected Member Functions

virtual double getValue (OutputVolumeParams *params) const =0

virtual void setValue (OutputVolumeParams *params, double val)=0


Protected Attributes

UsReconstructionServicePtr mReconstructer

- Protected Attributes inherited from cx::DoublePropertyBase
GuiRepresentation mGuiRepresentation

- Protected Attributes inherited from cx::Property
bool mEnabled

bool mAdvanced

QString mGroup


Additional Inherited Members

- Public Types inherited from cx::DoublePropertyBase
enum  GuiRepresentation { grSPINBOX, grSLIDER, grDIAL }

- Public Slots inherited from cx::Property
virtual bool setEnabled (bool enabled)
 Set the enabled/disabled state of the Property. More...

virtual bool setAdvanced (bool advanced)
 Set the advanced flag of the adapter. More...

virtual bool setGroup (QString name)
 Flag the adapter as part of a group. More...

- Signals inherited from cx::Property
void changed ()
 emit when the underlying data value is changed: The user interface will be updated. More...

- Static Public Member Functions inherited from cx::Property
static PropertyPtr findProperty (std::vector< PropertyPtr > properties, QString id)


Detailed Description

Abstract interface to setting one of the values in class OutputValueParams. Sublass to get a concrete class.

Definition at line 55 of file cxReconstructOutputValueParamsInterfaces.h.

Constructor & Destructor Documentation

cx::DoublePropertyOutputValueParams::DoublePropertyOutputValueParams ( UsReconstructionServicePtr  reconstructer)

Definition at line 40 of file cxReconstructOutputValueParamsInterfaces.cpp.

virtual cx::DoublePropertyOutputValueParams::~DoublePropertyOutputValueParams ( )
inlinevirtual

Definition at line 60 of file cxReconstructOutputValueParamsInterfaces.h.

Member Function Documentation

virtual void cx::DoublePropertyOutputValueParams::connectValueSignals ( bool  on)
inlinevirtual

Definition at line 63 of file cxReconstructOutputValueParamsInterfaces.h.

double cx::DoublePropertyOutputValueParams::getValue ( ) const
virtual

get the data value.

Implements cx::DoublePropertyBase.

Definition at line 46 of file cxReconstructOutputValueParamsInterfaces.cpp.

virtual double cx::DoublePropertyOutputValueParams::getValue ( OutputVolumeParams *  params) const
protectedpure virtual

Implemented in cx::DoublePropertyZDim, cx::DoublePropertyYDim, cx::DoublePropertyXDim, and cx::DoublePropertySpacing.

bool cx::DoublePropertyOutputValueParams::setValue ( double  value)
virtual

set the data value.

Implements cx::DoublePropertyBase.

Definition at line 52 of file cxReconstructOutputValueParamsInterfaces.cpp.

virtual void cx::DoublePropertyOutputValueParams::setValue ( OutputVolumeParams *  params,
double  val
)
protectedpure virtual

Implemented in cx::DoublePropertyZDim, cx::DoublePropertyYDim, cx::DoublePropertyXDim, and cx::DoublePropertySpacing.

Member Data Documentation

UsReconstructionServicePtr cx::DoublePropertyOutputValueParams::mReconstructer
protected

Definition at line 71 of file cxReconstructOutputValueParamsInterfaces.h.

The documentation for this class was generated from the following files:
