Widget for performing a fast and aprox landmark based patient registration, using only the matrix translation part. More...

#include <cxFastPatientRegistrationWidget.h>

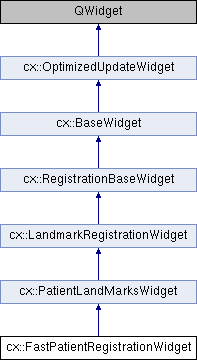

Inheritance diagram for cx::FastPatientRegistrationWidget:

Public Member Functions
	FastPatientRegistrationWidget (RegServicesPtr services, QWidget *parent)

virtual	~FastPatientRegistrationWidget ()

Public Member Functions inherited from cx::PatientLandMarksWidget
	PatientLandMarksWidget (RegServicesPtr services, QWidget *parent, QString objectName, QString windowTitle)
	sets up layout and connects signals and slots More...

virtual	~PatientLandMarksWidget ()
	empty More...

Public Member Functions inherited from cx::LandmarkRegistrationWidget
	LandmarkRegistrationWidget (RegServicesPtr services, QWidget *parent, QString objectName, QString windowTitle)

virtual	~LandmarkRegistrationWidget ()

Public Member Functions inherited from cx::RegistrationBaseWidget
	RegistrationBaseWidget (RegServicesPtr services, QWidget *parent, QString objectName, QString windowTitle)

virtual	~RegistrationBaseWidget ()

Public Member Functions inherited from cx::BaseWidget
	BaseWidget (QWidget *parent, QString objectName, QString windowTitle)

virtual	~BaseWidget ()

QWidget *	createMethodWidget (QWidget inputWidget, QWidget outputWidget, QString methodname, bool inputChecked=false, bool outputVisible=true)
	Create a specialized widget for filters, with input/ouput, enable and options. More...

QGroupBox *	createGroupbox (QWidget *widget, QString boxname)
	Create a group box with a given name. More...

QGroupBox *	wrapInGroupBox (QWidget *base, QString name)

CXFrame *	wrapInFrame (QWidget *base)

QAction *	createAction2 (QObject parent, QIcon iconName, QString text, QString tip, QLayout layout=NULL, QToolButton *button=new QToolButton())

template<class T >
QAction *	createAction (QObject parent, QIcon iconName, QString text, QString tip, T slot, QLayout layout=NULL, QToolButton *button=new QToolButton())

Public Member Functions inherited from cx::OptimizedUpdateWidget
	OptimizedUpdateWidget (QWidget *parent=NULL)

virtual	~OptimizedUpdateWidget ()

void	forcePrePaint ()

Protected Slots
void	mouseClickSampleStateChanged ()

virtual void	pointSampled (Vector3D p_r)

Protected Slots inherited from cx::PatientLandMarksWidget
void	toolSampleButtonClickedSlot ()
	reacts when the Sample Tool button is clicked More...

virtual void	cellClickedSlot (int row, int column)
	when a landmark i selected from the table More...

void	removeLandmarkButtonClickedSlot ()

void	updateToolSampleButton ()

Protected Slots inherited from cx::LandmarkRegistrationWidget
virtual void	cellClickedSlot (int row, int column)
	when a landmark is selected from the table More...

void	cellChangedSlot (int row, int column)
	reacts when the user types in a (landmark) name More...

void	landmarkUpdatedSlot ()

void	updateAverageAccuracyLabel ()

Protected Member Functions
virtual void	showEvent (QShowEvent *event)
	updates internal info before showing the widget More...

virtual void	hideEvent (QHideEvent *event)

Protected Member Functions inherited from cx::PatientLandMarksWidget
virtual void	prePaintEvent ()
	populates the table widget More...

virtual LandmarkMap	getTargetLandmarks () const

virtual Transform3D	getTargetTransform () const

virtual void	setTargetLandmark (QString uid, Vector3D p_target)

virtual QString	getTargetName () const

Protected Member Functions inherited from cx::LandmarkRegistrationWidget
void	setManualToolPosition (Vector3D p_r)

QString	getNextLandmark ()

void	activateLandmark (QString uid)

std::vector< Landmark >	getAllLandmarks () const
	get all the landmarks from the image and the datamanager More...

QString	getLandmarkName (QString uid)

double	getAccuracy (QString uid)

double	getAverageAccuracy ()

Protected Member Functions inherited from cx::OptimizedUpdateWidget
virtual void	paintEvent (QPaintEvent *event)

Protected Attributes
QCheckBox *	mMouseClickSample

Protected Attributes inherited from cx::PatientLandMarksWidget
QPushButton *	mToolSampleButton
	the Sample Tool button More...

QPushButton *	mRemoveLandmarkButton

ActiveToolProxyPtr	mActiveToolProxy

Protected Attributes inherited from cx::LandmarkRegistrationWidget
QVBoxLayout *	mVerticalLayout
	vertical layout is used More...

QTableWidget *	mLandmarkTableWidget
	the table widget presenting the landmarks More...

QLabel *	mAvarageAccuracyLabel
	label showing the average accuracy More...

QString	mActiveLandmark
	uid of surrently selected landmark. More...

LandmarkListenerPtr	mLandmarkListener

Protected Attributes inherited from cx::RegistrationBaseWidget
RegServicesPtr	mServices

Additional Inherited Members
Public Slots inherited from cx::BaseWidget
void	adjustSizeSlot ()

Public Slots inherited from cx::OptimizedUpdateWidget
virtual void	setModified ()

Static Public Member Functions inherited from cx::BaseWidget
static QFrame *	createHorizontalLine ()
	Creates a horizontal line which can be inserted into widgets. More...

Detailed Description

Widget for performing a fast and aprox landmark based patient registration, using only the matrix translation part.

Date: 27. sep. 2010 \author Janne Beate Bakeng

Definition at line 59 of file cxFastPatientRegistrationWidget.h.

Constructor & Destructor Documentation

cx::FastPatientRegistrationWidget::FastPatientRegistrationWidget	(	RegServicesPtr	services,
		QWidget *	parent
	)

Definition at line 42 of file cxFastPatientRegistrationWidget.cpp.

cx::FastPatientRegistrationWidget::~FastPatientRegistrationWidget ( )

virtual

Definition at line 55 of file cxFastPatientRegistrationWidget.cpp.

Member Function Documentation

void cx::FastPatientRegistrationWidget::hideEvent ( QHideEvent * event )

protectedvirtual

Reimplemented from cx::PatientLandMarksWidget.

Definition at line 113 of file cxFastPatientRegistrationWidget.cpp.

void cx::FastPatientRegistrationWidget::mouseClickSampleStateChanged ( )

protectedslot

Definition at line 64 of file cxFastPatientRegistrationWidget.cpp.

void cx::FastPatientRegistrationWidget::pointSampled ( Vector3D p_r )

protectedvirtualslot

Definition at line 90 of file cxFastPatientRegistrationWidget.cpp.

void cx::FastPatientRegistrationWidget::showEvent ( QShowEvent * event )

protectedvirtual

updates internal info before showing the widget

Reimplemented from cx::PatientLandMarksWidget.

Definition at line 107 of file cxFastPatientRegistrationWidget.cpp.

Member Data Documentation

QCheckBox* cx::FastPatientRegistrationWidget::mMouseClickSample

protected

Definition at line 70 of file cxFastPatientRegistrationWidget.h.

The documentation for this class was generated from the following files:

/media/jenkins/bamboo/buildagent/xml-data/build-dir/FX-RE-JOB1/CX/CX/source/plugins/org.custusx.registration.method.landmark/fast/cxFastPatientRegistrationWidget.h
/media/jenkins/bamboo/buildagent/xml-data/build-dir/FX-RE-JOB1/CX/CX/source/plugins/org.custusx.registration.method.landmark/fast/cxFastPatientRegistrationWidget.cpp
