cx::EncodedPackage Class Referenceabstract

#include <cxEncodedPackage.h>

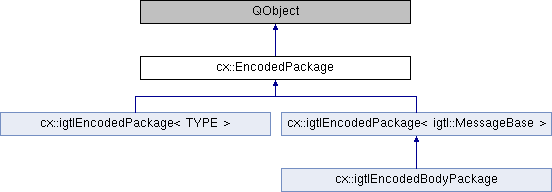

Inheritance diagram for cx::EncodedPackage:
cx::igtlEncodedPackage< TYPE > cx::igtlEncodedPackage< igtl::MessageBase > cx::igtlEncodedBodyPackage

Classes

struct  ByteArray


Public Types

typedef boost::shared_ptr
< ByteArray > 		ByteArrayPtr


Signals

void dataArrived ()


Public Member Functions

 EncodedPackage (char *pointer=NULL, int size=0)

virtual ~EncodedPackage ()

virtual const ByteArrayPtr data () const =0

virtual void notifyDataArrived ()=0

virtual bool isFinishedWith ()=0


Protected Attributes

ByteArrayPtr mData


Detailed Description

Wrapper for shared memory area

Definition at line 50 of file cxEncodedPackage.h.

Member Typedef Documentation

typedef boost::shared_ptr<ByteArray> cx::EncodedPackage::ByteArrayPtr

Definition at line 60 of file cxEncodedPackage.h.

Constructor & Destructor Documentation

cx::EncodedPackage::EncodedPackage ( char *  pointer = NULL,
int  size = 0
)

Definition at line 6 of file cxEncodedPackage.cpp.

virtual cx::EncodedPackage::~EncodedPackage ( )
inlinevirtual

Definition at line 64 of file cxEncodedPackage.h.

Member Function Documentation

virtual const ByteArrayPtr cx::EncodedPackage::data ( ) const
pure virtual

Implemented in cx::igtlEncodedPackage< TYPE >, and cx::igtlEncodedPackage< igtl::MessageBase >.

void cx::EncodedPackage::dataArrived ( )
signal
virtual bool cx::EncodedPackage::isFinishedWith ( )
pure virtual

Implemented in cx::igtlEncodedPackage< TYPE >, and cx::igtlEncodedPackage< igtl::MessageBase >.

virtual void cx::EncodedPackage::notifyDataArrived ( )
pure virtual

Implemented in cx::igtlEncodedPackage< TYPE >, and cx::igtlEncodedPackage< igtl::MessageBase >.

Member Data Documentation

ByteArrayPtr cx::EncodedPackage::mData
protected

Definition at line 74 of file cxEncodedPackage.h.

The documentation for this class was generated from the following files:
