cx::ViewService Class Referenceabstract
View

Visualization services. More...

#include <cxViewService.h>

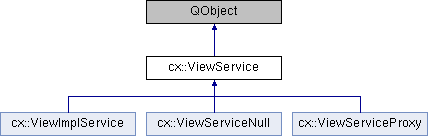

Inheritance diagram for cx::ViewService:
cx::ViewImplService cx::ViewServiceNull cx::ViewServiceProxy

Public Slots

virtual void aboutToStop ()=0


Signals

void fps (int number)
 Emits number of frames per second. More...

void activeLayoutChanged ()
 emitted when the active layout changes More...

void activeViewChanged ()
 emitted when the active view changes More...

void renderingEnabledChanged ()
 emitted then rendering is enabled/disabled More...

void pointSampled (Vector3D p_r)

void renderFinished ()


Public Member Functions

virtual ViewPtr get3DView (int group=0, int index=0)=0

RepContainerPtr get3DReps (int group=0, int index=0)

virtual int getActiveGroupId () const =0

virtual ViewGroupDataPtr getGroup (int groupIdx) const =0

unsigned groupCount () const

virtual void setRegistrationMode (REGISTRATION_STATUS mode)=0

virtual void autoShowData (DataPtr data)=0

virtual void enableRender (bool val)=0

virtual bool renderingIsEnabled () const =0

virtual QWidget * createLayoutWidget (QWidget *parent, int index=0)=0
 Get the specified layout widget, create if necessary. More...

virtual QWidget * getLayoutWidget (int index)=0
 Get the specified layout widget, NULL if not created. More...

virtual QString getActiveLayout (int widgetIndex=0) const =0

virtual void setActiveLayout (const QString &uid, int widgetIndex=0)=0

virtual void deactivateLayout ()

virtual ClippersPtr getClippers ()=0

virtual InteractiveCropperPtr getCropper ()=0

virtual CyclicActionLoggerPtr getRenderTimer ()=0

virtual NavigationPtr getNavigation ()=0

virtual LayoutRepositoryPtr getLayoutRepository ()=0

virtual CameraControlPtr getCameraControl ()=0

virtual QActionGroup * getInteractorStyleActionGroup ()=0

virtual void centerToImageCenterInActiveViewGroup ()=0

virtual void setCameraStyle (CAMERA_STYLE_TYPE style, int groupIdx)=0

virtual void addDefaultLayout (LayoutData layoutData)=0

virtual bool isNull ()=0

ViewGroupDataPtr getActiveViewGroup ()


Static Public Member Functions

static ViewServicePtr getNullObject ()


Detailed Description

Visualization services.

Date
2014-09-19
Author
Ole Vegard Solberg, SINTEF

Definition at line 70 of file cxViewService.h.

Member Function Documentation

virtual void cx::ViewService::aboutToStop ( )
pure virtualslot
void cx::ViewService::activeLayoutChanged ( )
signal

emitted when the active layout changes

void cx::ViewService::activeViewChanged ( )
signal

emitted when the active view changes

virtual void cx::ViewService::addDefaultLayout ( LayoutData  layoutData)
pure virtual

Implemented in cx::ViewImplService, cx::ViewServiceProxy, and cx::ViewServiceNull.

virtual void cx::ViewService::autoShowData ( DataPtr  data)
pure virtual

Implemented in cx::ViewImplService, cx::ViewServiceProxy, and cx::ViewServiceNull.

virtual void cx::ViewService::centerToImageCenterInActiveViewGroup ( )
pure virtual

Implemented in cx::ViewImplService, cx::ViewServiceProxy, and cx::ViewServiceNull.

virtual QWidget* cx::ViewService::createLayoutWidget ( QWidget *  parent,
int  index = 0
)
pure virtual

Get the specified layout widget, create if necessary.

Implemented in cx::ViewImplService, cx::ViewServiceProxy, and cx::ViewServiceNull.

void cx::ViewService::deactivateLayout ( )
virtual

Definition at line 59 of file cxViewService.cpp.

virtual void cx::ViewService::enableRender ( bool  val)
pure virtual

Implemented in cx::ViewImplService, cx::ViewServiceProxy, and cx::ViewServiceNull.

void cx::ViewService::fps ( int  number)
signal

Emits number of frames per second.

RepContainerPtr cx::ViewService::get3DReps ( int  group = 0,
int  index = 0
)

Definition at line 65 of file cxViewService.cpp.

virtual ViewPtr cx::ViewService::get3DView ( int  group = 0,
int  index = 0
)
pure virtual

Implemented in cx::ViewImplService, cx::ViewServiceProxy, and cx::ViewServiceNull.

virtual int cx::ViewService::getActiveGroupId ( ) const
pure virtual

Implemented in cx::ViewImplService, cx::ViewServiceProxy, and cx::ViewServiceNull.

virtual QString cx::ViewService::getActiveLayout ( int  widgetIndex = 0) const
pure virtual

Implemented in cx::ViewImplService, cx::ViewServiceProxy, and cx::ViewServiceNull.

ViewGroupDataPtr cx::ViewService::getActiveViewGroup ( )

Definition at line 75 of file cxViewService.cpp.

virtual CameraControlPtr cx::ViewService::getCameraControl ( )
pure virtual

Implemented in cx::ViewImplService, cx::ViewServiceProxy, and cx::ViewServiceNull.

virtual ClippersPtr cx::ViewService::getClippers ( )
pure virtual

Implemented in cx::ViewImplService, cx::ViewServiceProxy, and cx::ViewServiceNull.

virtual InteractiveCropperPtr cx::ViewService::getCropper ( )
pure virtual

Implemented in cx::ViewImplService, cx::ViewServiceProxy, and cx::ViewServiceNull.

virtual ViewGroupDataPtr cx::ViewService::getGroup ( int  groupIdx) const
pure virtual

Implemented in cx::ViewImplService, cx::ViewServiceProxy, and cx::ViewServiceNull.

virtual QActionGroup* cx::ViewService::getInteractorStyleActionGroup ( )
pure virtual

Implemented in cx::ViewImplService, cx::ViewServiceProxy, and cx::ViewServiceNull.

virtual LayoutRepositoryPtr cx::ViewService::getLayoutRepository ( )
pure virtual

Implemented in cx::ViewImplService, cx::ViewServiceProxy, and cx::ViewServiceNull.

virtual QWidget* cx::ViewService::getLayoutWidget ( int  index)
pure virtual

Get the specified layout widget, NULL if not created.

Implemented in cx::ViewImplService, cx::ViewServiceProxy, and cx::ViewServiceNull.

virtual NavigationPtr cx::ViewService::getNavigation ( )
pure virtual

Implemented in cx::ViewImplService, cx::ViewServiceProxy, and cx::ViewServiceNull.

ViewServicePtr cx::ViewService::getNullObject ( )
static

Definition at line 42 of file cxViewService.cpp.

virtual CyclicActionLoggerPtr cx::ViewService::getRenderTimer ( )
pure virtual

Implemented in cx::ViewImplService, cx::ViewServiceProxy, and cx::ViewServiceNull.

unsigned cx::ViewService::groupCount ( ) const

Definition at line 51 of file cxViewService.cpp.

virtual bool cx::ViewService::isNull ( )
pure virtual

Implemented in cx::ViewImplService, cx::ViewServiceProxy, and cx::ViewServiceNull.

void cx::ViewService::pointSampled ( Vector3D  p_r)
signal
void cx::ViewService::renderFinished ( )
signal
void cx::ViewService::renderingEnabledChanged ( )
signal

emitted then rendering is enabled/disabled

virtual bool cx::ViewService::renderingIsEnabled ( ) const
pure virtual

Implemented in cx::ViewImplService, cx::ViewServiceProxy, and cx::ViewServiceNull.

virtual void cx::ViewService::setActiveLayout ( const QString &  uid,
int  widgetIndex = 0
)
pure virtual

Implemented in cx::ViewImplService, cx::ViewServiceProxy, and cx::ViewServiceNull.

virtual void cx::ViewService::setCameraStyle ( CAMERA_STYLE_TYPE  style,
int  groupIdx
)
pure virtual

Implemented in cx::ViewImplService, cx::ViewServiceProxy, and cx::ViewServiceNull.

virtual void cx::ViewService::setRegistrationMode ( REGISTRATION_STATUS  mode)
pure virtual

Implemented in cx::ViewImplService, cx::ViewServiceProxy, and cx::ViewServiceNull.

The documentation for this class was generated from the following files:
