PatientModel

The virtual patient. More...

Classes

class  cx::ActiveData
 Provides the last active data of warious types. More...

class  cx::ActiveImageProxy
 Helper class for connection the active image.By listening to this class, you will always listen to the active image. More...

class  cx::AngleMetric
 Data class that represents an angle between two lines. More...

class  cx::Data
 Superclass for all data objects. More...

class  cx::DataFactory

class  cx::DataMetric
 Base class for all Data Metrics. More...

class  cx::StaticMutexVtkLocker

class  cx::DataReader
 Interface for Data file readers. More...

class  cx::MetaImageReader
 Reader for metaheader .mhd files. More...

class  cx::PNGImageReader
 Reader for portable network graphics .png files. More...

class  cx::PolyDataMeshReader
 Reader for .vtk files. More...

class  cx::StlMeshReader
 Reader for STL files. More...

class  cx::DataReaderWriter

class  cx::DistanceMetric
 Data class that represents a distance between two points, or a point and a plane. More...

class  cx::FrameForest
 A graph combining Space dependencies between all Data.Relations between coordinate spaces among Data are created by this class. More...

class  cx::FrameMetric
 Data class that represents a single frame (transform). More...

class  cx::FrameMetricBase
 Abstract base class for frame metric. More...

class  cx::GPUImageDataBuffer
 Helper class for sharing GPU memory over several Views (GL contexts). More...

class  cx::GPUImageLutBuffer
 Helper class for sharing GPU memory over several Views (GL contexts). More...

class  cx::GPUImageBufferRepository
 Repository for GPU buffers. More...

class  cx::Image
 A volumetric data set. More...

class  cx::ImageDefaultTFGenerator

class  cx::ImageLUT2D
 Handling of color and opacity for 2D slices. More...

class  cx::ImageParameters

class  cx::ImageTF3D
 Handler for the transfer functions used in 3d image volumes. More...

class  cx::ImageTFData
 Data class for Transfer Function info, either 2D or 3D. More...

class  cx::Landmark
 One landmark, or fiducial, coordinate. More...

class  cx::Mesh
 A mesh data set. More...

class  cx::MetricReferenceArgumentList
 Collection of Metric arguments that refer to another metric. More...

class  cx::NavigatedVideoImage
 Image subclass for live updated 2D images tied to a tool. More...

class  cx::PlaneMetric
 Data class representing a plane. More...

class  cx::PointMetric
 Data class that represents a single point. More...

class  cx::RegistrationTransform
 A registration event and its transform. More...

class  cx::DonutMetric
 Data class that represents a donut. More...

class  cx::SphereMetric
 Data class that represents a donut. More...

class  cx::ToolMetric

class  cx::TrackedStream
 A data set for video streams (2D/3D). More...

class  cx::TransferFunctions3DPresets
 Handles transfer function presets. More...

class  cx::UnsignedDerivedImage
 Class that holds an unsigned version of a base Image. More...

class  cx::PatientModelService
 The virtual patient. More...

class  cx::PatientModelServiceNull
 Null Object Pattern for Registration service. More...

class  cx::PatientModelServiceProxy
 Always provides a PatientModelService. More...

class  cx::Presets
 Base class for a group of presets in the system. More...


Typedefs

typedef boost::shared_ptr
< class ActiveImageProxy >
cx::ActiveImageProxyPtr

typedef boost::shared_ptr
< class AngleMetric >
cx::AngleMetricPtr

typedef boost::shared_ptr
< DataMetric >
cx::DataMetricPtr

typedef boost::shared_ptr
< DataReader >
cx::DataReaderPtr

typedef boost::shared_ptr
< class DistanceMetric >
cx::DistanceMetricPtr

typedef boost::shared_ptr
< class GPUImageDataBuffer >
cx::GPUImageDataBufferPtr

typedef boost::weak_ptr< class
GPUImageDataBuffer >
cx::GPUImageDataBufferWeakPtr

typedef boost::shared_ptr
< class GPUImageLutBuffer >
cx::GPUImageLutBufferPtr

typedef boost::weak_ptr< class
GPUImageLutBuffer >
cx::GPUImageLutBufferWeakPtr

typedef boost::shared_ptr
< class PlaneMetric >
cx::PlaneMetricPtr

typedef boost::shared_ptr
< class PointMetric >
cx::PointMetricPtr

typedef boost::shared_ptr
< class DonutMetric >
cx::DonutMetricPtr

typedef boost::shared_ptr
< class SphereMetric >
cx::SphereMetricPtr


Functions

GPUImageDataBufferPtr cx::createGPUImageDataBuffer (vtkImageDataPtr volume)

GPUImageLutBufferPtr cx::createGPUImageLutBuffer (vtkUnsignedCharArrayPtr lut)


Detailed Description

The virtual patient.

A model of the patient. Data sets of various modalities, fiducials and labels are described in relation to each other.

See Also
PatientModelService

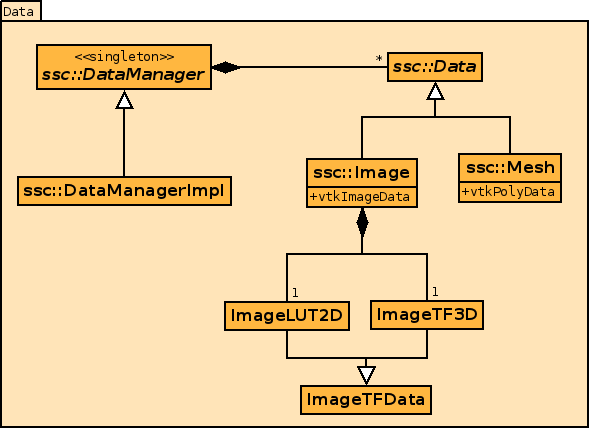

Basic relation between the Data interfaces and classes.

Typedef Documentation

typedef boost::shared_ptr< class ActiveImageProxy > cx::ActiveImageProxyPtr

Definition at line 50 of file cxDataInterface.h.

typedef boost::shared_ptr< class AngleMetric > cx::AngleMetricPtr

Definition at line 54 of file cxAngleMetric.h.

typedef boost::shared_ptr< class DataMetric > cx::DataMetricPtr

Definition at line 95 of file cxDataMetric.h.

typedef boost::shared_ptr<DataReader> cx::DataReaderPtr

Definition at line 98 of file cxDataReaderWriter.h.

typedef boost::shared_ptr<class DistanceMetric> cx::DistanceMetricPtr

Definition at line 52 of file cxDistanceMetric.h.

typedef boost::shared_ptr< class DonutMetric > cx::DonutMetricPtr

Definition at line 50 of file cxShapedMetric.h.

typedef boost::shared_ptr< GPUImageDataBuffer > cx::GPUImageDataBufferPtr

Definition at line 74 of file cxForwardDeclarations.h.

typedef boost::weak_ptr< GPUImageDataBuffer > cx::GPUImageDataBufferWeakPtr

Definition at line 75 of file cxForwardDeclarations.h.

typedef boost::shared_ptr< GPUImageLutBuffer > cx::GPUImageLutBufferPtr

Definition at line 76 of file cxForwardDeclarations.h.

typedef boost::weak_ptr< GPUImageLutBuffer > cx::GPUImageLutBufferWeakPtr

Definition at line 77 of file cxForwardDeclarations.h.

typedef boost::shared_ptr<class PlaneMetric> cx::PlaneMetricPtr

Definition at line 55 of file cxPlaneMetric.h.

typedef boost::shared_ptr< class PointMetric > cx::PointMetricPtr

Definition at line 103 of file cxForwardDeclarations.h.

typedef boost::shared_ptr< class SphereMetric > cx::SphereMetricPtr

Definition at line 43 of file cxDataRepContainer.h.

Function Documentation

cxResource_EXPORT GPUImageDataBufferPtr cx::createGPUImageDataBuffer ( vtkImageDataPtr  volume)

Definition at line 382 of file cxGPUImageBuffer.cpp.

cxResource_EXPORT GPUImageLutBufferPtr cx::createGPUImageLutBuffer ( vtkUnsignedCharArrayPtr  lut)

Definition at line 389 of file cxGPUImageBuffer.cpp.
