Base class for all Data Metrics. More...

#include <cxDataMetric.h>

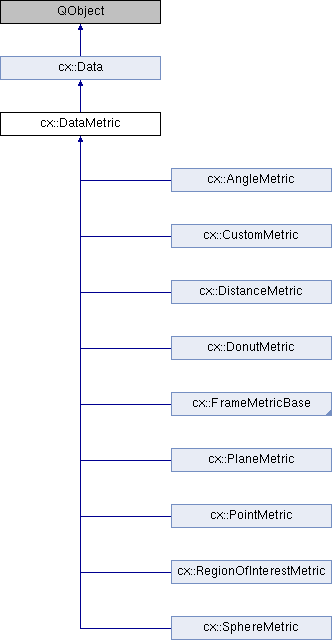

Inheritance diagram for cx::DataMetric:

Public Member Functions
	DataMetric (const QString &uid, const QString &name, PatientModelServicePtr dataManager, SpaceProviderPtr spaceProvider)

virtual	~DataMetric ()

virtual QIcon	getIcon ()

virtual QString	getSpace ()

virtual Vector3D	getRefCoord () const =0

virtual Transform3D	getRefFrame () const

virtual bool	isValid () const

virtual QString	getValueAsString () const =0

virtual bool	showValueInGraphics () const

void	setColor (const QColor &color)

QColor	getColor ()

void	addXml (QDomNode &dataNode)
	adds xml information about the data and its variabels More...

void	parseXml (QDomNode &dataNode)
	Use a XML node to load data. More...

virtual bool	load (QString path, FileManagerServicePtr filemanager)
	metrics don't store info in file, xml only. More...

virtual void	save (const QString &basePath, FileManagerServicePtr filemanager)
	metrics don't store info in file, xml only. More...

Public Member Functions inherited from cx::Data
	Data (const QString &uid, const QString &name="")

virtual	~Data ()

void	setUid (const QString &uid)

void	setName (const QString &name)

void	setAcquisitionTime (QDateTime time)

void	setSoftwareAcquisitionTime (QDateTime time)

void	setOriginalAcquisitionTime (QDateTime time)

virtual RegistrationHistoryPtr	get_rMd_History ()

LandmarksPtr	getLandmarks ()

virtual QString	getUid () const

virtual QString	getName () const

virtual Transform3D	get_rMd () const

virtual QDateTime	getAcquisitionTime () const

virtual TimeInfo	getAdvancedTimeInfo () const

virtual QString	getType () const

virtual bool	isEqual (DataPtr metric)

virtual QString	getFilename () const

virtual void	setFilename (QString val)

virtual QString	getParentSpace ()

virtual DoubleBoundingBox3D	boundingBox () const =0

virtual std::vector< Vector3D >	getPointCloud () const

virtual CoordinateSystem	getCoordinateSystem ()

virtual void	addPersistentClipPlane (vtkPlanePtr plane)

virtual std::vector< vtkPlanePtr >	getAllClipPlanes ()

virtual void	clearPersistentClipPlanes ()

virtual void	setInteractiveClipPlane (vtkPlanePtr plane)
	set a plane that is not saved More...

void	addInteractiveClipPlane (vtkPlanePtr plane)

void	removeInteractiveClipPlane (vtkPlanePtr plane)

Protected Attributes
PatientModelServicePtr	mDataManager

SpaceProviderPtr	mSpaceProvider

QColor	mColor

Protected Attributes inherited from cx::Data
QString	mUid

QString	mName

QString	mFilename

TimeInfo	mTimeInfo

LandmarksPtr	mLandmarks

REGISTRATION_STATUS	mRegistrationStatus

RegistrationHistoryPtr	m_rMd_History

std::vector< vtkPlanePtr >	mPersistentClipPlanes

std::vector< vtkPlanePtr >	mInteractiveClipPlanes

vtkPlanePtr	mInteractiveClipPlane

Additional Inherited Members
Signals inherited from cx::Data
void	transformChanged ()
	emitted when transform is changed More...

void	propertiesChanged ()
	emitted when one of the metadata properties (uid, name etc) changes More...

void	clipPlanesChanged ()

Protected Slots inherited from cx::Data
virtual void	transformChangedSlot ()

Detailed Description

Base class for all Data Metrics.

Data Metrics are Data subclasses that aims to add measurements to the system, such as points, angles and distances.

Date: Aug 2, 2011

Author: Christian Askeland, SINTEF

Definition at line 43 of file cxDataMetric.h.

Constructor & Destructor Documentation

cx::DataMetric::DataMetric	(	const QString &	uid,
		const QString &	name,
		PatientModelServicePtr	dataManager,
		SpaceProviderPtr	spaceProvider
	)

Definition at line 24 of file cxDataMetric.cpp.

cx::DataMetric::~DataMetric ( )

virtual

Definition at line 34 of file cxDataMetric.cpp.

Member Function Documentation

void cx::DataMetric::addXml ( QDomNode & dataNode )

virtual

adds xml information about the data and its variabels

Reimplemented from cx::Data.

Reimplemented in cx::RegionOfInterestMetric, cx::PlaneMetric, cx::PointMetric, cx::DonutMetric, cx::DistanceMetric, cx::ToolMetric, cx::SphereMetric, and cx::FrameMetric.

Definition at line 55 of file cxDataMetric.cpp.

QColor cx::DataMetric::getColor ( )

Definition at line 49 of file cxDataMetric.cpp.

virtual QIcon cx::DataMetric::getIcon ( )

inlinevirtual

Reimplemented from cx::Data.

Reimplemented in cx::PlaneMetric, cx::PointMetric, cx::SphereMetric, cx::ToolMetric, cx::AngleMetric, cx::CustomMetric, cx::DonutMetric, cx::FrameMetric, and cx::DistanceMetric.

Definition at line 49 of file cxDataMetric.h.

virtual Vector3D cx::DataMetric::getRefCoord ( ) const

pure virtual

Implemented in cx::CustomMetric, cx::RegionOfInterestMetric, cx::DonutMetric, cx::PointMetric, cx::AngleMetric, cx::DistanceMetric, cx::PlaneMetric, cx::SphereMetric, and cx::FrameMetricBase.

virtual Transform3D cx::DataMetric::getRefFrame ( ) const

inlinevirtual

Reimplemented in cx::FrameMetricBase.

Definition at line 53 of file cxDataMetric.h.

QString cx::DataMetric::getSpace ( )

virtual

Reimplemented from cx::Data.

Definition at line 38 of file cxDataMetric.cpp.

virtual QString cx::DataMetric::getValueAsString ( ) const

pure virtual

Implemented in cx::RegionOfInterestMetric, cx::CustomMetric, cx::PlaneMetric, cx::DonutMetric, cx::DistanceMetric, cx::AngleMetric, cx::PointMetric, cx::SphereMetric, and cx::FrameMetricBase.

virtual bool cx::DataMetric::isValid ( ) const

inlinevirtual

Reimplemented in cx::RegionOfInterestMetric, cx::DistanceMetric, cx::AngleMetric, cx::CustomMetric, cx::DonutMetric, and cx::SphereMetric.

Definition at line 54 of file cxDataMetric.h.

bool cx::DataMetric::load	(	QString	path,
		FileManagerServicePtr	filemanager
	)

virtual

metrics don't store info in file, xml only.

Implements cx::Data.

Definition at line 81 of file cxDataMetric.cpp.

void cx::DataMetric::parseXml ( QDomNode & dataNode )

virtual

Use a XML node to load data.

Parameters

dataNode A XML data representation of this object.

Reimplemented from cx::Data.

Reimplemented in cx::RegionOfInterestMetric, cx::PlaneMetric, cx::PointMetric, cx::DonutMetric, cx::DistanceMetric, cx::ToolMetric, cx::SphereMetric, and cx::FrameMetric.

Definition at line 65 of file cxDataMetric.cpp.

virtual void cx::DataMetric::save	(	const QString &	basePath,
		FileManagerServicePtr	filemanager
	)

inlinevirtual

metrics don't store info in file, xml only.

Implements cx::Data.

Definition at line 64 of file cxDataMetric.h.

void cx::DataMetric::setColor ( const QColor & color )

Definition at line 43 of file cxDataMetric.cpp.

virtual bool cx::DataMetric::showValueInGraphics ( ) const

inlinevirtual

Reimplemented in cx::RegionOfInterestMetric, cx::CustomMetric, cx::PlaneMetric, cx::DonutMetric, cx::DistanceMetric, cx::AngleMetric, cx::PointMetric, cx::SphereMetric, and cx::FrameMetricBase.

Definition at line 56 of file cxDataMetric.h.

Member Data Documentation

QColor cx::DataMetric::mColor

protected

Definition at line 70 of file cxDataMetric.h.

PatientModelServicePtr cx::DataMetric::mDataManager

protected

Definition at line 67 of file cxDataMetric.h.

SpaceProviderPtr cx::DataMetric::mSpaceProvider

protected

Definition at line 68 of file cxDataMetric.h.

The documentation for this class was generated from the following files:

/media/jenkins/bamboo/buildagent/xml-data/build-dir/CX-NI-JOB1/CX/CX/source/resource/core/Data/cxDataMetric.h
/media/jenkins/bamboo/buildagent/xml-data/build-dir/CX-NI-JOB1/CX/CX/source/resource/core/Data/cxDataMetric.cpp
