CustusX  22.04-rc5
An IGT application
Public Member Functions | Protected Member Functions | List of all members
cx::SeansVesselRegistrationWidget Class Reference
CustusX System » Plugins » Org_custusx_registration_method_vessel

I2I (image2image) ICP registration. More...

#include <cxSeansVesselRegistrationWidget.h>

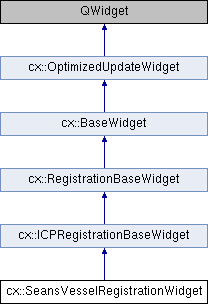

Inheritance diagram for cx::SeansVesselRegistrationWidget:
cx::ICPRegistrationBaseWidget cx::RegistrationBaseWidget cx::BaseWidget cx::OptimizedUpdateWidget

Public Member Functions

 SeansVesselRegistrationWidget (RegServicesPtr services, QWidget *parent)

virtual ~SeansVesselRegistrationWidget ()

- Public Member Functions inherited from cx::ICPRegistrationBaseWidget
 ICPRegistrationBaseWidget (RegServicesPtr services, QWidget *parent, QString uid, QString name)

virtual ~ICPRegistrationBaseWidget ()

- Public Member Functions inherited from cx::RegistrationBaseWidget
 RegistrationBaseWidget (RegServicesPtr services, QWidget *parent, QString objectName, QString windowTitle)

virtual ~RegistrationBaseWidget ()

- Public Member Functions inherited from cx::BaseWidget
 BaseWidget (QWidget *parent, QString objectName, QString windowTitle)

virtual ~BaseWidget ()

QWidget * createMethodWidget (QWidget *inputWidget, QWidget *outputWidget, QString methodname, bool inputChecked=false, bool outputVisible=true)
 Create a specialized widget for filters, with input/ouput, enable and options. More...

QGroupBox * createGroupbox (QWidget *widget, QString boxname)
 Create a group box with a given name. More...

QGroupBox * wrapInGroupBox (QWidget *base, QString name)

CXFrame * wrapInFrame (QWidget *base)

QAction * createAction2 (QObject *parent, QIcon iconName, QString text, QString tip, QLayout *layout=NULL, QToolButton *button=new QToolButton())

template<class T >
QAction * createAction (QObject *parent, QIcon iconName, QString text, QString tip, T slot, QLayout *layout=NULL, QToolButton *button=new QToolButton())

- Public Member Functions inherited from cx::OptimizedUpdateWidget
 OptimizedUpdateWidget (QWidget *parent=NULL)

virtual ~OptimizedUpdateWidget ()

void forcePrePaint ()


Protected Member Functions

virtual void initializeRegistrator ()

virtual void inputChanged ()

virtual void applyRegistration (Transform3D delta)

virtual void onShown ()

virtual void setup ()

- Protected Member Functions inherited from cx::ICPRegistrationBaseWidget
virtual double getDefaultAutoLTS () const

virtual void prePaintEvent ()

void onSpacesChanged ()

void onSettingsChanged ()

- Protected Member Functions inherited from cx::BaseWidget
virtual void showEvent (QShowEvent *event)

- Protected Member Functions inherited from cx::OptimizedUpdateWidget
virtual void paintEvent (QPaintEvent *event)


Additional Inherited Members

- Public Slots inherited from cx::BaseWidget
void adjustSizeSlot ()

- Public Slots inherited from cx::OptimizedUpdateWidget
virtual void setModified ()

- Static Public Member Functions inherited from cx::BaseWidget
static QFrame * createHorizontalLine ()
 Creates a horizontal line which can be inserted into widgets. More...

- Protected Slots inherited from cx::ICPRegistrationBaseWidget
void registerSlot ()

- Protected Attributes inherited from cx::ICPRegistrationBaseWidget
DoublePropertyPtr mLTSRatio

DoublePropertyPtr mMargin

BoolPropertyPtr mLinear

BoolPropertyPtr mAutoLTS

BoolPropertyPtr mDisplayProgress

BoolPropertyPtr mOneStep

DoublePropertyPtr mNumberOfIterations

DoublePropertyPtr mStopThreshold

DoublePropertyPtr mMaxTime

ICPWidget * mICPWidget

XmlOptionFile mOptions

SeansVesselRegPtr mRegistrator

boost::shared_ptr< class WidgetObscuredListener > mObscuredListener

- Protected Attributes inherited from cx::RegistrationBaseWidget
RegServicesPtr mServices


Detailed Description

I2I (image2image) ICP registration.

Date
Feb 21, 2011
Author
Janne Beate Bakeng, SINTEF

Definition at line 47 of file cxSeansVesselRegistrationWidget.h.

Constructor & Destructor Documentation

cx::SeansVesselRegistrationWidget::SeansVesselRegistrationWidget ( RegServicesPtr  services,
QWidget *  parent
)

Definition at line 43 of file cxSeansVesselRegistrationWidget.cpp.

cx::SeansVesselRegistrationWidget::~SeansVesselRegistrationWidget ( )
virtual

Definition at line 78 of file cxSeansVesselRegistrationWidget.cpp.

Member Function Documentation

void cx::SeansVesselRegistrationWidget::applyRegistration ( Transform3D  delta)
protectedvirtual

subclass must set the given registration delta into the registration manager.

Implements cx::ICPRegistrationBaseWidget.

Definition at line 105 of file cxSeansVesselRegistrationWidget.cpp.

void cx::SeansVesselRegistrationWidget::initializeRegistrator ( )
protectedvirtual

subclass must call mRegistrator->initialize() with proper input

Implements cx::ICPRegistrationBaseWidget.

Definition at line 82 of file cxSeansVesselRegistrationWidget.cpp.

void cx::SeansVesselRegistrationWidget::inputChanged ( )
protectedvirtual

Definition at line 91 of file cxSeansVesselRegistrationWidget.cpp.

void cx::SeansVesselRegistrationWidget::onShown ( )
protectedvirtual

called when widget is shown. Subclass must update data if needed.

Implements cx::ICPRegistrationBaseWidget.

Definition at line 110 of file cxSeansVesselRegistrationWidget.cpp.

void cx::SeansVesselRegistrationWidget::setup ( )
protectedvirtual

subclass must implement to setup widget

Implements cx::ICPRegistrationBaseWidget.

Definition at line 50 of file cxSeansVesselRegistrationWidget.cpp.

The documentation for this class was generated from the following files:
