cx::ImageMapperMonitor Class Reference

#include <cxImageMapperMonitor.h>

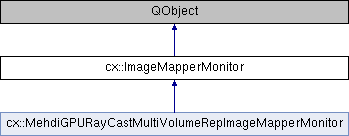

Inheritance diagram for cx::ImageMapperMonitor:

Public Member Functions
	~ImageMapperMonitor ()

Static Public Member Functions
static ImageMapperMonitorPtr	create (vtkVolumePtr volume, ImagePtr image)

Protected Slots
virtual void	applyCropping ()
virtual void	clearClipping ()
virtual void	applyClipping ()

Protected Member Functions
	ImageMapperMonitor (vtkVolumePtr volume, ImagePtr image)
void	init ()

Protected Attributes
vtkVolumePtr	mVolume
ImagePtr	mImage

Detailed Description

Helper class that uses the stored clip planes in a Image to clip it in a mapper.

Used internally by VolumetricRep - No need to use this elsewhere!

Author

christiana

Definition at line 36 of file cxImageMapperMonitor.h.

Constructor & Destructor Documentation

cx::ImageMapperMonitor::~ImageMapperMonitor

(

)

Definition at line 48 of file cxImageMapperMonitor.cpp.

cx::ImageMapperMonitor::ImageMapperMonitor ( vtkVolumePtr  volume, ImagePtr  image  )

protected

Definition at line 34 of file cxImageMapperMonitor.cpp.

Member Function Documentation

void cx::ImageMapperMonitor::applyClipping ( )

protectedvirtualslot

Reimplemented in cx::MehdiGPURayCastMultiVolumeRepImageMapperMonitor.

Definition at line 70 of file cxImageMapperMonitor.cpp.

void cx::ImageMapperMonitor::applyCropping ( )

protectedvirtualslot

Reimplemented in cx::MehdiGPURayCastMultiVolumeRepImageMapperMonitor.

Definition at line 90 of file cxImageMapperMonitor.cpp.

void cx::ImageMapperMonitor::clearClipping ( )

protectedvirtualslot

Reimplemented in cx::MehdiGPURayCastMultiVolumeRepImageMapperMonitor.

Definition at line 58 of file cxImageMapperMonitor.cpp.

ImageMapperMonitorPtr cx::ImageMapperMonitor::create ( vtkVolumePtr  volume, ImagePtr  image  )

static

Definition at line 27 of file cxImageMapperMonitor.cpp.

void cx::ImageMapperMonitor::init ( )

protected

Definition at line 42 of file cxImageMapperMonitor.cpp.

Member Data Documentation

ImagePtr cx::ImageMapperMonitor::mImage

protected

Definition at line 51 of file cxImageMapperMonitor.h.

vtkVolumePtr cx::ImageMapperMonitor::mVolume

protected

Definition at line 50 of file cxImageMapperMonitor.h.

---

The documentation for this class was generated from the following files:

• /media/dev/bamboodrive/b/xml-data/build-dir/CX-TB-JOB1/CX/CX/source/resource/view/Primitives/cxImageMapperMonitor.h
• /media/dev/bamboodrive/b/xml-data/build-dir/CX-TB-JOB1/CX/CX/source/resource/view/Primitives/cxImageMapperMonitor.cpp
