cx::VolumetricRep Class Reference

Display a volume in 3D. More...

#include <cxVolumetricRep.h>

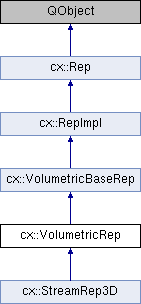

Inheritance diagram for cx::VolumetricRep:

Public Member Functions
virtual	~VolumetricRep ()
virtual QString	getType () const
virtual void	setImage (ImagePtr image)
	set the reps image More...
virtual ImagePtr	getImage ()
	get the reps image More...
virtual bool	hasImage (ImagePtr image) const
	check if the reps has the image More...
virtual vtkVolumePtr	getVtkVolume ()
	get the images vtkVolume More...
void	setMaxVolumeSize (long maxVoxels)
	set max volume size for rendering. Must be set before setImage() More...
void	setUseGPUVolumeRayCastMapper ()
void	setUseVolumeTextureMapper ()
Public Member Functions inherited from cx::VolumetricBaseRep
virtual	~VolumetricBaseRep ()
Public Member Functions inherited from cx::RepImpl
	RepImpl (const QString &uid="", const QString &name="")
virtual	~RepImpl ()
virtual void	connectToView (ViewPtr theView)
virtual void	disconnectFromView (ViewPtr theView)
virtual bool	isConnectedToView (ViewPtr theView) const
void	setName (QString name)
QString	getName () const
QString	getUid () const
virtual void	printSelf (std::ostream &os, Indent indent)
Public Member Functions inherited from cx::Rep
virtual	~Rep ()

Static Public Member Functions
static VolumetricRepPtr	New (QString uid="")
Static Public Member Functions inherited from cx::RepImpl
template<class REP >
static boost::shared_ptr< REP >	wrap_new (REP *object, QString uid)

Protected Slots
void	transformChangedSlot ()
void	vtkImageDataChangedSlot ()
void	updateVtkImageDataSlot ()
Protected Slots inherited from cx::RepImpl
void	setModified ()

Protected Member Functions
	VolumetricRep ()
virtual void	addRepActorsToViewRenderer (ViewPtr view)
virtual void	removeRepActorsFromViewRenderer (ViewPtr view)
Protected Member Functions inherited from cx::VolumetricBaseRep
	VolumetricBaseRep ()
Protected Member Functions inherited from cx::RepImpl
ViewPtr	getView () const
vtkRendererPtr	getRenderer ()
RepPtr	getSelf ()
virtual void	onModifiedStartRender ()

Protected Attributes
cx::VolumePropertyPtr	mVolumeProperty
vtkVolumeMapperPtr	mMapper
vtkVolumePtr	mVolume
long	mMaxVoxels
	always resample volume below this size. More...
ImagePtr	mImage
cx::ImageMapperMonitorPtr	mMonitor
	helper object for visualizing clipping/cropping More...

Detailed Description

Display a volume in 3D.

Use this to render volumetric image data in a 3D scene. Both texture rendering and GPU raycasting are available.

Used by Sonowand. Used by CustusX.

Definition at line 90 of file cxVolumetricRep.h.

Constructor & Destructor Documentation

cx::VolumetricRep::~VolumetricRep ( )

virtual

Definition at line 80 of file cxVolumetricRep.cpp.

cx::VolumetricRep::VolumetricRep ( )

protected

Definition at line 70 of file cxVolumetricRep.cpp.

Member Function Documentation

void cx::VolumetricRep::addRepActorsToViewRenderer ( ViewPtr  view )

protectedvirtual

Implements cx::RepImpl.

Definition at line 108 of file cxVolumetricRep.cpp.

ImagePtr cx::VolumetricRep::getImage ( )

virtual

get the reps image

Implements cx::VolumetricBaseRep.

Definition at line 118 of file cxVolumetricRep.cpp.

virtual QString cx::VolumetricRep::getType ( ) const

inlinevirtual

Returns

a string identifying the Rep type. Each suclass implement this with its own class name. Subclasses from other namespaces (such as cx and snw) should add that namespace as a prefix.

Implements cx::RepImpl.

Reimplemented in cx::StreamRep3D.

Definition at line 97 of file cxVolumetricRep.h.

virtual vtkVolumePtr cx::VolumetricRep::getVtkVolume ( )

inlinevirtual

get the images vtkVolume

Implements cx::VolumetricBaseRep.

Definition at line 101 of file cxVolumetricRep.h.

bool cx::VolumetricRep::hasImage ( ImagePtr  image ) const

virtual

check if the reps has the image

Implements cx::VolumetricBaseRep.

Definition at line 151 of file cxVolumetricRep.cpp.

static VolumetricRepPtr cx::VolumetricRep::New ( QString  uid = "" )

inlinestatic

Definition at line 96 of file cxVolumetricRep.h.

void cx::VolumetricRep::removeRepActorsFromViewRenderer ( ViewPtr  view )

protectedvirtual

Implements cx::RepImpl.

Definition at line 113 of file cxVolumetricRep.cpp.

void cx::VolumetricRep::setImage ( ImagePtr  image )

virtual

set the reps image

Implements cx::VolumetricBaseRep.

Definition at line 123 of file cxVolumetricRep.cpp.

void cx::VolumetricRep::setMaxVolumeSize ( long  maxVoxels )

virtual

set max volume size for rendering. Must be set before setImage()

Implements cx::VolumetricBaseRep.

Definition at line 185 of file cxVolumetricRep.cpp.

void cx::VolumetricRep::setUseGPUVolumeRayCastMapper

(

)

Definition at line 83 of file cxVolumetricRep.cpp.

void cx::VolumetricRep::setUseVolumeTextureMapper

(

)

Definition at line 94 of file cxVolumetricRep.cpp.

void cx::VolumetricRep::transformChangedSlot ( )

protectedslot

called when transform is changed reset it in the prop.

Definition at line 167 of file cxVolumetricRep.cpp.

void cx::VolumetricRep::updateVtkImageDataSlot ( )

protectedslot

Definition at line 176 of file cxVolumetricRep.cpp.

void cx::VolumetricRep::vtkImageDataChangedSlot ( )

protectedslot

called when the image is changed internally. re-read the lut and vtkimagedata.

Definition at line 159 of file cxVolumetricRep.cpp.

Member Data Documentation

ImagePtr cx::VolumetricRep::mImage

protected

Definition at line 116 of file cxVolumetricRep.h.

vtkVolumeMapperPtr cx::VolumetricRep::mMapper

protected

Definition at line 112 of file cxVolumetricRep.h.

long cx::VolumetricRep::mMaxVoxels

protected

always resample volume below this size.

Definition at line 114 of file cxVolumetricRep.h.

cx::ImageMapperMonitorPtr cx::VolumetricRep::mMonitor

protected

helper object for visualizing clipping/cropping

Definition at line 117 of file cxVolumetricRep.h.

vtkVolumePtr cx::VolumetricRep::mVolume

protected

Definition at line 113 of file cxVolumetricRep.h.

cx::VolumePropertyPtr cx::VolumetricRep::mVolumeProperty

protected

Definition at line 111 of file cxVolumetricRep.h.

---

The documentation for this class was generated from the following files:

• /media/dev/bamboodrive/b/xml-data/build-dir/CX-RE-JOB1/CX/CX/source/resource/view/Rep3D/cxVolumetricRep.h
• /media/dev/bamboodrive/b/xml-data/build-dir/CX-RE-JOB1/CX/CX/source/resource/view/Rep3D/cxVolumetricRep.cpp
