#include <cxViewRepCollection.h>

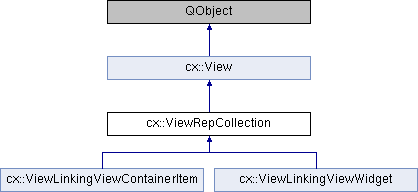

Inheritance diagram for cx::ViewRepCollection:

Public Types
typedef std::vector< RepPtr > ::iterator	RepsIter
	Iterator typedef for the internal rep vector. More...

Public Types inherited from cx::View
enum	Type { VIEW, VIEW_2D, VIEW_3D, VIEW_REAL_TIME }

Public Member Functions
	ViewRepCollection (vtkRenderWindowPtr renderWindow, const QString &uid, const QString &name="")
	constructor More...

virtual	~ViewRepCollection ()

void	print (std::ostream &os)

virtual void	printSelf (std::ostream &os, Indent indent)

virtual void	clear ()
	Removes everything in the view, inluding reps. More...

virtual vtkRenderWindowPtr	getRenderWindow () const
	Get the vtkRenderWindow used by this View. More...

virtual View::Type	getType () const

virtual void	setType (View::Type type)

virtual QString	getTypeString () const

virtual QString	getUid ()
	Get a views unique id. More...

virtual QString	getName ()
	Get a views name. More...

virtual vtkRendererPtr	getRenderer () const
	Get the renderer used by this View. More...

virtual void	addRep (const RepPtr &rep)
	Adds and connects a rep to the view. More...

virtual void	removeRep (const RepPtr &rep)
	Removes and disconnects the rep from the view. More...

virtual bool	hasRep (const RepPtr &rep) const
	Checks if the view already have the rep. More...

virtual std::vector< RepPtr >	getReps ()
	Returns all reps in the view. More...

virtual void	removeReps ()
	Removes all reps in the view. More...

virtual void	setBackgroundColor (QColor color)

virtual void	setModified ()

int	computeTotalMTime ()

Public Member Functions inherited from cx::View
virtual	~View ()

virtual QSize	size () const =0

virtual void	setZoomFactor (double factor)=0

virtual double	getZoomFactor () const =0

virtual Transform3D	get_vpMs () const =0

virtual DoubleBoundingBox3D	getViewport () const =0

virtual DoubleBoundingBox3D	getViewport_s () const =0

Public Attributes
QColor	mBackgroundColor

QString	mUid
	The view's unique id. More...

QString	mName
	The view's name. More...

vtkRenderWindowPtr	mRenderWindow

vtkRendererPtr	mRenderer

std::vector< RepPtr >	mReps
	Storage for internal reps. More...

View::Type	mType

boost::weak_ptr< class View >	mSelf

Additional Inherited Members
Signals inherited from cx::View
void	resized (QSize size)

void	mouseMove (int x, int y, Qt::MouseButtons buttons)

void	mousePress (int x, int y, Qt::MouseButtons buttons)

void	mouseRelease (int x, int y, Qt::MouseButtons buttons)

void	mouseWheel (int x, int y, int delta, int orientation, Qt::MouseButtons buttons)

void	shown ()

void	focusChange (bool gotFocus, Qt::FocusReason reason)

void	customContextMenuRequested (const QPoint &)

Detailed Description

Date: 2014-09-26

Author: Christian Askeland

Definition at line 51 of file cxViewRepCollection.h.

Member Typedef Documentation

typedef std::vector<RepPtr>::iterator cx::ViewRepCollection::RepsIter

Iterator typedef for the internal rep vector.

Definition at line 94 of file cxViewRepCollection.h.

Constructor & Destructor Documentation

cx::ViewRepCollection::ViewRepCollection	(	vtkRenderWindowPtr	renderWindow,
		const QString &	uid,
		const QString &	name = `""`
	)

constructor

Definition at line 47 of file cxViewRepCollection.cpp.

cx::ViewRepCollection::~ViewRepCollection ( )

virtual

Definition at line 63 of file cxViewRepCollection.cpp.

Member Function Documentation

void cx::ViewRepCollection::addRep ( const RepPtr & rep )

virtual

Adds and connects a rep to the view.

Implements cx::View.

Definition at line 102 of file cxViewRepCollection.cpp.

void cx::ViewRepCollection::clear ( )

virtual

Removes everything in the view, inluding reps.

clear all content of the view. This ensures that props added from outside the rep system also is cleared, and data not cleared with RemoveAllViewProps() (added to fix problem in snw ultrasound rep, data was not cleared, dont know why).

Definition at line 127 of file cxViewRepCollection.cpp.

int cx::ViewRepCollection::computeTotalMTime ( )

Definition at line 219 of file cxViewRepCollection.cpp.

QString cx::ViewRepCollection::getName ( )

virtual

Get a views name.

Implements cx::View.

Definition at line 92 of file cxViewRepCollection.cpp.

vtkRendererPtr cx::ViewRepCollection::getRenderer ( ) const

virtual

Get the renderer used by this View.

Implements cx::View.

Definition at line 97 of file cxViewRepCollection.cpp.

virtual vtkRenderWindowPtr cx::ViewRepCollection::getRenderWindow ( ) const

inlinevirtual

Get the vtkRenderWindow used by this View.

Implements cx::View.

Definition at line 64 of file cxViewRepCollection.h.

std::vector< RepPtr > cx::ViewRepCollection::getReps ( )

virtual

Returns all reps in the view.

Implements cx::View.

Definition at line 161 of file cxViewRepCollection.cpp.

virtual View::Type cx::ViewRepCollection::getType ( ) const

inlinevirtual

Implements cx::View.

Definition at line 66 of file cxViewRepCollection.h.

QString cx::ViewRepCollection::getTypeString ( ) const

virtual

Implements cx::View.

Definition at line 71 of file cxViewRepCollection.cpp.

QString cx::ViewRepCollection::getUid ( )

virtual

Get a views unique id.

Implements cx::View.

Definition at line 87 of file cxViewRepCollection.cpp.

bool cx::ViewRepCollection::hasRep ( const RepPtr & rep ) const

virtual

Checks if the view already have the rep.

Implements cx::View.

Definition at line 166 of file cxViewRepCollection.cpp.

void cx::ViewRepCollection::print ( std::ostream & os )

Definition at line 171 of file cxViewRepCollection.cpp.

void cx::ViewRepCollection::printSelf	(	std::ostream &	os,
		Indent	indent
	)

virtual

Definition at line 177 of file cxViewRepCollection.cpp.

void cx::ViewRepCollection::removeRep ( const RepPtr & rep )

virtual

Removes and disconnects the rep from the view.

Implements cx::View.

Definition at line 148 of file cxViewRepCollection.cpp.

void cx::ViewRepCollection::removeReps ( )

virtual

Removes all reps in the view.

Implements cx::View.

Definition at line 139 of file cxViewRepCollection.cpp.

void cx::ViewRepCollection::setBackgroundColor ( QColor color )

virtual

Implements cx::View.

Definition at line 113 of file cxViewRepCollection.cpp.

void cx::ViewRepCollection::setModified ( )

virtual

Implements cx::View.

Definition at line 213 of file cxViewRepCollection.cpp.

virtual void cx::ViewRepCollection::setType ( View::Type type )

inlinevirtual

Definition at line 70 of file cxViewRepCollection.h.

Member Data Documentation

QColor cx::ViewRepCollection::mBackgroundColor

Definition at line 88 of file cxViewRepCollection.h.

QString cx::ViewRepCollection::mName

The view's name.

Definition at line 90 of file cxViewRepCollection.h.

vtkRendererPtr cx::ViewRepCollection::mRenderer

Definition at line 92 of file cxViewRepCollection.h.

vtkRenderWindowPtr cx::ViewRepCollection::mRenderWindow

Definition at line 91 of file cxViewRepCollection.h.

std::vector<RepPtr> cx::ViewRepCollection::mReps

Storage for internal reps.

Definition at line 93 of file cxViewRepCollection.h.

boost::weak_ptr<class View> cx::ViewRepCollection::mSelf

Definition at line 96 of file cxViewRepCollection.h.

View::Type cx::ViewRepCollection::mType

Definition at line 95 of file cxViewRepCollection.h.

QString cx::ViewRepCollection::mUid

The view's unique id.

Definition at line 89 of file cxViewRepCollection.h.

The documentation for this class was generated from the following files:

/media/dev/bamboodrive/b/xml-data/build-dir/CX-RE-JOB1/CX/CX/source/resource/view/View/internal/cxViewRepCollection.h
/media/dev/bamboodrive/b/xml-data/build-dir/CX-RE-JOB1/CX/CX/source/resource/view/View/internal/cxViewRepCollection.cpp
