cx::RegistrationService Class Reference

Registration services. More...

#include <cxRegistrationService.h>

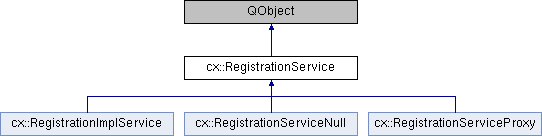

Inheritance diagram for cx::RegistrationService:

Signals
void	fixedDataChanged (QString uid)
void	movingDataChanged (QString uid)

Public Member Functions
virtual	~RegistrationService ()
virtual void	setMovingData (DataPtr data)=0
virtual void	setFixedData (DataPtr data)=0
virtual DataPtr	getMovingData ()=0
virtual DataPtr	getFixedData ()=0
virtual void	doPatientRegistration ()=0
	registrates the fixed image to the patient More...
virtual void	doFastRegistration_Translation ()=0
	use the landmarks in master image and patient to perform a translation-only landmark registration More...
virtual void	doFastRegistration_Orientation (const Transform3D &tMtm, const Transform3D &prMt)=0
virtual void	doImageRegistration (bool translationOnly)=0
virtual void	applyImage2ImageRegistration (Transform3D delta_pre_rMd, QString description)=0
virtual void	applyContinuousImage2ImageRegistration (Transform3D delta_pre_rMd, QString description)=0
virtual void	applyPatientRegistration (Transform3D rMpr_new, QString description)=0
virtual void	applyContinuousPatientRegistration (Transform3D rMpr_new, QString description)=0
virtual void	applyPatientOrientation (const Transform3D &tMtm, const Transform3D &prMt)=0
virtual QDateTime	getLastRegistrationTime ()=0
virtual void	setLastRegistrationTime (QDateTime time)=0
virtual bool	isNull ()=0
QString	getFixedDataUid ()
QString	getMovingDataUid ()

Static Public Member Functions
static RegistrationServicePtr	getNullObject ()

Detailed Description

Registration services.

This service replaces the old RegistrationManager class.

Date

2014-08-26

Author

Ole Vegard Solberg, SINTEF

Geir Arne Tangen, SINTEF

Definition at line 66 of file cxRegistrationService.h.

Constructor & Destructor Documentation

virtual cx::RegistrationService::~RegistrationService ( )

inlinevirtual

Definition at line 70 of file cxRegistrationService.h.

Member Function Documentation

virtual void cx::RegistrationService::applyContinuousImage2ImageRegistration ( Transform3D  delta_pre_rMd, QString  description  )

pure virtual

Implemented in cx::RegistrationImplService, cx::RegistrationServiceProxy, and cx::RegistrationServiceNull.

virtual void cx::RegistrationService::applyContinuousPatientRegistration ( Transform3D  rMpr_new, QString  description  )

pure virtual

Implemented in cx::RegistrationImplService, cx::RegistrationServiceProxy, and cx::RegistrationServiceNull.

virtual void cx::RegistrationService::applyImage2ImageRegistration ( Transform3D  delta_pre_rMd, QString  description  )

pure virtual

Implemented in cx::RegistrationImplService, cx::RegistrationServiceProxy, and cx::RegistrationServiceNull.

virtual void cx::RegistrationService::applyPatientOrientation ( const Transform3D &  tMtm, const Transform3D &  prMt  )

pure virtual

Implemented in cx::RegistrationImplService, cx::RegistrationServiceProxy, and cx::RegistrationServiceNull.

virtual void cx::RegistrationService::applyPatientRegistration ( Transform3D  rMpr_new, QString  description  )

pure virtual

Implemented in cx::RegistrationImplService, cx::RegistrationServiceProxy, and cx::RegistrationServiceNull.

virtual void cx::RegistrationService::doFastRegistration_Orientation ( const Transform3D &  tMtm, const Transform3D &  prMt  )

pure virtual

Implemented in cx::RegistrationImplService, cx::RegistrationServiceProxy, and cx::RegistrationServiceNull.

virtual void cx::RegistrationService::doFastRegistration_Translation ( )

pure virtual

use the landmarks in master image and patient to perform a translation-only landmark registration

Implemented in cx::RegistrationImplService, cx::RegistrationServiceProxy, and cx::RegistrationServiceNull.

virtual void cx::RegistrationService::doImageRegistration ( bool  translationOnly )

pure virtual

Implemented in cx::RegistrationImplService, cx::RegistrationServiceProxy, and cx::RegistrationServiceNull.

virtual void cx::RegistrationService::doPatientRegistration ( )

pure virtual

registrates the fixed image to the patient

Implemented in cx::RegistrationImplService, cx::RegistrationServiceProxy, and cx::RegistrationServiceNull.

void cx::RegistrationService::fixedDataChanged ( QString  uid )

signal

virtual DataPtr cx::RegistrationService::getFixedData ( )

pure virtual

Implemented in cx::RegistrationImplService, cx::RegistrationServiceProxy, and cx::RegistrationServiceNull.

QString cx::RegistrationService::getFixedDataUid

(

)

Definition at line 49 of file cxRegistrationService.cpp.

virtual QDateTime cx::RegistrationService::getLastRegistrationTime ( )

pure virtual

Implemented in cx::RegistrationImplService, cx::RegistrationServiceProxy, and cx::RegistrationServiceNull.

virtual DataPtr cx::RegistrationService::getMovingData ( )

pure virtual

Implemented in cx::RegistrationImplService, cx::RegistrationServiceProxy, and cx::RegistrationServiceNull.

QString cx::RegistrationService::getMovingDataUid

(

)

Definition at line 57 of file cxRegistrationService.cpp.

RegistrationServicePtr cx::RegistrationService::getNullObject ( )

static

Definition at line 41 of file cxRegistrationService.cpp.

virtual bool cx::RegistrationService::isNull ( )

pure virtual

Implemented in cx::RegistrationImplService, cx::RegistrationServiceProxy, and cx::RegistrationServiceNull.

void cx::RegistrationService::movingDataChanged ( QString  uid )

signal

virtual void cx::RegistrationService::setFixedData ( DataPtr  data )

pure virtual

Implemented in cx::RegistrationImplService, cx::RegistrationServiceProxy, and cx::RegistrationServiceNull.

virtual void cx::RegistrationService::setLastRegistrationTime ( QDateTime  time )

pure virtual

Implemented in cx::RegistrationImplService, cx::RegistrationServiceProxy, and cx::RegistrationServiceNull.

virtual void cx::RegistrationService::setMovingData ( DataPtr  data )

pure virtual

Implemented in cx::RegistrationImplService, cx::RegistrationServiceProxy, and cx::RegistrationServiceNull.

---

The documentation for this class was generated from the following files:

• /media/dev/bamboodrive/b/xml-data/build-dir/CX-RE-JOB1/CX/CX/source/plugins/org.custusx.registration/cxRegistrationService.h
• /media/dev/bamboodrive/b/xml-data/build-dir/CX-RE-JOB1/CX/CX/source/plugins/org.custusx.registration/cxRegistrationService.cpp
