cx::StateService Class Reference

Workflow states for CustusX. More...

#include <cxStateService.h>

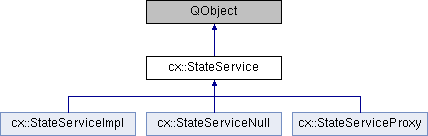

Inheritance diagram for cx::StateService:

Signals
void	workflowStateChanged ()
void	workflowStateAboutToChange ()
void	applicationStateChanged ()

Public Member Functions
virtual	~StateService ()
virtual QString	getVersionName ()=0
virtual QString	getApplicationStateName () const =0
virtual QStringList	getAllApplicationStateNames () const =0
virtual QActionGroup *	getWorkflowActions ()=0
virtual void	setWorkFlowState (QString uid)=0
virtual Desktop	getActiveDesktop ()=0
virtual void	saveDesktop (Desktop desktop)=0
virtual void	resetDesktop ()=0
virtual bool	isNull ()=0

Static Public Member Functions
static StateServicePtr	getNullObject ()

Detailed Description

Workflow states for CustusX.

Maintains global state. The responsibility of this service has been reduced, it now controls the workflow steps.

• Settings also contains some global state.
• cx::Profile contains more state.

Workflow

The use of CustusX during a surgical procedure can be broken down into a series of steps:

• Preoperative data acquisition
• Planning
• Registration
• Navigation + Intraoperative data acquisition.
• Postoperative analysis

This is the main workflow. Each step is named a Workflow State, and are states in StateManager. They can be customized in the State Manager, and they have a unique GUI setup.

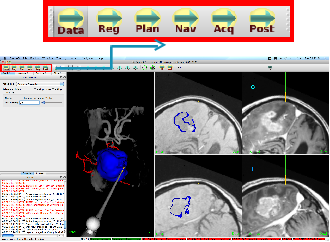

Workflow steps. The buttons are enlarged.

See Also

WorkflowStateMachine

During each step, There are operations that usually are performed in sequence. Examples:

• Acquire data -> reconstruct.
• Import/acquire data -> show in view.

These automations can be set in Preferences->Automation.

Date

4. aug. 2010

Author

Janne Beate Bakeng, SINTEF

Definition at line 122 of file cxStateService.h.

Constructor & Destructor Documentation

virtual cx::StateService::~StateService ( )

inlinevirtual

Definition at line 127 of file cxStateService.h.

Member Function Documentation

void cx::StateService::applicationStateChanged ( )

signal

virtual Desktop cx::StateService::getActiveDesktop ( )

pure virtual

Implemented in cx::StateServiceImpl, cx::StateServiceProxy, and cx::StateServiceNull.

virtual QStringList cx::StateService::getAllApplicationStateNames ( ) const

pure virtual

Implemented in cx::StateServiceImpl, cx::StateServiceProxy, and cx::StateServiceNull.

virtual QString cx::StateService::getApplicationStateName ( ) const

pure virtual

Implemented in cx::StateServiceImpl, cx::StateServiceProxy, and cx::StateServiceNull.

StateServicePtr cx::StateService::getNullObject ( )

static

Definition at line 60 of file cxStateService.cpp.

virtual QString cx::StateService::getVersionName ( )

pure virtual

Implemented in cx::StateServiceImpl, cx::StateServiceProxy, and cx::StateServiceNull.

virtual QActionGroup* cx::StateService::getWorkflowActions ( )

pure virtual

Implemented in cx::StateServiceImpl, cx::StateServiceProxy, and cx::StateServiceNull.

virtual bool cx::StateService::isNull ( )

pure virtual

Implemented in cx::StateServiceImpl, cx::StateServiceProxy, and cx::StateServiceNull.

virtual void cx::StateService::resetDesktop ( )

pure virtual

Implemented in cx::StateServiceImpl, cx::StateServiceProxy, and cx::StateServiceNull.

virtual void cx::StateService::saveDesktop ( Desktop  desktop )

pure virtual

Implemented in cx::StateServiceImpl, cx::StateServiceProxy, and cx::StateServiceNull.

virtual void cx::StateService::setWorkFlowState ( QString  uid )

pure virtual

Implemented in cx::StateServiceImpl, cx::StateServiceProxy, and cx::StateServiceNull.

void cx::StateService::workflowStateAboutToChange ( )

signal

void cx::StateService::workflowStateChanged ( )

signal

---

The documentation for this class was generated from the following files:

• /media/jenkins/slave_fs/ws/osr/TGT/ubuntu.12.04.x64/CX/CX/source/resource/core/settings/cxStateService.h
• /media/jenkins/slave_fs/ws/osr/TGT/ubuntu.12.04.x64/CX/CX/source/resource/core/settings/cxStateService.cpp
