Base class for preset handling. Takes care of making a uniform preset system. Contains a preset selector, functionality for resetting to a default preset, saving new presets and deleting presets. More...

#include <cxPresetWidget.h>

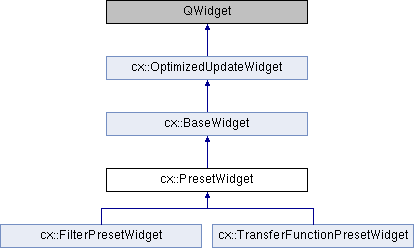

Inheritance diagram for cx::PresetWidget:

Public Slots
virtual void	resetSlot ()

virtual void	saveSlot ()

virtual void	deleteSlot ()

virtual void	populatePresetListSlot ()
	Fill the preset list with the available presets. More...

Public Slots inherited from cx::BaseWidget
void	adjustSizeSlot ()

Public Slots inherited from cx::OptimizedUpdateWidget
virtual void	setModified ()

Signals
void	presetSelected (QString name)

Public Member Functions
	PresetWidget (QWidget *parent)

virtual	~PresetWidget ()

bool	requestSetCurrentPreset (QString name)
	tries to set the preset to the requested name More...

QString	getCurrentPreset ()
	returns the name of the currently selected preset More...

void	showDetailed (bool detailed)
	sets the presetwidget in detailed mode or not More...

virtual void	setPresets (PresetsPtr presets)

Public Member Functions inherited from cx::BaseWidget
	BaseWidget (QWidget *parent, QString objectName, QString windowTitle)

virtual	~BaseWidget ()

QWidget *	createMethodWidget (QWidget inputWidget, QWidget outputWidget, QString methodname, bool inputChecked=false, bool outputVisible=true)
	Create a specialized widget for filters, with input/ouput, enable and options. More...

QGroupBox *	createGroupbox (QWidget *widget, QString boxname)
	Create a group box with a given name. More...

QGroupBox *	wrapInGroupBox (QWidget *base, QString name)

CXFrame *	wrapInFrame (QWidget *base)

template<class T >
QAction *	createAction (QObject parent, QIcon iconName, QString text, QString tip, T slot, QLayout layout=NULL, QToolButton *button=new QToolButton())

Public Member Functions inherited from cx::OptimizedUpdateWidget
	OptimizedUpdateWidget (QWidget *parent=NULL)

virtual	~OptimizedUpdateWidget ()

void	forcePrePaint ()

Protected Slots
virtual void	presetsBoxChangedSlot (const QString &)

Protected Member Functions
virtual void	populateButtonLayout ()
	makes buttons based on the actions found in the actiongroup More...

void	populatePresetList (QStringList list)
	populates the preset combobox More...

QString	getNewPresetName (bool withoutSpaces)

Protected Member Functions inherited from cx::BaseWidget
virtual void	showEvent (QShowEvent *event)

Protected Member Functions inherited from cx::OptimizedUpdateWidget
virtual void	prePaintEvent ()

virtual void	paintEvent (QPaintEvent *event)

Protected Attributes
QActionGroup *	mActionGroup
	contains all actions that will have buttons More...

PresetsPtr	mPresets

Additional Inherited Members
Static Public Member Functions inherited from cx::BaseWidget
static QFrame *	createHorizontalLine ()
	Creates a horizontal line which can be inserted into widgets. More...

Detailed Description

Base class for preset handling. Takes care of making a uniform preset system. Contains a preset selector, functionality for resetting to a default preset, saving new presets and deleting presets.

Date: Mar 8, 2013

Author: Janne Beate Bakeng, SINTEF

Definition at line 55 of file cxPresetWidget.h.

Constructor & Destructor Documentation

cx::PresetWidget::PresetWidget ( QWidget * parent )

Definition at line 41 of file cxPresetWidget.cpp.

virtual cx::PresetWidget::~PresetWidget ( )

inlinevirtual

Definition at line 61 of file cxPresetWidget.h.

Member Function Documentation

void cx::PresetWidget::deleteSlot ( )

virtualslot

Definition at line 132 of file cxPresetWidget.cpp.

QString cx::PresetWidget::getCurrentPreset ( )

returns the name of the currently selected preset

Definition at line 84 of file cxPresetWidget.cpp.

QString cx::PresetWidget::getNewPresetName ( bool withoutSpaces = false )

protected

Definition at line 191 of file cxPresetWidget.cpp.

void cx::PresetWidget::populateButtonLayout ( )

protectedvirtual

makes buttons based on the actions found in the actiongroup

Definition at line 148 of file cxPresetWidget.cpp.

void cx::PresetWidget::populatePresetList ( QStringList list )

protected

populates the preset combobox

Definition at line 179 of file cxPresetWidget.cpp.

void cx::PresetWidget::populatePresetListSlot ( )

virtualslot

Fill the preset list with the available presets.

Definition at line 138 of file cxPresetWidget.cpp.

void cx::PresetWidget::presetsBoxChangedSlot ( const QString & name )

protectedvirtualslot

Definition at line 143 of file cxPresetWidget.cpp.

void cx::PresetWidget::presetSelected ( QString name )

signal

bool cx::PresetWidget::requestSetCurrentPreset ( QString name )

tries to set the preset to the requested name

Definition at line 75 of file cxPresetWidget.cpp.

void cx::PresetWidget::resetSlot ( )

virtualslot

Definition at line 121 of file cxPresetWidget.cpp.

void cx::PresetWidget::saveSlot ( )

virtualslot

Definition at line 126 of file cxPresetWidget.cpp.

void cx::PresetWidget::setPresets ( PresetsPtr presets )

virtual

Definition at line 106 of file cxPresetWidget.cpp.

void cx::PresetWidget::showDetailed ( bool detailed )

sets the presetwidget in detailed mode or not

Definition at line 89 of file cxPresetWidget.cpp.

Member Data Documentation

QActionGroup* cx::PresetWidget::mActionGroup

protected

contains all actions that will have buttons

Definition at line 86 of file cxPresetWidget.h.

PresetsPtr cx::PresetWidget::mPresets

protected

Definition at line 87 of file cxPresetWidget.h.

The documentation for this class was generated from the following files:

/media/jenkins/slave_fs/ws/osr/TGT/ubuntu.12.04.x64/CX/CX/source/resource/widgets/cxPresetWidget.h
/media/jenkins/slave_fs/ws/osr/TGT/ubuntu.12.04.x64/CX/CX/source/resource/widgets/cxPresetWidget.cpp
