CustusX  15.3.3-beta
An IGT application
 All Classes Namespaces Files Functions Variables Typedefs Enumerations Enumerator Friends Macros Groups Pages
Signals | Public Member Functions | Static Public Member Functions | List of all members
cx::PatientModelService Class Referenceabstract
PatientModel

The virtual patient. More...

#include <cxPatientModelService.h>

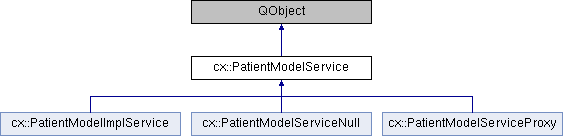

Inheritance diagram for cx::PatientModelService:
cx::PatientModelImplService cx::PatientModelServiceNull cx::PatientModelServiceProxy

Signals

void centerChanged ()
 emitted when center is changed. More...

void dataAddedOrRemoved ()

void activeImageChanged (const QString &uId)

void landmarkPropertiesChanged ()
 emitted when global info about a landmark changed More...

void clinicalApplicationChanged ()

void rMprChanged ()

void streamLoaded ()

void patientChanged ()


Public Member Functions

virtual ~PatientModelService ()

virtual void insertData (DataPtr data)=0

virtual std::map< QString,
DataPtr > 		getData () const =0

virtual DataPtr createData (QString type, QString uid, QString name="")=0

virtual void removeData (QString uid)=0

template<class DATA >
std::map< QString,
boost::shared_ptr< DATA > > 		getDataOfType () const

DataPtr getData (const QString &uid) const

template<class DATA >
boost::shared_ptr< DATA > getData (const QString &uid) const

template<class DATA >
boost::shared_ptr< DATA > createSpecificData (QString uid, QString name="")

QString getActiveImageUid ()

virtual std::map< QString,
VideoSourcePtr > 		getStreams () const =0

VideoSourcePtr getStream (const QString &uid) const
 Convenience function getting a specified stream. More...

virtual Transform3D get_rMpr () const

virtual RegistrationHistoryPtr get_rMpr_History () const =0

virtual ImagePtr getActiveImage () const =0
 used for system state More...

virtual void setActiveImage (ImagePtr activeImage)=0
 used for system state More...

virtual LandmarksPtr getPatientLandmarks () const =0
 landmark defined in patient space More...

virtual std::map< QString,
LandmarkProperty > 		getLandmarkProperties () const =0

virtual void setLandmarkName (QString uid, QString name)=0

virtual void setLandmarkActive (QString uid, bool active)=0

virtual QString addLandmark ()=0

virtual void updateRegistration_rMpr (const QDateTime &oldTime, const RegistrationTransform &newTransform)

virtual QString getActivePatientFolder () const =0

QString generateFilePath (QString folderName, QString ending)

virtual bool isPatientValid () const =0

virtual DataPtr importData (QString fileName, QString &infoText)=0

virtual void exportPatient (bool niftiFormat)=0

virtual
PresetTransferFunctions3DPtr 		getPresetTransferFunctions3D () const =0

virtual void setCenter (const Vector3D &center)=0

virtual Vector3D getCenter () const =0
 current common center point for user viewing. More...

virtual CLINICAL_VIEW getClinicalApplication () const =0

virtual void setClinicalApplication (CLINICAL_VIEW application)=0

virtual void autoSave ()=0

virtual bool isNull ()=0


Static Public Member Functions

static PatientModelServicePtr getNullObject ()


Detailed Description

The virtual patient.

PatientModelService provides access to the Patient Specific Model (PaSM).

  • data entities
    • volumes
    • surfaces
    • metrics
    • etc
  • relations between entities in space, time and structure
  • load/save
Date
2014-05-15
Author
Christian Askeland, SINTEF
Ole Vegard Solberg, SINTEF

Definition at line 83 of file cxPatientModelService.h.

Constructor & Destructor Documentation

virtual cx::PatientModelService::~PatientModelService ( )
inlinevirtual

Definition at line 87 of file cxPatientModelService.h.

Member Function Documentation

void cx::PatientModelService::activeImageChanged ( const QString &  uId)
signal
virtual QString cx::PatientModelService::addLandmark ( )
pure virtual

Implemented in cx::PatientModelImplService, cx::PatientModelServiceProxy, and cx::PatientModelServiceNull.

virtual void cx::PatientModelService::autoSave ( )
pure virtual

Implemented in cx::PatientModelImplService, cx::PatientModelServiceProxy, and cx::PatientModelServiceNull.

void cx::PatientModelService::centerChanged ( )
signal

emitted when center is changed.

void cx::PatientModelService::clinicalApplicationChanged ( )
signal
virtual DataPtr cx::PatientModelService::createData ( QString  type,
QString  uid,
QString  name = ""
)
pure virtual

Create Data object of given type.

uid must be unique, or contain the string %1 that will be replaced with a running index that makes the uid unique. The same applies to name. An empty name will set name = uid.

Implemented in cx::PatientModelServiceProxy, cx::PatientModelImplService, and cx::PatientModelServiceNull.

template<class DATA >
boost::shared_ptr<DATA> cx::PatientModelService::createSpecificData ( QString  uid,
QString  name = ""
)
inline

Definition at line 122 of file cxPatientModelService.h.

void cx::PatientModelService::dataAddedOrRemoved ( )
signal
virtual void cx::PatientModelService::exportPatient ( bool  niftiFormat)
pure virtual

Implemented in cx::PatientModelImplService, cx::PatientModelServiceProxy, and cx::PatientModelServiceNull.

QString cx::PatientModelService::generateFilePath ( QString  folderName,
QString  ending
)

Definition at line 91 of file cxPatientModelService.cpp.

Transform3D cx::PatientModelService::get_rMpr ( ) const
virtual

Reimplemented in cx::PatientModelImplService.

Definition at line 72 of file cxPatientModelService.cpp.

virtual RegistrationHistoryPtr cx::PatientModelService::get_rMpr_History ( ) const
pure virtual

Implemented in cx::PatientModelImplService, cx::PatientModelServiceProxy, and cx::PatientModelServiceNull.

virtual ImagePtr cx::PatientModelService::getActiveImage ( ) const
pure virtual

used for system state

Implemented in cx::PatientModelImplService, cx::PatientModelServiceProxy, and cx::PatientModelServiceNull.

QString cx::PatientModelService::getActiveImageUid ( )

Definition at line 63 of file cxPatientModelService.cpp.

virtual QString cx::PatientModelService::getActivePatientFolder ( ) const
pure virtual

Implemented in cx::PatientModelImplService, cx::PatientModelServiceProxy, and cx::PatientModelServiceNull.

virtual Vector3D cx::PatientModelService::getCenter ( ) const
pure virtual

current common center point for user viewing.

Implemented in cx::PatientModelImplService, cx::PatientModelServiceProxy, and cx::PatientModelServiceNull.

virtual CLINICAL_VIEW cx::PatientModelService::getClinicalApplication ( ) const
pure virtual

Implemented in cx::PatientModelImplService, cx::PatientModelServiceProxy, and cx::PatientModelServiceNull.

virtual std::map<QString, DataPtr> cx::PatientModelService::getData ( ) const
pure virtual

Implemented in cx::PatientModelServiceProxy, cx::PatientModelImplService, and cx::PatientModelServiceNull.

DataPtr cx::PatientModelService::getData ( const QString &  uid) const

Definition at line 51 of file cxPatientModelService.cpp.

template<class DATA >
boost::shared_ptr<DATA> cx::PatientModelService::getData ( const QString &  uid) const
inline

Definition at line 117 of file cxPatientModelService.h.

template<class DATA >
std::map<QString, boost::shared_ptr<DATA> > cx::PatientModelService::getDataOfType ( ) const
inline

Definition at line 103 of file cxPatientModelService.h.

virtual std::map<QString, LandmarkProperty> cx::PatientModelService::getLandmarkProperties ( ) const
pure virtual

Get all defined landmarks. These landmarks are additionally defined in specific coordinate spaces, such as patient and for each Data.

Implemented in cx::PatientModelServiceProxy, cx::PatientModelImplService, and cx::PatientModelServiceNull.

PatientModelServicePtr cx::PatientModelService::getNullObject ( )
static

Definition at line 43 of file cxPatientModelService.cpp.

virtual LandmarksPtr cx::PatientModelService::getPatientLandmarks ( ) const
pure virtual

landmark defined in patient space

Implemented in cx::PatientModelServiceProxy, cx::PatientModelImplService, and cx::PatientModelServiceNull.

virtual PresetTransferFunctions3DPtr cx::PatientModelService::getPresetTransferFunctions3D ( ) const
pure virtual

Implemented in cx::PatientModelImplService, cx::PatientModelServiceProxy, and cx::PatientModelServiceNull.

VideoSourcePtr cx::PatientModelService::getStream ( const QString &  uid) const

Convenience function getting a specified stream.

Definition at line 83 of file cxPatientModelService.cpp.

virtual std::map<QString, VideoSourcePtr> cx::PatientModelService::getStreams ( ) const
pure virtual

Implemented in cx::PatientModelImplService, cx::PatientModelServiceProxy, and cx::PatientModelServiceNull.

virtual DataPtr cx::PatientModelService::importData ( QString  fileName,
QString &  infoText
)
pure virtual

Implemented in cx::PatientModelImplService, cx::PatientModelServiceProxy, and cx::PatientModelServiceNull.

virtual void cx::PatientModelService::insertData ( DataPtr  data)
pure virtual

Implemented in cx::PatientModelServiceProxy, cx::PatientModelImplService, and cx::PatientModelServiceNull.

virtual bool cx::PatientModelService::isNull ( )
pure virtual

Implemented in cx::PatientModelImplService, cx::PatientModelServiceProxy, and cx::PatientModelServiceNull.

virtual bool cx::PatientModelService::isPatientValid ( ) const
pure virtual

Implemented in cx::PatientModelImplService, cx::PatientModelServiceProxy, and cx::PatientModelServiceNull.

void cx::PatientModelService::landmarkPropertiesChanged ( )
signal

emitted when global info about a landmark changed

void cx::PatientModelService::patientChanged ( )
signal
virtual void cx::PatientModelService::removeData ( QString  uid)
pure virtual

Implemented in cx::PatientModelImplService, cx::PatientModelServiceProxy, and cx::PatientModelServiceNull.

void cx::PatientModelService::rMprChanged ( )
signal
virtual void cx::PatientModelService::setActiveImage ( ImagePtr  activeImage)
pure virtual

used for system state

Implemented in cx::PatientModelImplService, cx::PatientModelServiceProxy, and cx::PatientModelServiceNull.

virtual void cx::PatientModelService::setCenter ( const Vector3D &  center)
pure virtual

Implemented in cx::PatientModelImplService, cx::PatientModelServiceProxy, and cx::PatientModelServiceNull.

virtual void cx::PatientModelService::setClinicalApplication ( CLINICAL_VIEW  application)
pure virtual

Implemented in cx::PatientModelImplService, cx::PatientModelServiceProxy, and cx::PatientModelServiceNull.

virtual void cx::PatientModelService::setLandmarkActive ( QString  uid,
bool  active
)
pure virtual

Implemented in cx::PatientModelServiceProxy, cx::PatientModelImplService, and cx::PatientModelServiceNull.

virtual void cx::PatientModelService::setLandmarkName ( QString  uid,
QString  name
)
pure virtual

Implemented in cx::PatientModelServiceProxy, cx::PatientModelImplService, and cx::PatientModelServiceNull.

void cx::PatientModelService::streamLoaded ( )
signal
void cx::PatientModelService::updateRegistration_rMpr ( const QDateTime &  oldTime,
const RegistrationTransform &  newTransform
)
virtual

Definition at line 77 of file cxPatientModelService.cpp.

The documentation for this class was generated from the following files:
