#include <cxFilter.h>

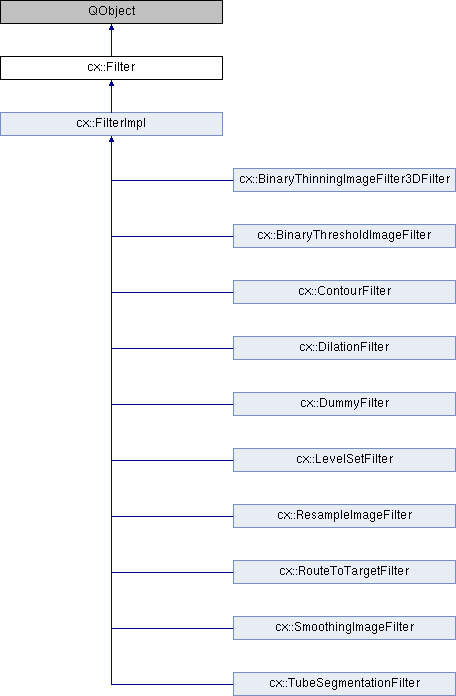

Inheritance diagram for cx::Filter:

Public Slots
virtual void	requestSetPresetSlot (QString name)=0

Signals
void	changed ()

Public Member Functions
	Filter ()

virtual	~Filter ()

virtual QString	getUid () const =0

virtual void	initialize (QDomElement root, QString uid="")=0

virtual QString	getType () const =0

virtual QString	getName () const =0

virtual QString	getHelp () const =0

virtual std::vector< PropertyPtr >	getOptions ()=0

virtual std::vector < SelectDataStringPropertyBasePtr >	getInputTypes ()=0

virtual std::vector < SelectDataStringPropertyBasePtr >	getOutputTypes ()=0

virtual bool	hasPresets ()=0

virtual PresetsPtr	getPresets ()=0

virtual QDomElement	generatePresetFromCurrentlySetOptions (QString name)=0

virtual void	setActive (bool on)=0

virtual bool	preProcess ()=0

virtual bool	execute ()=0

virtual bool	postProcess ()=0

Detailed Description

Base class for CustusX filters/algorithms

Intended for use in a multithreaded environment.

The methods getHelp(), getName(), getInputTypes(), getOutputTypes(), getOptions() can be used outside of actual filter execution for initialization and gui interaction.

preProcess(), execute() and postProcess() must be called in sequence and together executes the algorithm. They work on a copy of the input data (the input volumes themselved are not copied, only pointers and options).

Date: Nov 16, 2012

Author: christiana

Definition at line 71 of file cxFilter.h.

Constructor & Destructor Documentation

cx::Filter::Filter ( )

Definition at line 38 of file cxFilter.cpp.

virtual cx::Filter::~Filter ( )

inlinevirtual

Definition at line 77 of file cxFilter.h.

Member Function Documentation

void cx::Filter::changed ( )

signal

Signals that the filters internal structures has changed.

virtual bool cx::Filter::execute ( )

pure virtual

Execute filter with the given inputs and produce an output. This method is threadable - can be executed in a secondary thread. Assumes preprocess has been called.

Parameters

input	List of data inputs corresponding to getInputTypes()
settings	Reference to settings file containing algorithm-specific settings

Returns: success.

Implemented in cx::TubeSegmentationFilter, cx::RouteToTargetFilter, cx::BinaryThresholdImageFilter, cx::ContourFilter, cx::LevelSetFilter, cx::BinaryThinningImageFilter3DFilter, cx::SmoothingImageFilter, cx::DummyFilter, cx::ResampleImageFilter, and cx::DilationFilter.

virtual QDomElement cx::Filter::generatePresetFromCurrentlySetOptions ( QString name )

pure virtual

Generates a preset from the filters currently set options.

Implemented in cx::TubeSegmentationFilter, and cx::FilterImpl.

virtual QString cx::Filter::getHelp ( ) const

pure virtual

Return a help text describing algorithm usage.

Implemented in cx::TubeSegmentationFilter, cx::RouteToTargetFilter, cx::BinaryThresholdImageFilter, cx::ContourFilter, cx::LevelSetFilter, cx::BinaryThinningImageFilter3DFilter, cx::ResampleImageFilter, cx::SmoothingImageFilter, cx::DummyFilter, and cx::DilationFilter.

virtual std::vector<SelectDataStringPropertyBasePtr> cx::Filter::getInputTypes ( )

pure virtual

List of input arguments.

Implemented in cx::FilterImpl.

virtual QString cx::Filter::getName ( ) const

pure virtual

Return a descriptive name for this algorithm.

Implemented in cx::TubeSegmentationFilter, cx::RouteToTargetFilter, cx::BinaryThresholdImageFilter, cx::ContourFilter, cx::LevelSetFilter, cx::BinaryThinningImageFilter3DFilter, cx::ResampleImageFilter, cx::SmoothingImageFilter, cx::DummyFilter, and cx::DilationFilter.

virtual std::vector<PropertyPtr> cx::Filter::getOptions ( )

pure virtual

Fill options for this algorithm. The options use the input xml noe from init to fill.

Implemented in cx::FilterImpl.

virtual std::vector<SelectDataStringPropertyBasePtr> cx::Filter::getOutputTypes ( )

pure virtual

Return a help text describing algorithm usage.

Implemented in cx::FilterImpl.

virtual PresetsPtr cx::Filter::getPresets ( )

pure virtual

Returns the filters presets.

Implemented in cx::TubeSegmentationFilter, and cx::FilterImpl.

virtual QString cx::Filter::getType ( ) const

pure virtual

Return the type of this algorithm.

Implemented in cx::TubeSegmentationFilter, cx::RouteToTargetFilter, cx::BinaryThresholdImageFilter, cx::ContourFilter, cx::LevelSetFilter, cx::BinaryThinningImageFilter3DFilter, cx::ResampleImageFilter, cx::SmoothingImageFilter, cx::DummyFilter, and cx::DilationFilter.

virtual QString cx::Filter::getUid ( ) const

pure virtual

Return a unique string for this algorithm.

Implemented in cx::FilterImpl.

virtual bool cx::Filter::hasPresets ( )

pure virtual

Checks wheter the filter has defined a set of presets.

Implemented in cx::TubeSegmentationFilter, and cx::FilterImpl.

virtual void cx::Filter::initialize	(	QDomElement	root,
		QString	uid = `""`
	)

pure virtual

Initialize algorithm Fill options for this algorithm. Input is the root node for this algo, filled with stored settings (if any).

Set uid - if no uid is given, a default based on class name is used.

Implemented in cx::FilterImpl.

virtual bool cx::Filter::postProcess ( )

pure virtual

Perform postprocessing tasks and set result from calculation into the output adapters.

Must be called from the main thread. Assumes execute() has been called.

Returns: success.

Implemented in cx::TubeSegmentationFilter, cx::RouteToTargetFilter, cx::BinaryThresholdImageFilter, cx::ContourFilter, cx::LevelSetFilter, cx::BinaryThinningImageFilter3DFilter, cx::SmoothingImageFilter, cx::DummyFilter, cx::ResampleImageFilter, and cx::DilationFilter.

virtual bool cx::Filter::preProcess ( )

pure virtual

Perform main thread preprocessing. Copies input data from options and the input adapters into thread-safe storage. Assumes getOptions(), getInputTypes(), getOutputTypes() has been called (this initializes options)

Parameters

outputPath is path to data files for current patient.

Returns: success.

Implemented in cx::FilterImpl, cx::BinaryThresholdImageFilter, cx::ContourFilter, cx::LevelSetFilter, cx::BinaryThinningImageFilter3DFilter, and cx::DilationFilter.

virtual void cx::Filter::requestSetPresetSlot ( QString name )

pure virtualslot

Ask the filter to load a preset.

Implemented in cx::TubeSegmentationFilter.

virtual void cx::Filter::setActive ( bool on )

pure virtual

Set Active state. Active filters are used by the ui (or similar) and can interact with the system, for example by showing a preview.

Inactive filters should no interact with the system.

Implemented in cx::FilterImpl, cx::BinaryThresholdImageFilter, cx::ContourFilter, and cx::LevelSetFilter.

The documentation for this class was generated from the following files:

/media/jenkins/slave_fs/ws/osr/TGT/ubuntu.12.04.x64/CX/CX/source/resource/filter/cxFilter.h
/media/jenkins/slave_fs/ws/osr/TGT/ubuntu.12.04.x64/CX/CX/source/resource/filter/cxFilter.cpp
