cx::TimedBaseAlgorithm Class Referenceabstract
Algorithms

Base class for algorithms that wants to time their execution. More...

#include <cxTimedAlgorithm.h>

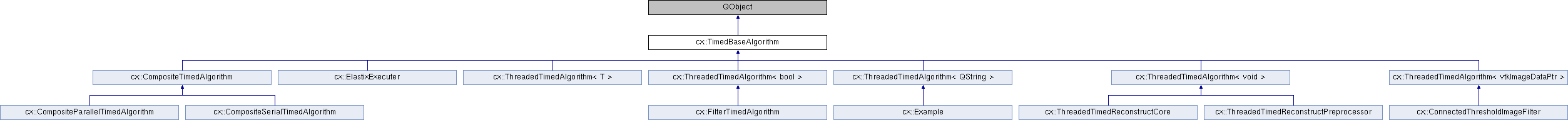

Inheritance diagram for cx::TimedBaseAlgorithm:
cx::CompositeTimedAlgorithm cx::ElastixExecuter cx::ThreadedTimedAlgorithm< T > cx::ThreadedTimedAlgorithm< bool > cx::ThreadedTimedAlgorithm< QString > cx::ThreadedTimedAlgorithm< void > cx::ThreadedTimedAlgorithm< vtkImageDataPtr > cx::CompositeParallelTimedAlgorithm cx::CompositeSerialTimedAlgorithm cx::FilterTimedAlgorithm cx::Example cx::ThreadedTimedReconstructCore cx::ThreadedTimedReconstructPreprocessor cx::ConnectedThresholdImageFilter

Signals

void aboutToStart ()
 emitted at start of execute. Use to perform preprocessing More...

void started (int maxSteps)
 emitted at start of run. More...

void finished ()
 should be emitted when at the end of postProcessingSlot More...

void productChanged ()
 emitted whenever product string has changed More...


Public Member Functions

 TimedBaseAlgorithm (QString product, int secondsBetweenAnnounce)

virtual ~TimedBaseAlgorithm ()

virtual QString getProduct () const

virtual void execute ()=0

virtual bool isFinished () const =0

virtual bool isRunning () const =0


Protected Slots

virtual void finishedSlot ()

virtual void postProcessingSlot ()


Protected Member Functions

void startTiming ()

void stopTiming ()

QString getSecondsPassedAsString () const


Protected Attributes

bool mUseDefaultMessages


Detailed Description

Base class for algorithms that wants to time their execution.

Date
Feb 16, 2011
Author
Janne Beate Bakeng, SINTEF

Definition at line 61 of file cxTimedAlgorithm.h.

Constructor & Destructor Documentation

cx::TimedBaseAlgorithm::TimedBaseAlgorithm ( QString  product,
int  secondsBetweenAnnounce
)

Definition at line 46 of file cxTimedAlgorithm.cpp.

cx::TimedBaseAlgorithm::~TimedBaseAlgorithm ( )
virtual

Definition at line 56 of file cxTimedAlgorithm.cpp.

Member Function Documentation

void cx::TimedBaseAlgorithm::aboutToStart ( )
signal

emitted at start of execute. Use to perform preprocessing

virtual void cx::TimedBaseAlgorithm::execute ( )
pure virtual

Execute the algorithm. Parts of the execution can be in another thread, thus the call usually returns after preprocessing is complete. The exec starts by emitting aboutToStart(), which can be used by callers to set input arguments.

Implemented in cx::CompositeParallelTimedAlgorithm, cx::ElastixExecuter, cx::CompositeSerialTimedAlgorithm, cx::ThreadedTimedAlgorithm< T >, cx::ThreadedTimedAlgorithm< QString >, cx::ThreadedTimedAlgorithm< void >, cx::ThreadedTimedAlgorithm< vtkImageDataPtr >, cx::ThreadedTimedAlgorithm< bool >, and cx::ConnectedThresholdImageFilter.

void cx::TimedBaseAlgorithm::finished ( )
signal

should be emitted when at the end of postProcessingSlot

virtual void cx::TimedBaseAlgorithm::finishedSlot ( )
inlineprotectedvirtualslot

Definition at line 102 of file cxTimedAlgorithm.h.

virtual QString cx::TimedBaseAlgorithm::getProduct ( ) const
inlinevirtual

Reimplemented in cx::CompositeParallelTimedAlgorithm, and cx::CompositeSerialTimedAlgorithm.

Definition at line 69 of file cxTimedAlgorithm.h.

QString cx::TimedBaseAlgorithm::getSecondsPassedAsString ( ) const
protected

Definition at line 82 of file cxTimedAlgorithm.cpp.

virtual bool cx::TimedBaseAlgorithm::isFinished ( ) const
pure virtual

Returns true after the finished() signal is emitted.

Implemented in cx::CompositeParallelTimedAlgorithm, cx::ElastixExecuter, cx::CompositeSerialTimedAlgorithm, cx::ThreadedTimedAlgorithm< T >, cx::ThreadedTimedAlgorithm< QString >, cx::ThreadedTimedAlgorithm< void >, cx::ThreadedTimedAlgorithm< vtkImageDataPtr >, and cx::ThreadedTimedAlgorithm< bool >.

virtual bool cx::TimedBaseAlgorithm::isRunning ( ) const
pure virtual

Returns true if preprocess is started and postprocess not complete. (Right after aboutToStart, right before finished())

Implemented in cx::CompositeParallelTimedAlgorithm, cx::ElastixExecuter, cx::CompositeSerialTimedAlgorithm, cx::ThreadedTimedAlgorithm< T >, cx::ThreadedTimedAlgorithm< QString >, cx::ThreadedTimedAlgorithm< void >, cx::ThreadedTimedAlgorithm< vtkImageDataPtr >, and cx::ThreadedTimedAlgorithm< bool >.

virtual void cx::TimedBaseAlgorithm::postProcessingSlot ( )
inlineprotectedvirtualslot

Reimplemented in cx::ThreadedTimedAlgorithm< T >, cx::ThreadedTimedAlgorithm< QString >, cx::ThreadedTimedAlgorithm< void >, cx::ThreadedTimedAlgorithm< vtkImageDataPtr >, and cx::ThreadedTimedAlgorithm< bool >.

Definition at line 103 of file cxTimedAlgorithm.h.

void cx::TimedBaseAlgorithm::productChanged ( )
signal

emitted whenever product string has changed

void cx::TimedBaseAlgorithm::started ( int  maxSteps)
signal

emitted at start of run.

Parameters
maxStepsis an input to a QProgressBar, set to zero if unknown.
void cx::TimedBaseAlgorithm::startTiming ( )
protected

Definition at line 59 of file cxTimedAlgorithm.cpp.

void cx::TimedBaseAlgorithm::stopTiming ( )
protected

Definition at line 67 of file cxTimedAlgorithm.cpp.

Member Data Documentation

bool cx::TimedBaseAlgorithm::mUseDefaultMessages
protected

Definition at line 97 of file cxTimedAlgorithm.h.

The documentation for this class was generated from the following files:
